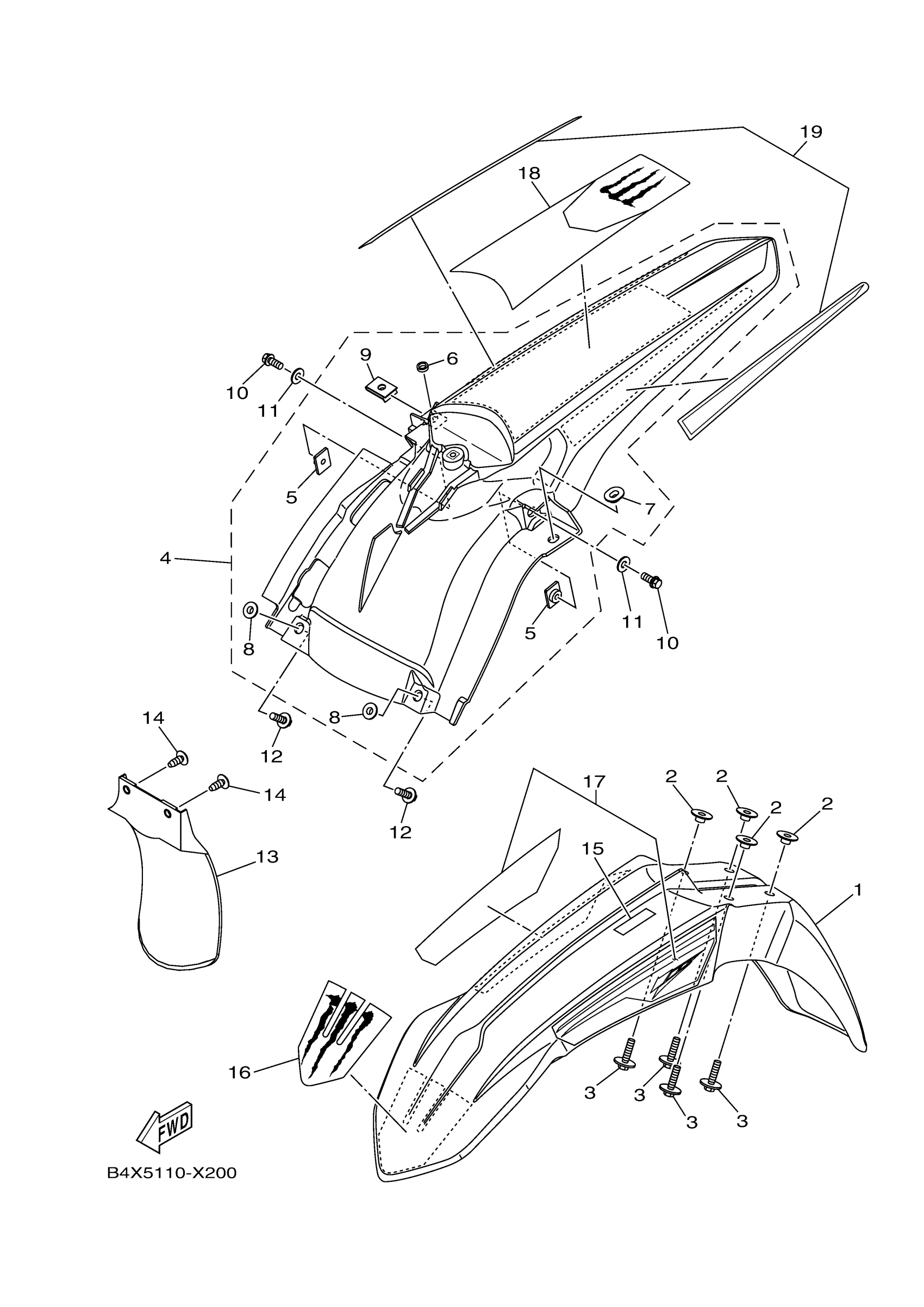

Yamaha YZ125N2ME (YZ125 MONSTER) B4X5 2022 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BR9-21511-30-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, WITH WASHER

90119-06268-00

$2.28

4

REAR FENDER COMP

B4X-21610-11-00

$38.99

5

NUT, REAR FENDER

5XE-21635-10-00

$13.49

6

COLLAR

90387-06069-00

Unavailable

7

COLLAR

17D-14449-00-00

$7.99

8

COLLAR

90387-06009-00

$10.49

9

NUT, SPRING

90183-060A7-00

$8.49

10

BOLT, FLANGE

90105-06100-00

$7.49

11

WASHER, PLATE

90201-06032-00

$8.49

12

BOLT, WITH WASHER

90119-06149-00

$8.49

13

GUARD, FLAP

5TA-21642-00-00

$39.99

14

SCREW, TAPPING

97702-60016-00

$2.19

15

LABEL, CAUTION

3XJ-2415E-A1-00

$4.84

16

EMBLEM

B2W-21578-00-00

Unavailable

17

GRAPHIC SET 1

B2W-2159A-00-00

Unavailable

18

GRAPHIC, 1

BCR-2165C-00-00

Unavailable

19

GRAPHIC SET

BCR-2167A-00-00

Unavailable
