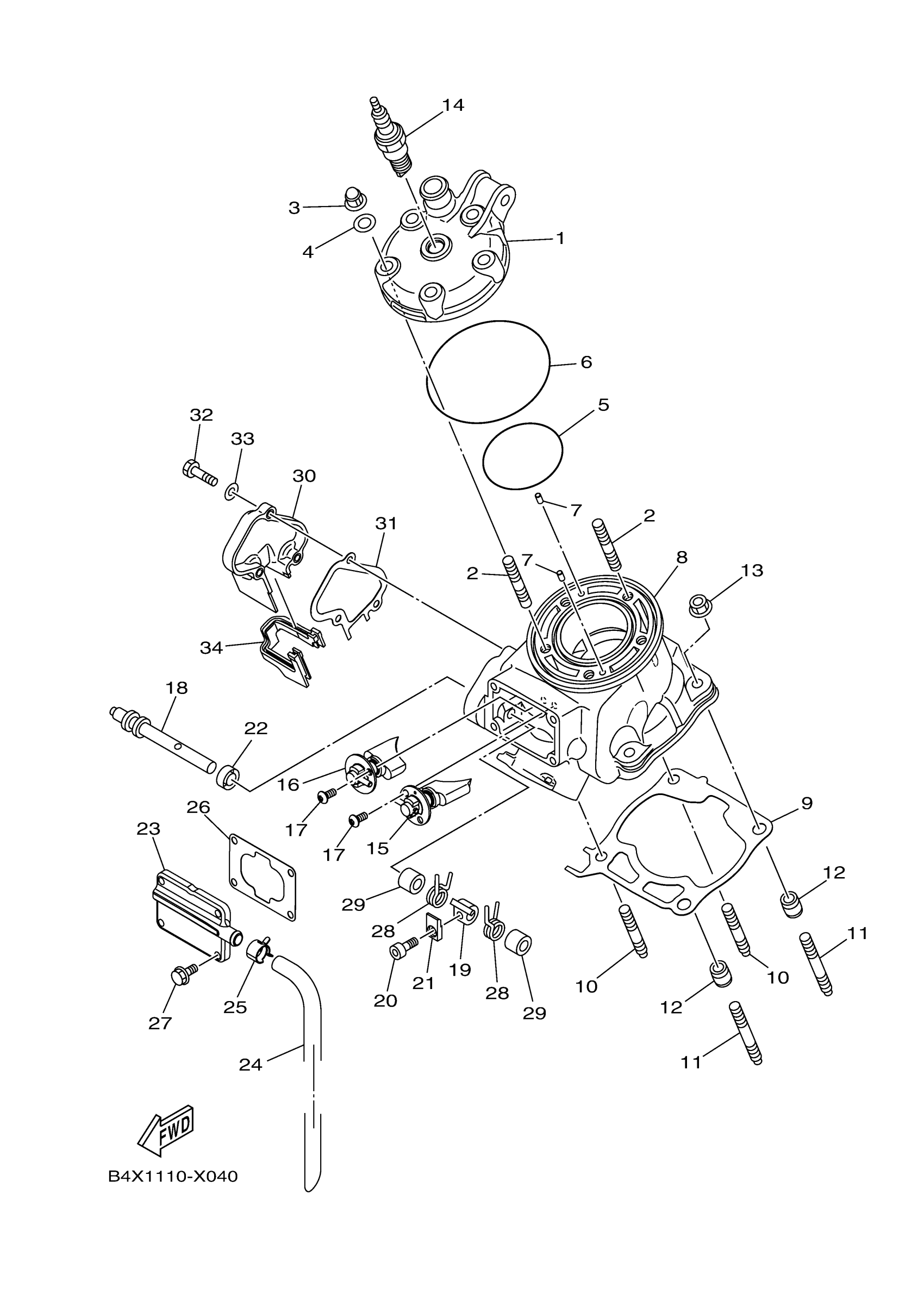

Yamaha YZ125N2ME (YZ125 MONSTER) B4X5 2022 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

B4X-11111-00-00

$216.99

2

BOLT, STUD

90116-08027-00

$9.49

3

NUT, CROWN

90176-08005-00

$2.22

4

WASHER, PLATE

90201-080L8-00

$4.41

5

O-RING (4U8)

93210-63442-00

$7.49

6

O-RING(3LD)

93210-90785-00

$11.49

7

PIN, DOWEL (278)

93604-08071-00

$8.49

8

CYLINDER 1

B4X-11311-01-00

$747.99

9

GASKET, CYLINDER

B4X-11351-00-00

$21.99

10

BOLT, STUD

90116-08031-00

$9.49

11

BOLT, STUD

90116-08028-00

$8.49

12

PIN, DOWEL

99590-10114-00

Unavailable

13

NUT

90179-08019-00

$7.49

14

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

Unavailable

15

VALVE ASSY

B4X-1131D-00-00

$208.99

16

VALVE ASSY 2

B4X-1132D-00-00

Unavailable

17

SCREW

90149-05001-00

Unavailable

18

SHAFT 1

5HD-1131V-00-00

Unavailable

19

LEVER, LINK

4SS-11832-00-00

Unavailable

20

BOLT, SOCKET

91317-04010-00

Unavailable

21

HOLDER

5UN-11395-00-00

Unavailable

22

OIL SEAL (8X12X3-371)

93104-08040-00

Unavailable

23

COVER

B4X-1131M-00-00

Unavailable

24

PIPE, BREATHER 1

4JY-11166-00-00

Unavailable

25

CLIP(MG5)

90467-14117-00

Unavailable

26

GASKET

1C3-11354-00-00

Unavailable

27

BOLT, WITH WASHER

90119-05008-00

Unavailable

28

SPRING, TORSION

90508-16134-00

Unavailable

29

COLLAR (7G5)

90387-08785-00

Unavailable

30

HOUSING 2

B4X-11992-00-00

Unavailable

31

GASKET

B4X-11993-00-00

Unavailable

32

BOLT(3JK)

97027-05020-00

Unavailable

33

WASHER, PLAIN (646)

92990-05600-00

Unavailable

34

SEAL, HOUSING

B4X-11995-00-00

Unavailable
