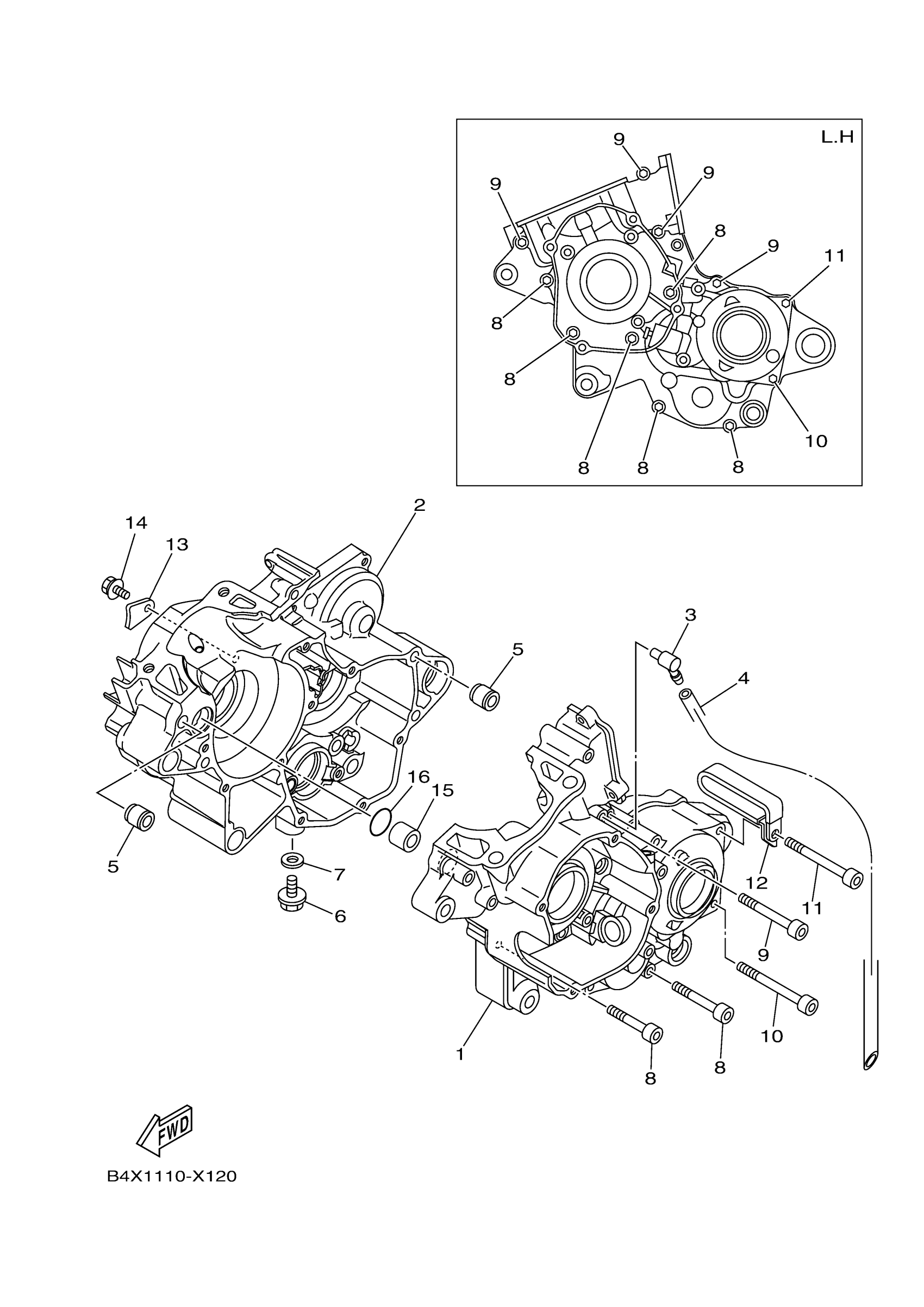

Yamaha YZ125N2ME (YZ125 MONSTER) B4X5 2022 CRANKCASE Diagram

Description

Price

CRANKCASE 1

B4X-15111-00-00

$498.99

CRANKCASE 2

B4X-15121-00-00

$512.99

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

HOSE (L1500)

90445-084J0-00

$18.99

PIN, DOWEL(2VG)

99530-10116-00

$4.25

BOLT, FLANGE DEEP RECESS

95E32-10016-00

$1.49

GASKET

90430-10188-00

$6.99

BOLT

91312-06045-00

$4.08

TORNILLO ALLEN

91312-06055-00

$5.60

BOLT, SOCKET

91317-06065-00

$3.76

BOLT

91312-06075-00

$4.88

CLAMP(4NX)

90461-10136-00

$23.99

HOLDER

4V4-15118-00-00

$29.99

BOLT, FLANGE

95817-06012-00

$1.43

PIN, DOWEL

99590-17016-00

$7.49

O-RING (1J7)

93210-16314-00

Unavailable
