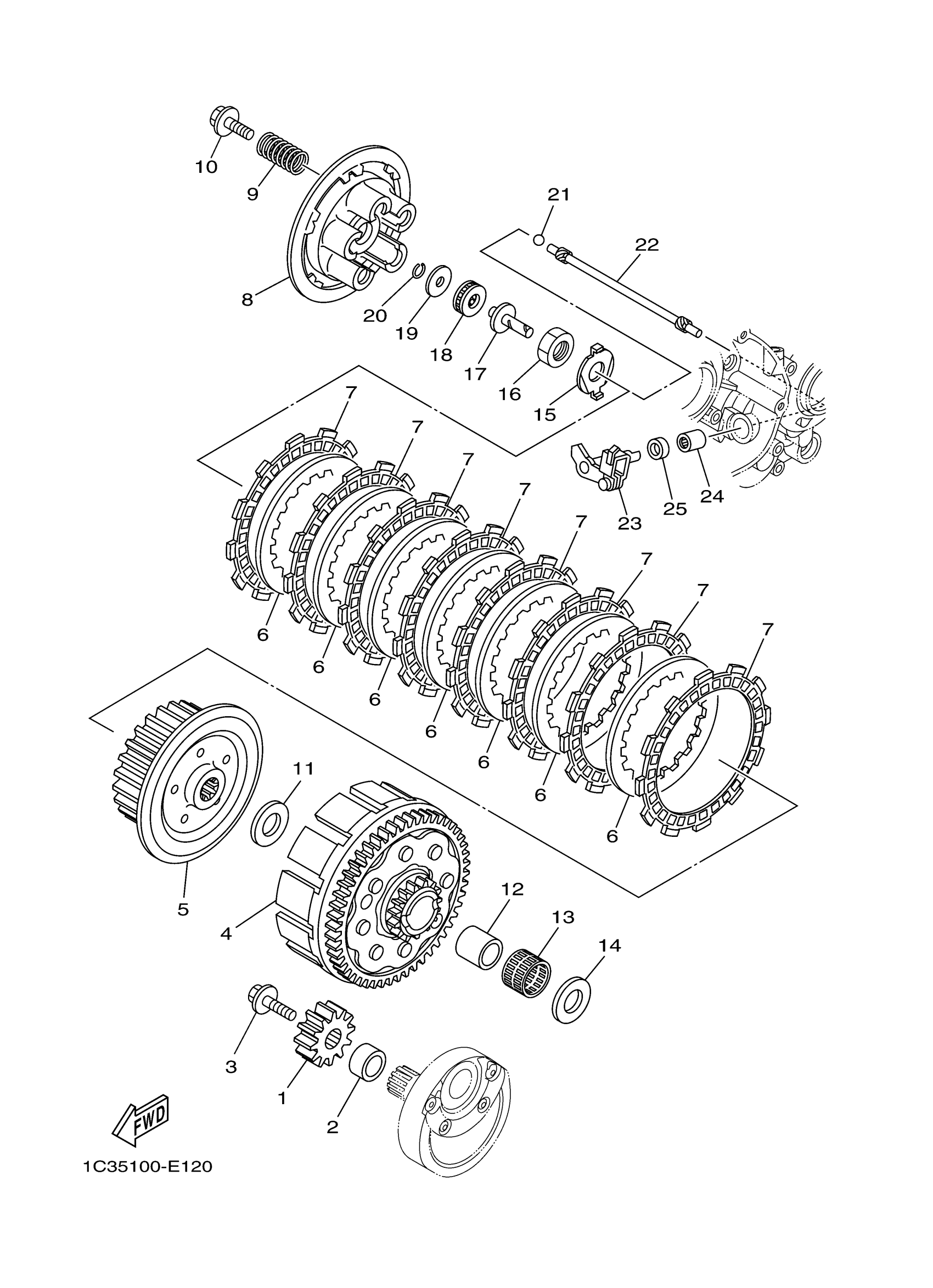

Yamaha YZ125N2ME (YZ125 MONSTER) B4X5 2022 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1C3-16111-00-00

$52.21

2

COLLAR(3DL)

90387-172K2-00

$18.24

3

BOLT, FLANGE

90105-08071-00

$4.03

4

PRIMARY DRIVEN GEAR COMP.(74T)

1C3-16150-00-00

$246.74

5

BOSS, CLUTCH

5NY-16371-00-00

$74.63

6

PLATE, CLUTCH 1

3XJ-16324-10-00

$11.44

7

PLATE, FRICTION

3XJ-16321-00-00

$18.52

8

PLATE, PRESSURE 1

5HD-16351-00-00

$43.71

9

SPRING (583 CLUTCH)

90501-23391-00

$5.30

10

SCREW, WITH WASHER (1W4)

90159-06016-00

$2.61

11

WASHER, PLATE(1HX)

90201-204K8-00

$6.81

12

SPACER 1

1C3-16181-00-00

$17.58

13

BEARING

93310-22539-00

$32.13

14

WASHER, PLATE(1HX)

90201-204K8-00

$6.81

15

WASHER, LOCK(4KB)

90215-16289-00

$5.72

16

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

17

ROD, PUSH 1

5NL-16356-00-00

Unavailable

18

BEARING, THRUST(3AY)

93340-21008-00

Unavailable

19

WASHER, PLATE (24Y)

90201-080H1-00

Unavailable

20

CIRCLIP

93440-07182-00

Unavailable

21

BALL (498)

93511-32027-00

Unavailable

22

ROD, PUSH 2

B4X-16357-00-00

Unavailable

23

PUSH LEVER ASSY

1C3-16380-00-00

Unavailable

24

BEARING, CYLINDRICAL(50M)

93315-11040-00

Unavailable

25

OIL SEAL

93102-10008-00

Unavailable
