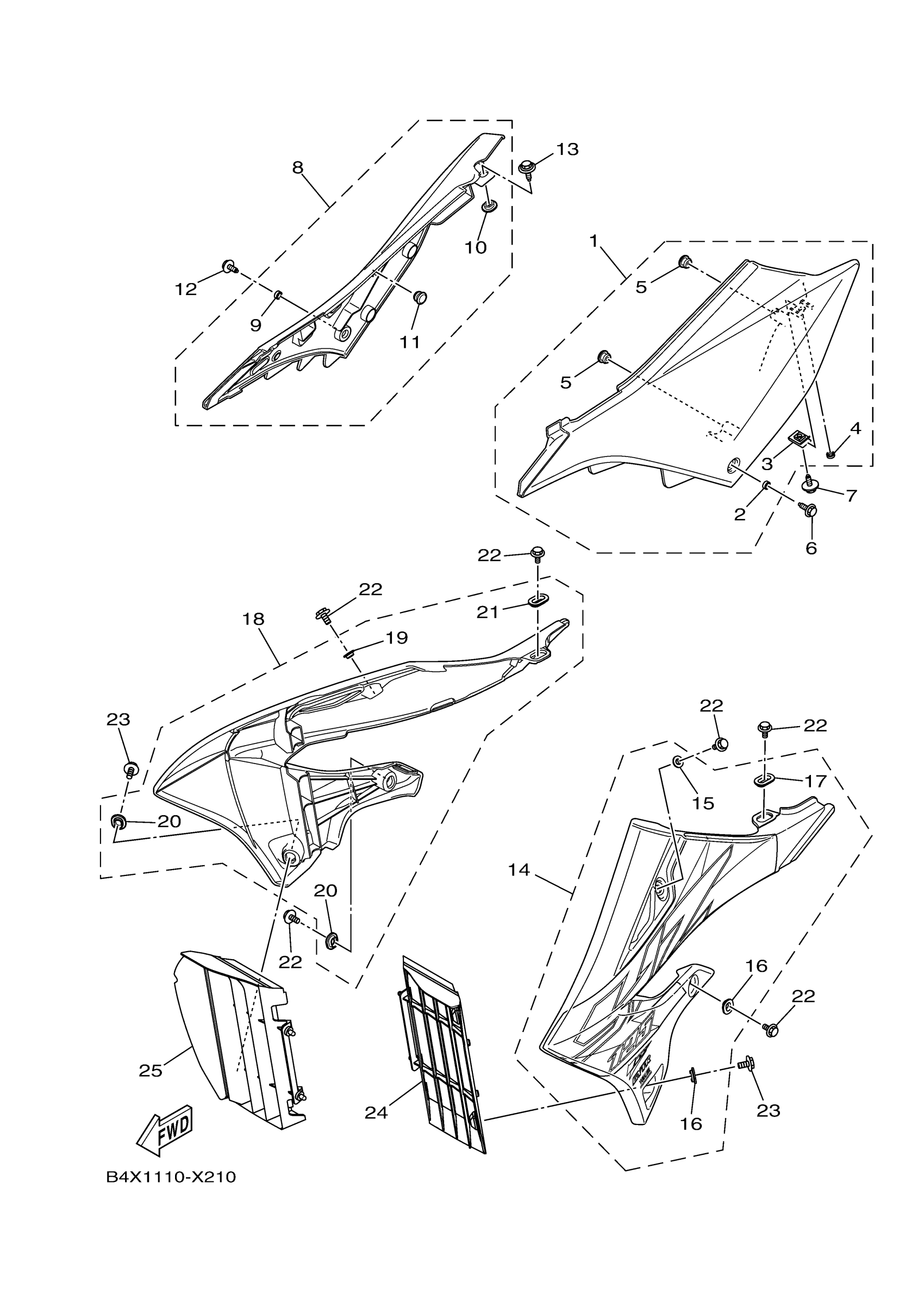

Yamaha YZ125N2L (YZ125) B4X1 2022 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

BCR-21710-00-00

$32.99

2

COLLAR

90387-07015-00

$2.17

3

NUT, SPRING

90183-060A7-00

$8.49

4

COLLAR

90387-06069-00

Unavailable

5

GROMMET (397)

90480-10068-00

$8.49

6

BOLT, FLANGE

90105-06178-00

$4.88

7

BOLT, WITH WASHER

90119-06322-00

$3.23

8

SIDE COVER ASSY 2

BCR-21720-00-00

$32.99

9

COLLAR

90387-07015-00

$2.17

10

COLLAR

17D-14449-00-00

$7.99

11

GROMMET (397)

90480-10068-00

$8.49

12

BOLT, FLANGE

90105-06178-00

$4.88

13

BOLT, WITH WASHER

90119-06322-00

$3.23

14

SIDE COVER INSERT

B4X-217R0-G0-00

$101.99

14

SIDE COVER ASSY 3

BCR-21730-00-00

$32.99

15

COLLAR

90387-06009-00

Unavailable

16

COLLAR

5TA-21749-00-00

Unavailable

17

COLLAR

1SL-21748-00-00

Unavailable

18

SIDE COVER INSERT

B4X-217S0-G0-00

Unavailable

18

SIDE COVER ASSY 4

BCR-21740-00-00

Unavailable

19

COLLAR

90387-06009-00

Unavailable

20

COLLAR

5TA-21749-00-00

Unavailable

21

COLLAR

1SL-21748-00-00

Unavailable

22

BOLT, FLANGE

90105-06064-00

Unavailable

23

BOLT, WITH WASHER

90119-06166-00

Unavailable

24

PANEL 1

BCR-2172A-00-00

Unavailable

25

PANEL 2

BCR-2172F-00-00

Unavailable
