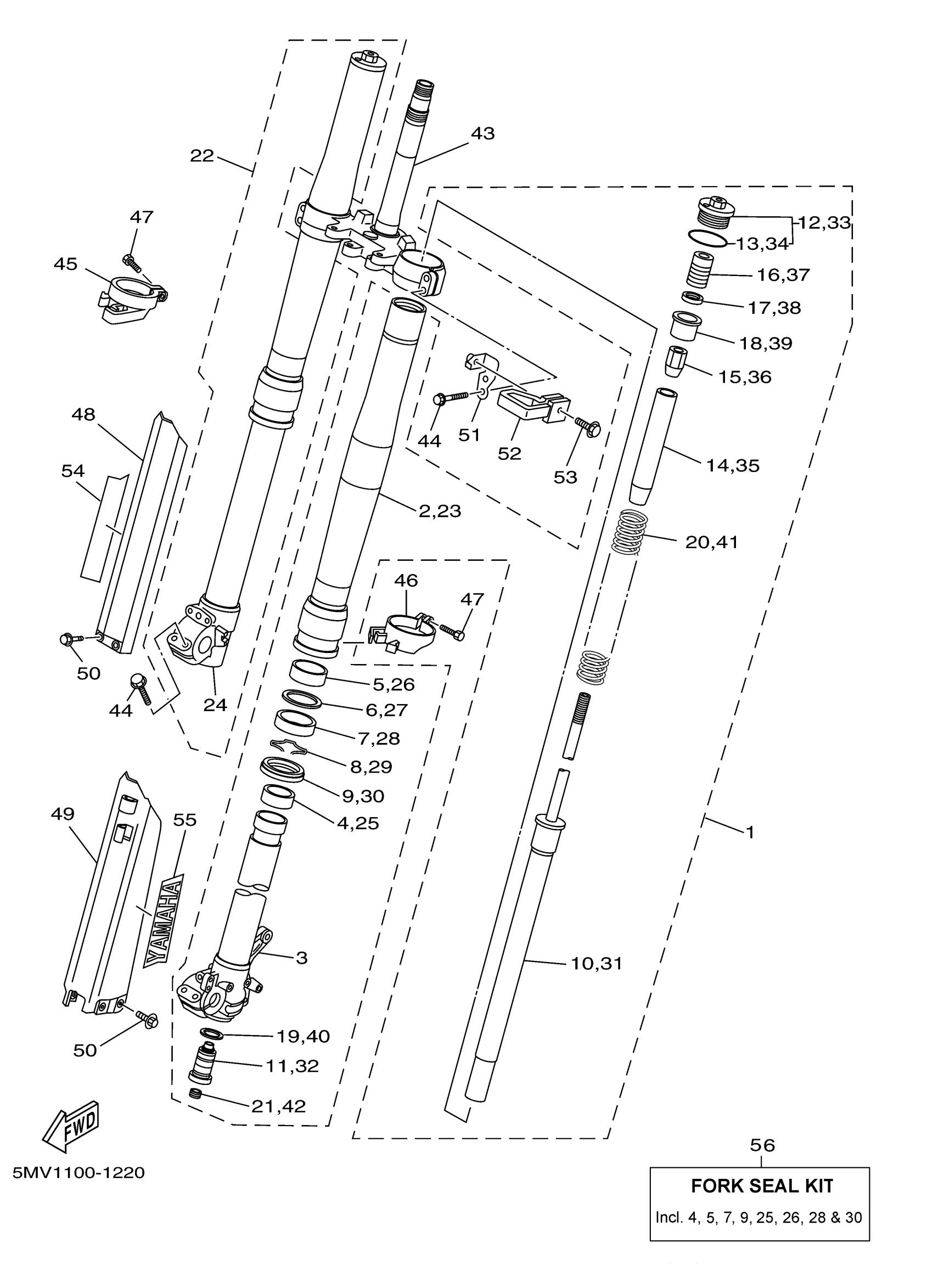

Yamaha YZ125N1 (YZ125) 5MV1 2001 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5MV-23102-00-00

Unavailable

2

. TUBE, OUTER (RIGHT)

5HD-23136-L0-00

Unavailable

3

. INNER TUBE COMP 2

5DH-23120-L0-00

Unavailable

4

PISTON, FRONT FORK

5ET-23171-L0-00

$21.99

5

METAL, SLIDE 1

5ET-23125-L0-00

$35.99

6

WASHER, OIL SEAL

4SS-23146-L0-00

$7.99

7

OIL SEAL

5UN-23145-L0-00

$22.99

7

OIL SEAL

5UN-23145-L0-00

$22.99

8

RING, SNAP

4SS-23153-L0-00

$7.99

9

SEAL, DUST

5HD-23144-L0-00

$30.99

10

. CYLINDER COMP, FRONT FORK

5MV-23170-L0-00

Unavailable

11

. VALVE COMP

5MV-2316A-L0-00

Unavailable

12

. BOLT, CAP

5MV-23111-L0-00

Unavailable

13

O-RING (483MXS)

93210-42263-00

Unavailable

14

SEAT, SPRING UPPER

5DH-23142-L0-00

$37.99

15

. NUT, SPECIAL

5HD-23393-L0-00

Unavailable

16

RUBBER

5MV-23195-L0-00

Unavailable

17

WASHER, SPRING UPPER

5DH-23149-L0-00

Unavailable

18

. SPACER

5DH-23118-L0-00

Unavailable

19

GASKET

4SS-23158-L0-00

Unavailable

20

SPRING (K=4.02N/MM)

4SS-23141-40-00

Unavailable

21

PLUG

3JD-2312G-L0-00

Unavailable

22

FRONT FORK ASSY (R.H)

5MV-23103-00-00

Unavailable

23

. TUBE, OUTER (RIGHT)

5HD-23136-L0-00

Unavailable

24

INNER TUBE COMP.1

5BF-23110-L0-00

Unavailable

25

PISTON, FRONT FORK

5ET-23171-L0-00

$21.99

26

METAL, SLIDE 1

5ET-23125-L0-00

$35.99

27

WASHER, OIL SEAL

4SS-23146-L0-00

$7.99

27

OIL SEAL

5UN-23145-L0-00

$22.99

28

OIL SEAL

5UN-23145-L0-00

$22.99

29

RING, SNAP

4SS-23153-L0-00

$7.99

30

SEAL, DUST

5HD-23144-L0-00

$30.99

31

. CYLINDER COMP, FRONT FORK

5MV-23170-L0-00

Unavailable

32

. VALVE COMP

5MV-2316A-L0-00

Unavailable

33

. BOLT, CAP

5MV-23111-L0-00

Unavailable

34

O-RING (483MXS)

93210-42263-00

Unavailable

35

SEAT, SPRING UPPER

5DH-23142-L0-00

$37.99

36

. NUT, SPECIAL

5HD-23393-L0-00

Unavailable

37

RUBBER

5MV-23195-L0-00

Unavailable

38

WASHER, SPRING UPPER

5DH-23149-L0-00

Unavailable

39

. SPACER

5DH-23118-L0-00

Unavailable

40

GASKET

4SS-23158-L0-00

Unavailable

41

SPRING (K=4.02N/MM)

4SS-23141-40-00

Unavailable

42

PLUG

3JD-2312G-L0-00

Unavailable

43

UNDER BRACKET COMP.

5DH-23340-M0-00

Unavailable

44

BOLT 1

5MV-23346-L0-00

Unavailable

45

PROTECTER GUIDE COMP., 2

4SS-2314G-L0-00

Unavailable

46

PROTECTER GUIDE COMP., 1

5DH-2314F-L0-00

Unavailable

47

BOLT 1

4SS-23346-L0-00

Unavailable

48

PROTECTER COMP., 2

5DH-2314J-00-00

Unavailable

49

PROTECTER COMP., 1

5DH-2314H-00-00

Unavailable

50

BOLT 2

3SP-23356-L0-00

Unavailable

51

GUIDE, CABLE

4EW-2331E-L1-00

Unavailable

52

GUIDE, CABLE

4DA-23389-00-00

Unavailable

53

BOLT, WITH WASHER

90119-05071-00

Unavailable

54

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

55

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

56

FORK SEAL KIT (TWO FORKS)

5ET-W003B-00-00

Unavailable
