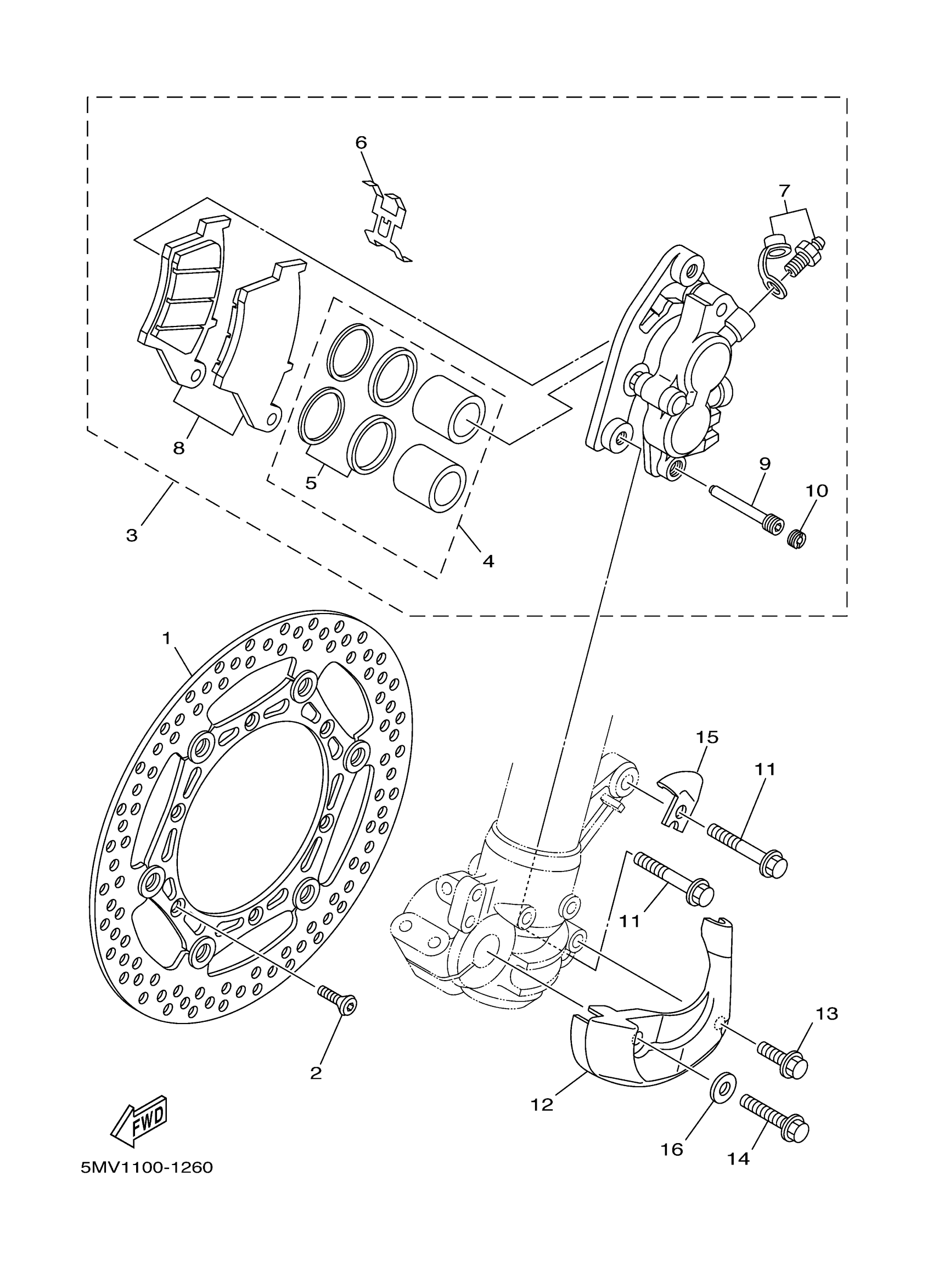

Yamaha YZ125N1 (YZ125) 5MV1 2001 FRONT BRAKE CALIPER Diagram

Description

Price

DISC BRAKE ASSY

5MV-2581T-00-00

$201.99

SCREW, COUNTERSUNK

90151-06080-00

$2.18

CALIPER ASSY (LEFT)

5MV-2580T-00-00

Unavailable

PISTON ASSY, CALIPER

4EW-W0057-00-00

Unavailable

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

SUPPORT, PAD

5DH-25919-00-00

$20.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT

5DH-W0045-10-00

$41.99

PIN, PAD

5DH-25933-00-00

$22.99

PLUG

5DH-25916-00-00

$9.99

BOLT, FLANGE

95817-08035-00

$9.49

COVER, HOSE

5DH-2314E-00-00

$37.99

BOLT, FLANGE

95817-06012-00

$1.43

BOLT, SMALL FLANGE

95027-08020-00

$8.49

HOLDER, BRAKE HOSE 1

5DH-25875-00-00

Unavailable

WASHER(6TC)

92907-08200-00

Unavailable
