Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

FENDER, REAR

5BE-21611-10-00

$59.99

6

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

7

BOLT, SMALL FLANGE

95027-06030-00

$3.98

8

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

9

NUT, SPRING (26H)

90183-06023-00

$9.49

10

COLLAR(4EW)

90387-0701A-00

$9.49

11

GUARD, FLAP

5BE-21642-00-00

$45.99

12

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

13

COLLAR

90387-06009-00

$10.49

14

SCREW, TRUSS TAP.

97707-60016-00

$1.70

15

WASHER, PLATE

90201-06557-00

$3.30

16

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

17

EMBLEM 1

5MV-21781-00-00

Unavailable

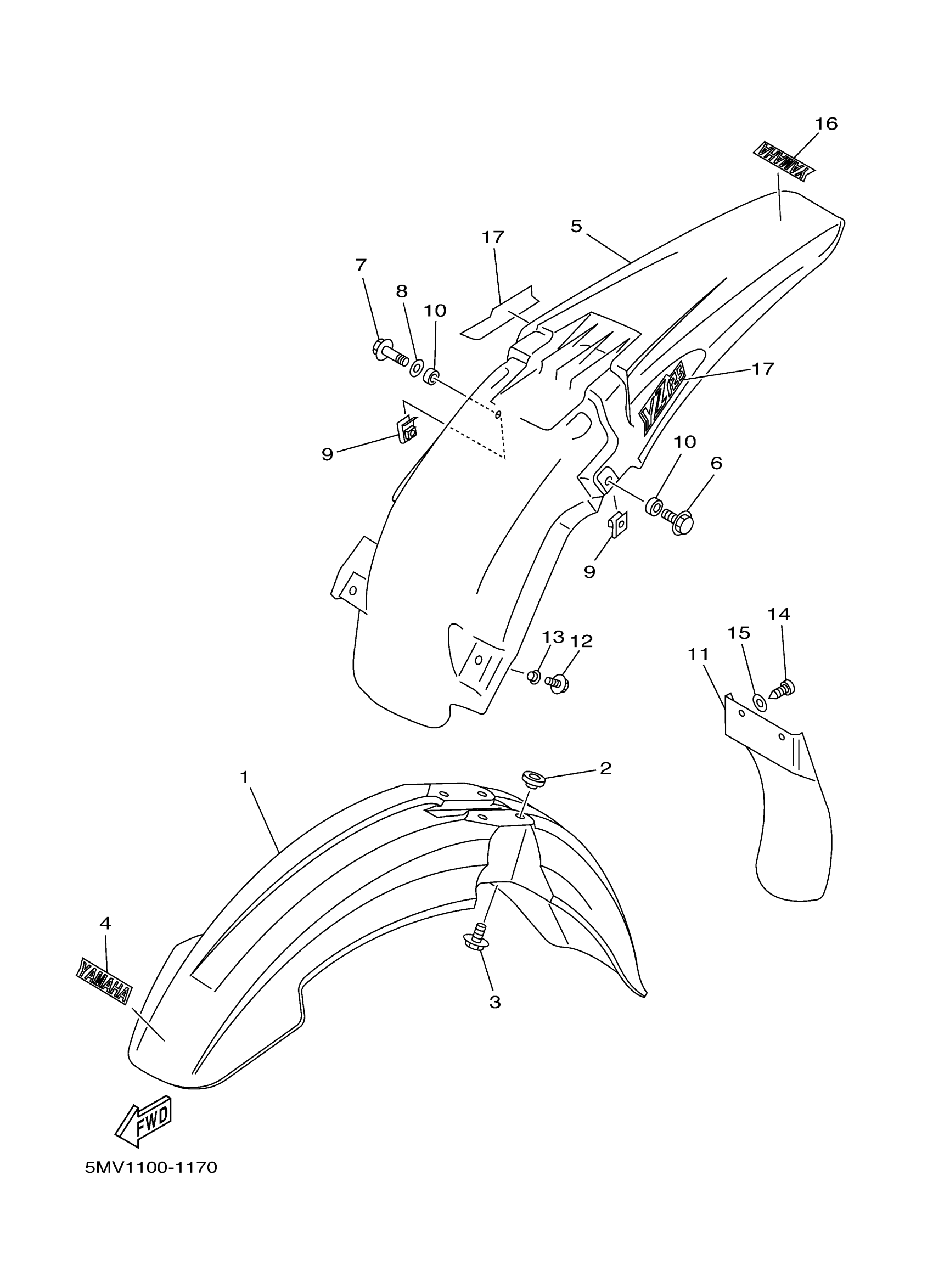

Yamaha YZ125N1 (YZ125) 5MV1 2001 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM YAMAHA

FENDER, REAR

BOLT, WITH WASHER(3RB)

BOLT, SMALL FLANGE

WASHER, PLATE(36Y)

NUT, SPRING (26H)

COLLAR(4EW)

GUARD, FLAP

BOLT, WITH WASHER(4JX)

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM YAMAHA

EMBLEM 1
