Description

Price

1

CRANKSHAFT ASSY

5MV-11400-00-00

$617.99

2

. CRANKSHAFT

5MV-11410-00-00

Unavailable

3

. CRANKSHAFT

5MV-11420-00-00

Unavailable

4

ROD, CONNECTING

5MV-11651-00-00

Unavailable

5

PIN, CRANK 1

3JD-11681-10-00

$68.99

6

WASHER (164-11685-00)

90209-22071-00

Unavailable

7

BEARING

93310-52238-00

$74.99

8

PISTON (STD)

4XM-11631-30-A0

Unavailable

8

PISTON (STD)

4XM-11631-30-B0

$148.99

8

PISTON (STD)

4XM-11631-30-C0

Unavailable

8

PISTON (STD)

4XM-11631-30-D0

$163.99

9

RING, PISTON

4JY-11611-00-00

Unavailable

10

PIN, PISTON

4XM-11633-10-00

$34.99

11

CIRCLIP (4G0)

93450-16068-00

$7.49

12

BEARING

93310-21510-00

$33.99

13

BEARING(1LX)

93306-37204-00

Unavailable

14

OIL SEAL

93102-20485-00

Unavailable

15

OIL SEAL

93102-30008-00

Unavailable

16

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

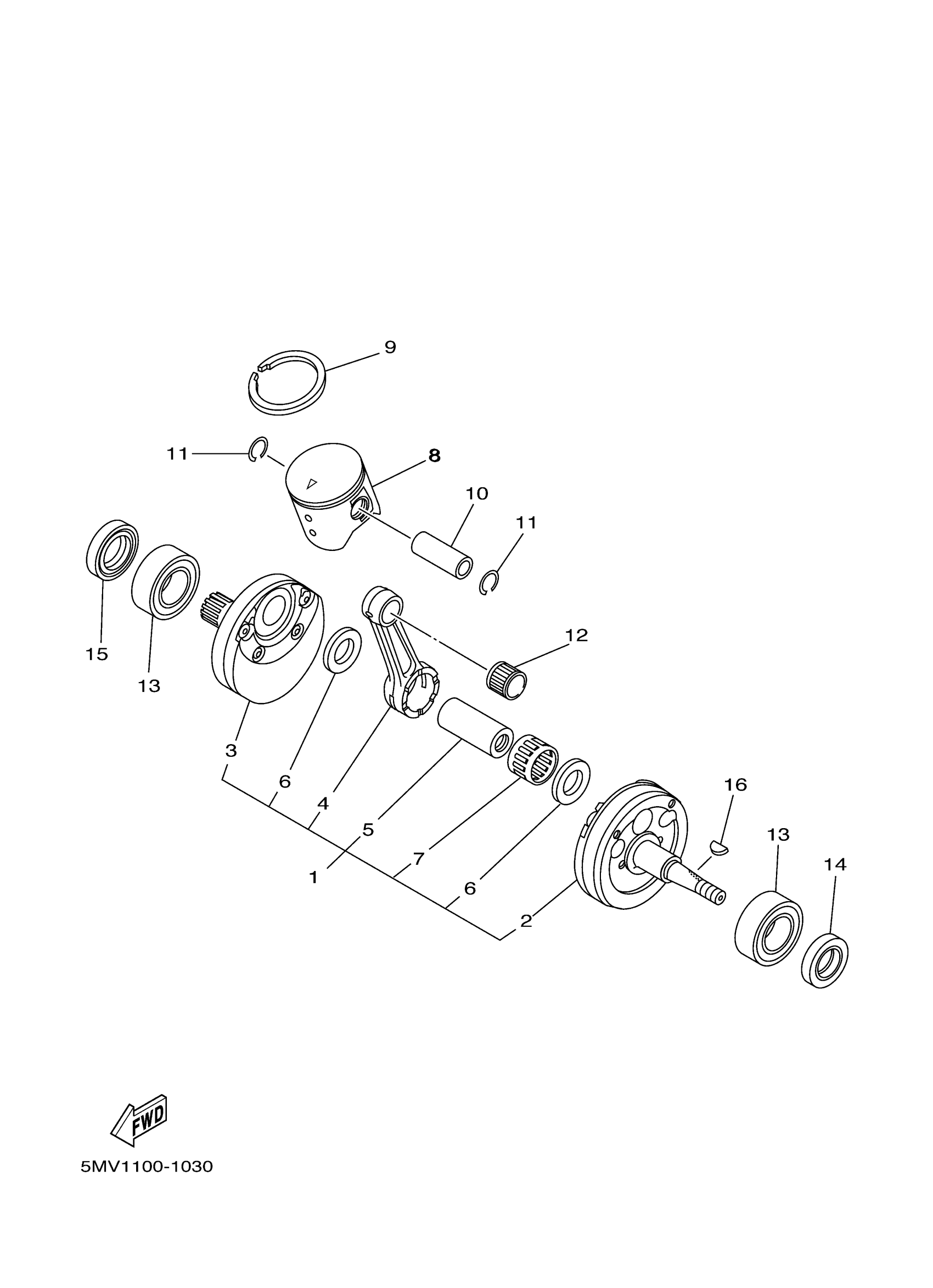

Yamaha YZ125N1 (YZ125) 5MV1 2001 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

. CRANKSHAFT

. CRANKSHAFT

ROD, CONNECTING

PIN, CRANK 1

WASHER (164-11685-00)

BEARING

PISTON (STD)

PISTON (STD)

PISTON (STD)

PISTON (STD)

RING, PISTON

PIN, PISTON

CIRCLIP (4G0)

BEARING

BEARING(1LX)

OIL SEAL

OIL SEAL

KEY WOODRUFF 146115450000
