Description

Price

1

GEAR, PRIMARY DRIVE

3XJ-16111-00-00

Unavailable

2

COLLAR

90387-20007-00

Unavailable

3

BOLT, WASHER BASED(1TX)

90105-10445-00

$11.49

4

PRIMARY DRIVEN GEAR COMP.

5NY-16150-00-00

$462.99

5

BOSS, CLUTCH

5NY-16371-00-00

$88.99

6

PLATE, CLUTCH 1

3XJ-16324-10-00

$13.49

7

PLATE, FRICTION

5DH-16321-00-00

$25.99

8

PLATE, PRESSURE 1

5HD-16351-00-00

$53.99

9

SPRING, COMPRESSION (4H7)

90501-23598-00

$7.49

10

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

11

ROD, PUSH 1

3SB-16356-10-00

Unavailable

12

BEARING, THRUST(3AY)

93340-21008-00

$29.99

13

PLATE, FRICTION

3XJ-16321-00-00

$22.99

14

WASHER, PLATE(1HX)

90201-204K8-00

$10.49

15

SPACER 1

3XJ-16181-00-00

Unavailable

16

BEARING, CYLINDRICAL(51Y)

93310-225N0-00

Unavailable

17

WASHER, PLATE(1HX)

90201-204K8-00

$10.49

18

WASHER, LOCK(4KB)

90215-16289-00

Unavailable

19

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

20

AXLE, PUSH LEVER

4EX-16382-10-00

Unavailable

21

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable

23

OIL SEAL (4G0)

93102-12224-00

Unavailable

24

SPRING, TORSION(4XM)

90508-141B4-00

Unavailable

25

PUSH LEVER ASSY

4XV-16340-01-00

Unavailable

26

WASHER PLATE (3L6)

90201-08759-00

Unavailable

27

CIRCLIP

93430-08053-00

Unavailable

28

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

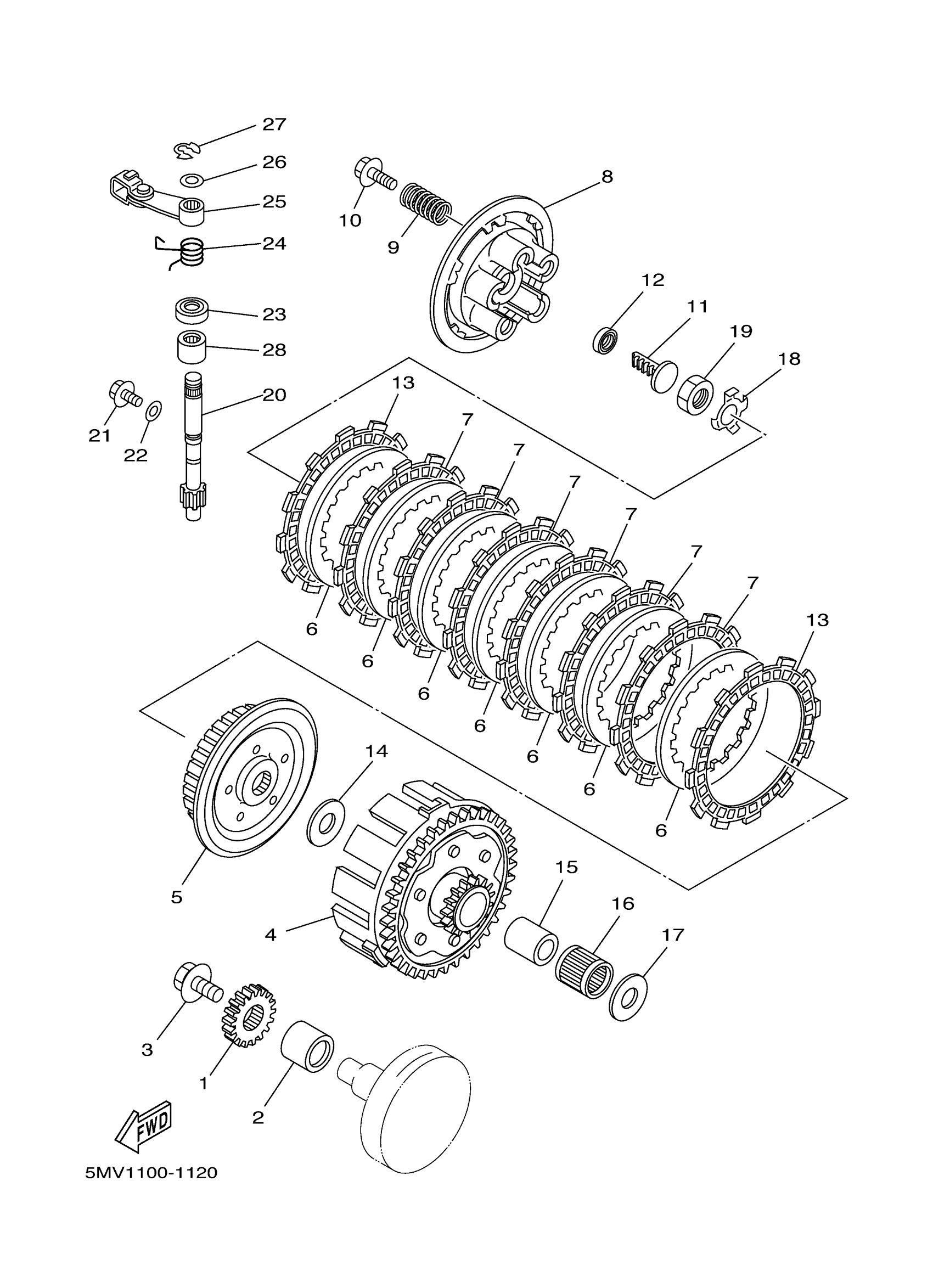

Yamaha YZ125N1 (YZ125) 5MV1 2001 CLUTCH Diagram

GEAR, PRIMARY DRIVE

COLLAR

BOLT, WASHER BASED(1TX)

PRIMARY DRIVEN GEAR COMP.

BOSS, CLUTCH

PLATE, CLUTCH 1

PLATE, FRICTION

PLATE, PRESSURE 1

SPRING, COMPRESSION (4H7)

SCREW, WITH WASHER (1W4)

ROD, PUSH 1

BEARING, THRUST(3AY)

PLATE, FRICTION

WASHER, PLATE(1HX)

SPACER 1

BEARING, CYLINDRICAL(51Y)

WASHER, PLATE(1HX)

WASHER, LOCK(4KB)

NUT, HEXAGON (30X)

AXLE, PUSH LEVER

BOLT (583 TACHOMETER)

GASKET 256113960000

OIL SEAL (4G0)

SPRING, TORSION(4XM)

PUSH LEVER ASSY

WASHER PLATE (3L6)

CIRCLIP

BRG,CYL-CAL ROLLER 6G TM
