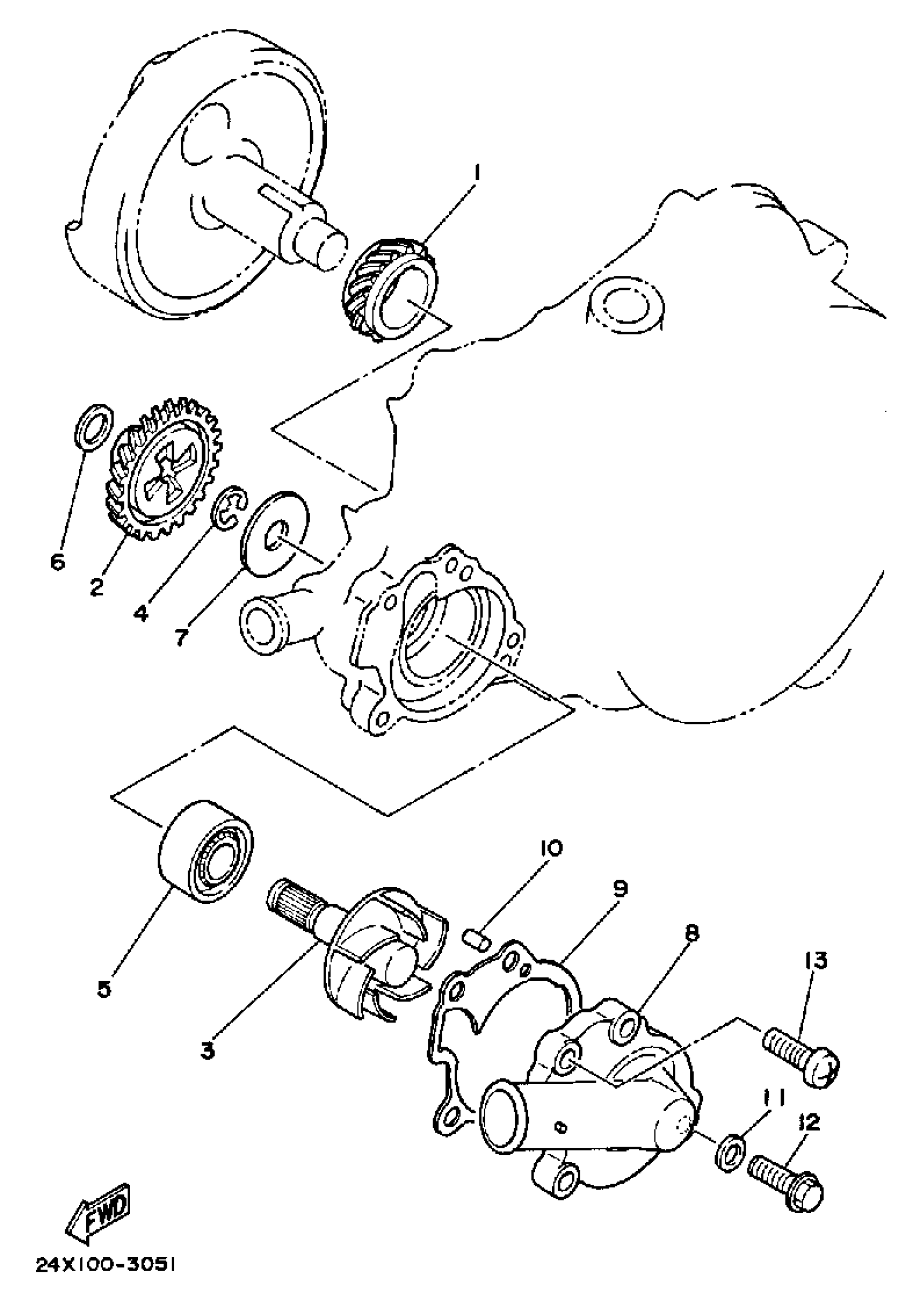

Yamaha YZ125N (YZ125N) 1985 WATER PUMP Diagram

#

Description
Price

1

GEAR, DRIVE

24X-12436-00-00

Unavailable

2

GEAR, IMPELLER SHAF

24X-12459-00-00

Unavailable

3

IMPELLER SHAFT ASSEMBLY

24X-12450-00-00

Unavailable

4

CIRCLIP(2R6)

99001-08600-00

$5.75

5

OIL SEAL (4V2)

93103-12119-00

Unavailable

6

WASHER, PLATE (24X)

90201-081G0-00

$6.15

7

WASHER, PLATE(3GM)

90201-106M5-00

$6.46

8

COVER, HOUSING

24X-12422-00-00

Unavailable

9

GASKET8HSNG COR2

24X-12428-02-00

Unavailable

10

PIN,DOWEL (603)

93604-10011-00

$4.89

11

GASKET (4V2)

90430-06166-00

$3.22

12

BOLT, FLANGE

95817-06020-00

$2.52

13

SCREW, PAN

98517-06020-00

$1.79
