1985 Yamaha YZ125N (YZ125N) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1985 Yamaha YZ125N (YZ125N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

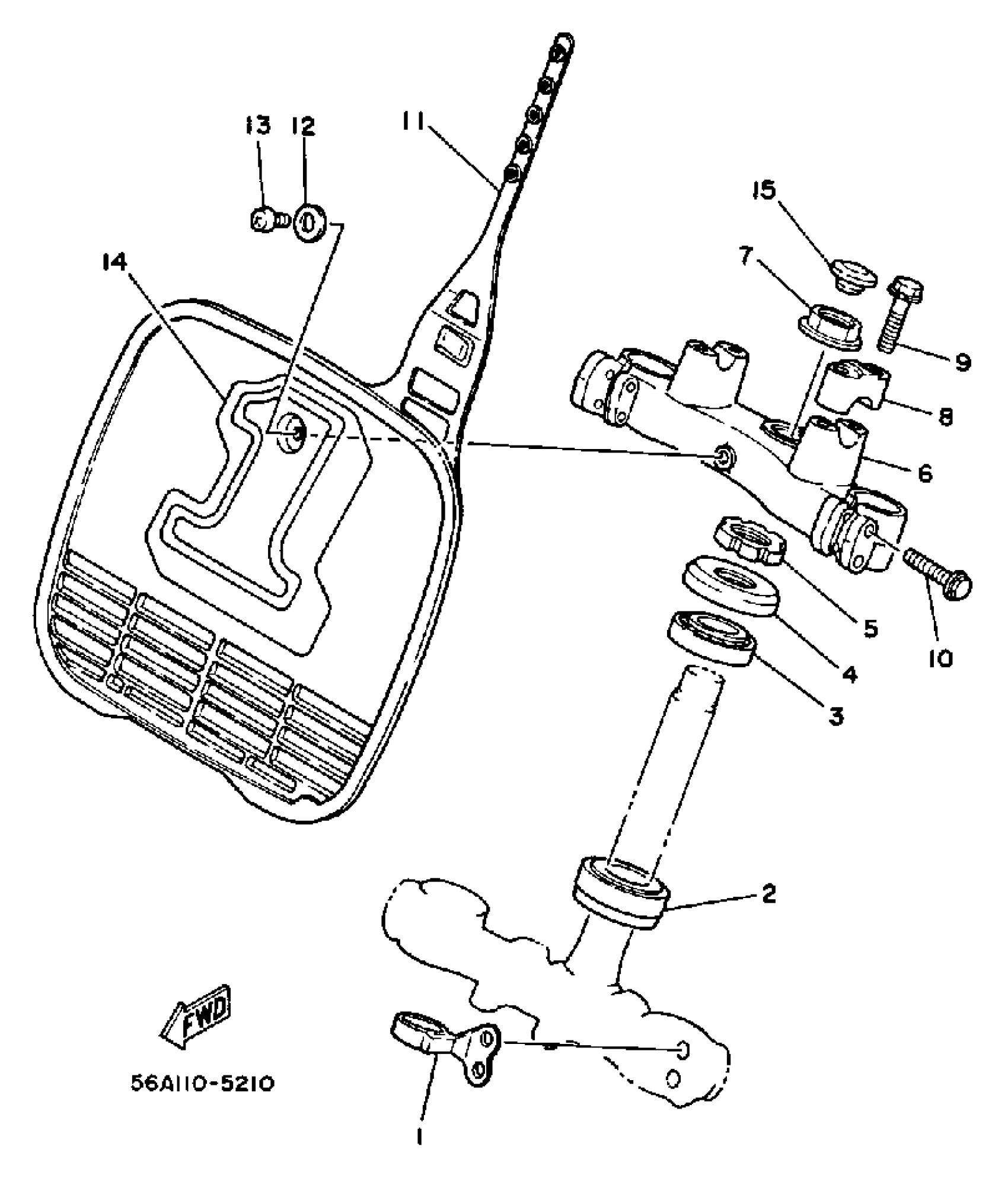

1985 Yamaha YZ125N (YZ125N) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE, WIRE

3R4-23389-00-00

1
Out of stock

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

1
Out of stock

3

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

4

COVER, BALL RACE 2

1W1-23416-00-00

—
Out of stock

5

NUT

90179-25004-00

1
Out of stock

6

CROWN, HANDLE

39W-23435-01-98

1
Out of stock

7

NUT

90179-22330-00

1
Out of stock

8

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

9

BOLT, FLANGE

95817-08035-00

1
Out of stock

10

BOLT, FLANGE

95814-08040-00

1
Out of stock

11

PLATE, NUMBER

24X-23485-10-00

1
Out of stock

12

WASHER, PLATE (583 REAR FENDER

90201-06571-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

14

EMBLEM

24X-23395-00-00

1
Out of stock

15

CAP

34K-2319U-00-00

1
Out of stock
← Rear Wheel Steering Handle - Cable →
