1985 Yamaha YZ125N (YZ125N) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1985 Yamaha YZ125N (YZ125N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

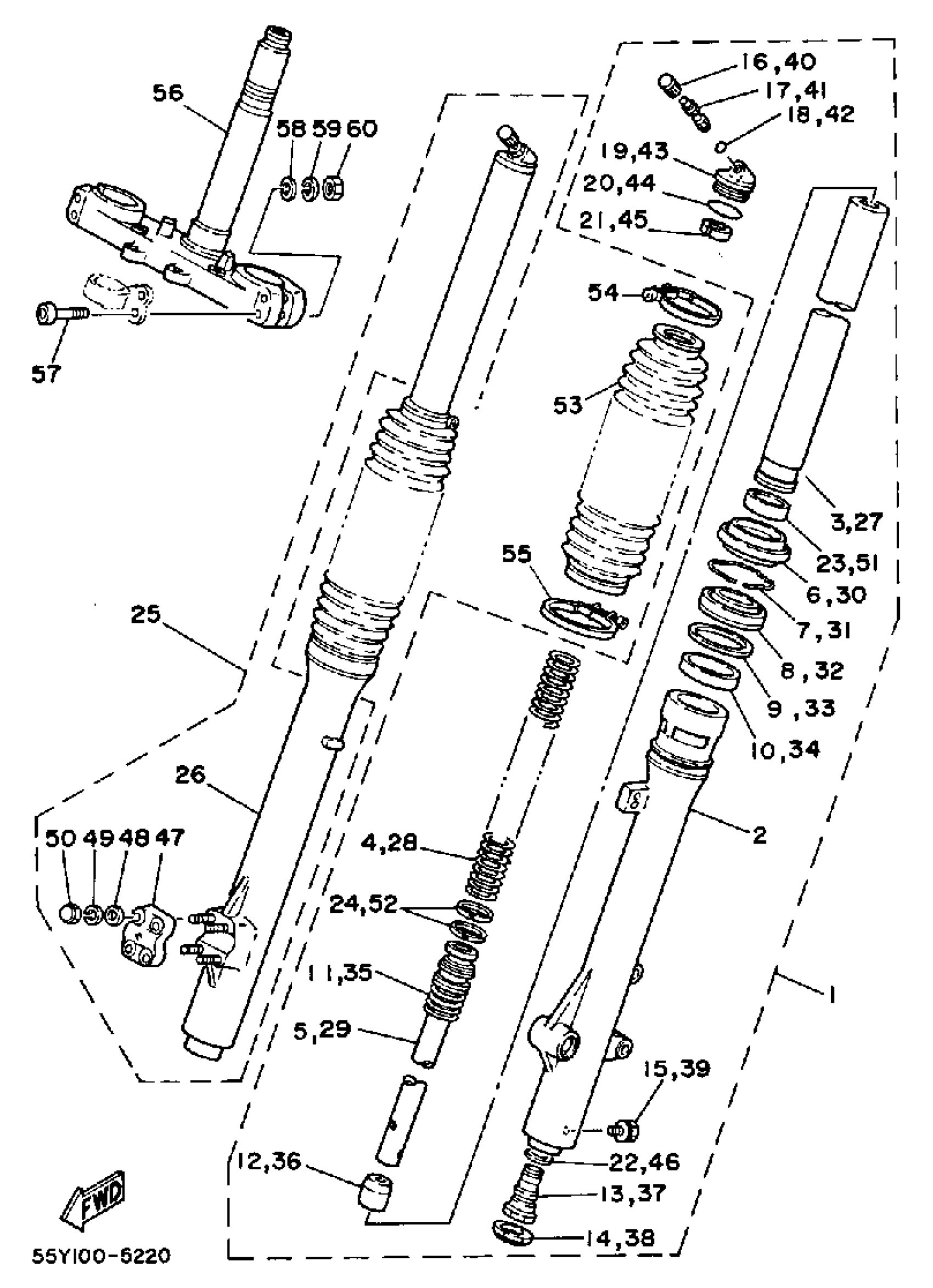

1985 Yamaha YZ125N (YZ125N) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(55Y-23102-L0-00)

1
Out of stock

2

. TUBE, OUTER 1

55Y-23126-L0-00

1
Out of stock

3

. INNER TUBE 1

55Y-23110-L0-00

1
Out of stock

4

SPRING, FRTFRK SOFT

(55Y-23141-10-00)

1
Out of stock

4

SPRING, FRTFRK HARD

(55Y-23141-20-00)

1
Out of stock

4

SPRING, FRONT FORK

(55Y-23141-L0-00)

1
Out of stock

5

CYLINDER, FRTFRK

(55Y-23170-L0-00)

1
Out of stock

6

. SEAL, DUST

55Y-23144-L0-00

1
Out of stock

7

RING, SNAP

34L-23153-00-00

—
Out of stock

8

OIL SEAL

4NK-23145-00-00

1
Out of stock

9

. WASHER, OIL SEAL

39W-23146-L0-00

1
Out of stock

10

. METAL, SLIDE 1

39W-23125-L0-00

1
Out of stock

11

. SPRING, REBOUND

55Y-23151-L0-00

1
Out of stock

12

SPINDLE, TAPER

(39W-23173-L0-00)

1
Out of stock

13

VALVE

(55Y-2316A-L0-00)

1
Out of stock

14

PLUG

(39W-2312G-L0-00)

1
Out of stock

15

PLUG, DRAIN

2A6-23119-00-00

—
Out of stock

16

. UNAVAILABLE IN PRICE BOOK

341-23184-00-00

1
Out of stock

17

. AIR VALVE

5K7-23190-00-00

1
Out of stock

18

O-RING (26H)

93210-06632-00

—
Out of stock

19

. BOLT, CAP

39W-23111-L0-00

1
Out of stock

20

O-RING

4NK-23147-00-00

—
Out of stock

21

. SPACER

55Y-23118-L0-00

1
Out of stock

22

. GASKET

39W-23158-L0-00

1
Out of stock

23

. PISTON, FRONT FORK

39W-23171-L0-00

1
Out of stock

23

. RING, PISTON FRTFRK

55Y-23157-L0-00

1
Out of stock

25

FRONT FORK ASSEMBLY R

(55Y-23103-L0-00)

1
Out of stock

26

. TUBE, OUTER 2

55Y-23136-L0-00

1
Out of stock

27

. INNER TUBE 1

55Y-23110-L0-00

1
Out of stock

28

SPRING, FRTFRK SOFT

(55Y-23141-10-00)

1
Out of stock

28

SPRING, FRTFRK HARD

(55Y-23141-20-00)

1
Out of stock

28

SPRING, FRONT FORK

(55Y-23141-L0-00)

1
Out of stock

29

CYLINDER, FRTFRK

(55Y-23170-L0-00)

1
Out of stock

30

. SEAL, DUST

55Y-23144-L0-00

1
Out of stock

31

RING, SNAP

34L-23153-00-00

—
Out of stock

32

OIL SEAL

4NK-23145-00-00

1
Out of stock

33

. WASHER, OIL SEAL

39W-23146-L0-00

1
Out of stock

34

. METAL, SLIDE 1

39W-23125-L0-00

1
Out of stock

35

. SPRING, REBOUND

55Y-23151-L0-00

1
Out of stock

36

SPINDLE, TAPER

(39W-23173-L0-00)

1
Out of stock

37

VALVE

(55Y-2316A-L0-00)

1
Out of stock

38

PLUG

(39W-2312G-L0-00)

1
Out of stock

39

PLUG, DRAIN

2A6-23119-00-00

—
Out of stock

40

CAP, AIR VALVE

4V1-23184-L0-00

—
Out of stock

41

. AIR VALVE

5K7-23190-00-00

1
Out of stock

42

O-RING (26H)

93210-06632-00

—
Out of stock

43

. BOLT, CAP

39W-23111-L0-00

1
Out of stock

44

O-RING

4NK-23147-00-00

—
Out of stock

45

. SPACER

55Y-23118-L0-00

1
Out of stock

46

. GASKET

39W-23158-L0-00

1
Out of stock

47

. HOLDER, AXLE

39W-23167-L0-00

1
Out of stock

48

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

49

WASHER, SPRING

92995-06100-00

1
Out of stock

50

NUT (J17)

95380-06800-00

—
Out of stock

51

. PISTON, FRONT FORK

39W-23171-L0-00

1
Out of stock

52

. RING, PISTON FRTFRK

55Y-23157-L0-00

1
Out of stock

53

BOOT, FRONT FORK

39W-23191-M0-00

1
Out of stock

54

BAND

39W-23192-L0-00

1
Out of stock

55

BAND

3RW-23192-00-00

—
Out of stock

56

UNDER BRACKET COMP

39W-23340-L0-38

1
Out of stock

57

BOLT, HEX SCKT HEAD

34L-23181-00-00

1
Out of stock

58

.. WASHER, PLATE

92990-08600-00

1
Out of stock

59

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

60

NUT(6L2)

95333-08600-00

—
Out of stock
