REAR SUSPENSION

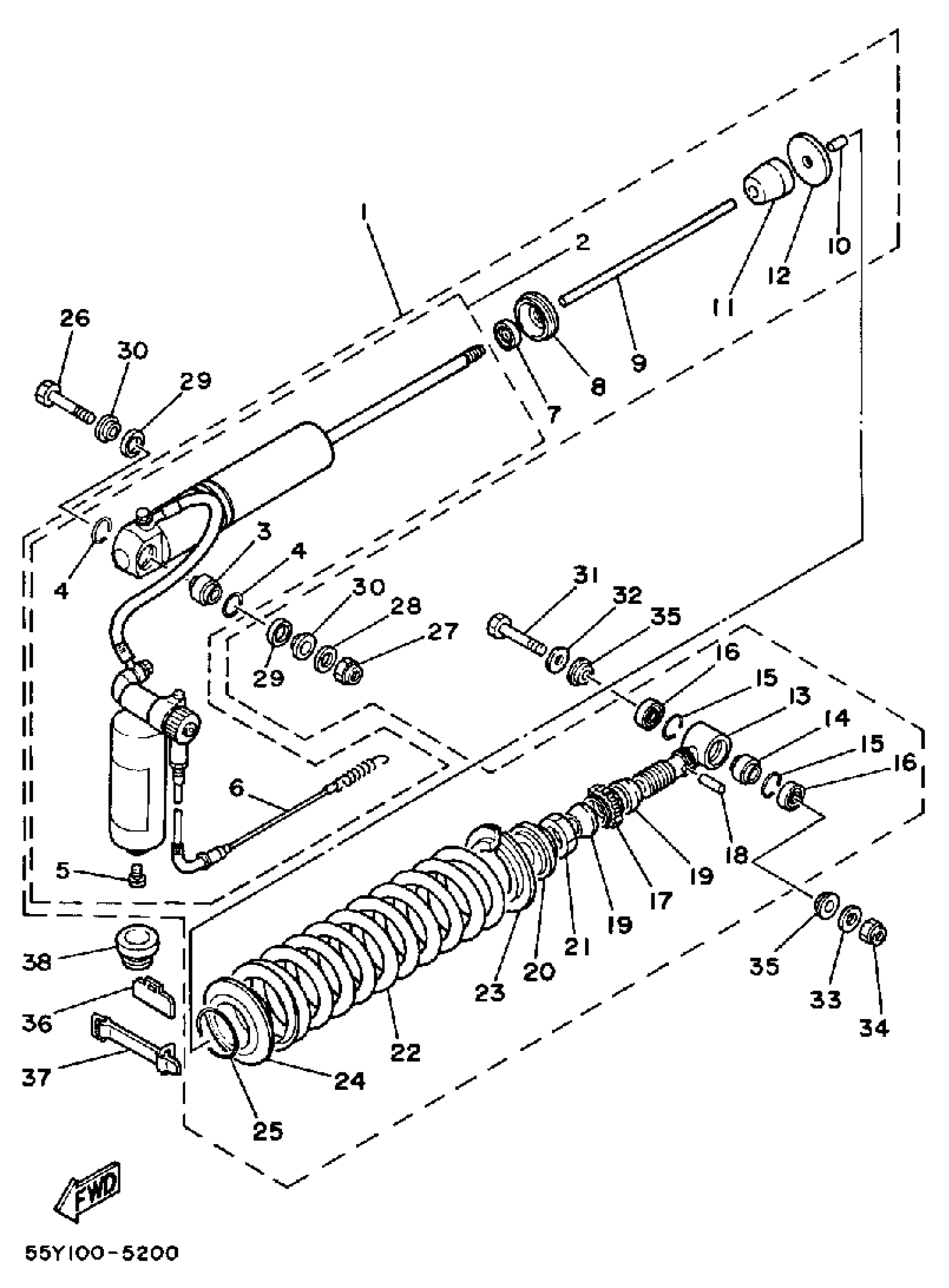

Yamaha YZ125N (YZ125N) 1985 REAR SUSPENSION Diagram
#
1
SHK/ABS ASSEMBLY, REAR
(55Y-22210-00-6W)
Unavailable
2
DAMPER SUB-ASSEMBLY.
(55Y-22401-00-00)
Unavailable
5
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
6
.. CABLE, CONTROL 1
55Y-22463-00-00
Unavailable
7
. SEAL, DUST
29L-22475-00-00
Unavailable
8
. CAP, CASE
39K-22472-00-00
Unavailable
9
ROD, PUSH
(55Y-22489-00-00)
Unavailable
10
. PIN, DOWEL
93604-21193-00
Unavailable
11
. BUMP, STOP
39X-22493-00-00
Unavailable
12
. SUPPORT, BUMP STOP
5X2-22228-00-00
Unavailable
13
UPPER BRACKET SUB ASSEMBLY
(39W-22409-00-00)
Unavailable
16
OIL SEAL (23X)
93104-18077-00
Unavailable
17
. NUT, ADJUSTING
5X3-22497-00-00
Unavailable
18
. PIN, DOWEL
93604-26132-00
Unavailable
19
. COVER
3R4-22221-01-00
Unavailable
20
. SEAT, SPRING UPPER
3R4-22213-00-00
Unavailable
21
NUT, HEXAGON (29L)
90170-20320-00
Unavailable
22
SPRING, MXS STD
(39W-22212-00-6W)
Unavailable
22
SPRING, MXS SOFT
(39W-22212-10-6W)
Unavailable
22
. SPRING, MXS HARD
39W-22212-20-6W
Unavailable
23
GUIDE, SPRING 1
3P6-22214-10-00
Unavailable
24
. SEAT, SPRING LOWER
38V-22223-00-00
Unavailable
25
CIRCLIP, OUTER
(93440-45135-00)
Unavailable
26
BOLT
90109-10704-00
Unavailable
27
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
29
COVER
23X-22211-00-00
Unavailable
30
COLLAR (23X)
90387-127G8-00
Unavailable
31
BOLT
90109-10700-00
Unavailable
32
WASHER, PLATE
90201-12027-00
Unavailable
33
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
34
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
35
COLLAR (23X)
90387-126H8-00
Unavailable
36
DAMPER, SUB TANK
56A-22261-00-00
Unavailable
37
HOLDER, SUB TANK
24X-22262-00-00
Unavailable
38
GROMMET
90480-25381-00
Unavailable
