Description

Price

1

FENDER, FRONT

5X6-21511-11-00

$43.99

2

COLLAR (8G8)

90387-06681-00

$9.49

3

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

4

FENDER, REAR

39W-21611-10-00

Unavailable

5

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

WASHER(6TA)

92907-06700-00

$1.86

8

GUARD, MUD

(39W-21629-00-00)

Unavailable

9

GUARD, FLAP

39W-21642-00-00

Unavailable

10

BOLT, WITH WASHER(55K)

90119-06117-00

$4.29

11

PLATE 1

4V2-21543-01-00

Unavailable

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE

90201-06M08-00

Unavailable

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

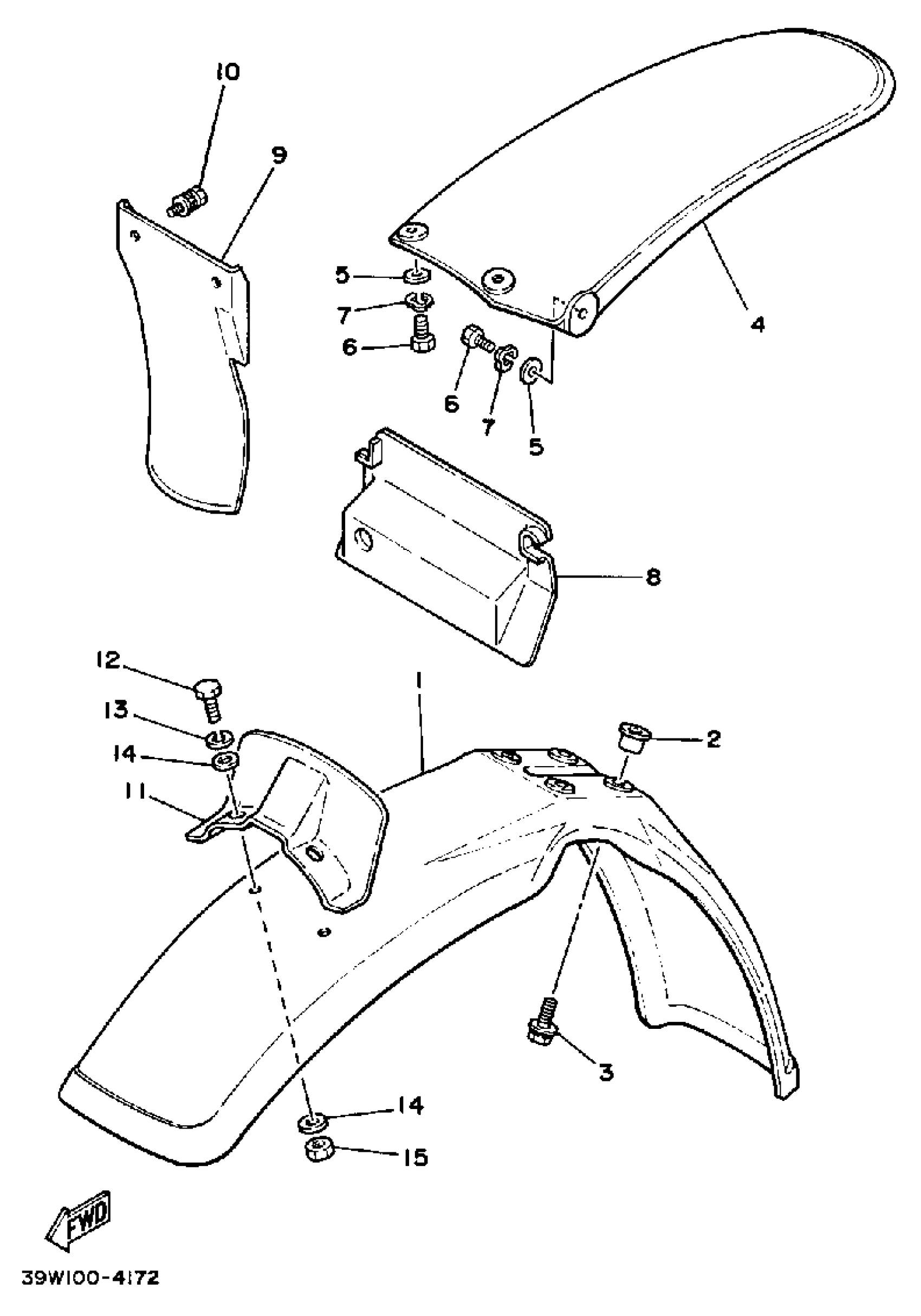

Yamaha YZ125N (YZ125N) 1985 FENDER Diagram

FENDER, FRONT

COLLAR (8G8)

BOLT, WITH WASHER (10V)

FENDER, REAR

WASHER, PLATE (583 REAR FENDER

BOLT, HEXAGON DEEP RECESS

WASHER(6TA)

GUARD, MUD

GUARD, FLAP

BOLT, WITH WASHER(55K)

PLATE 1

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE

NUT, SELF-LOCKING
