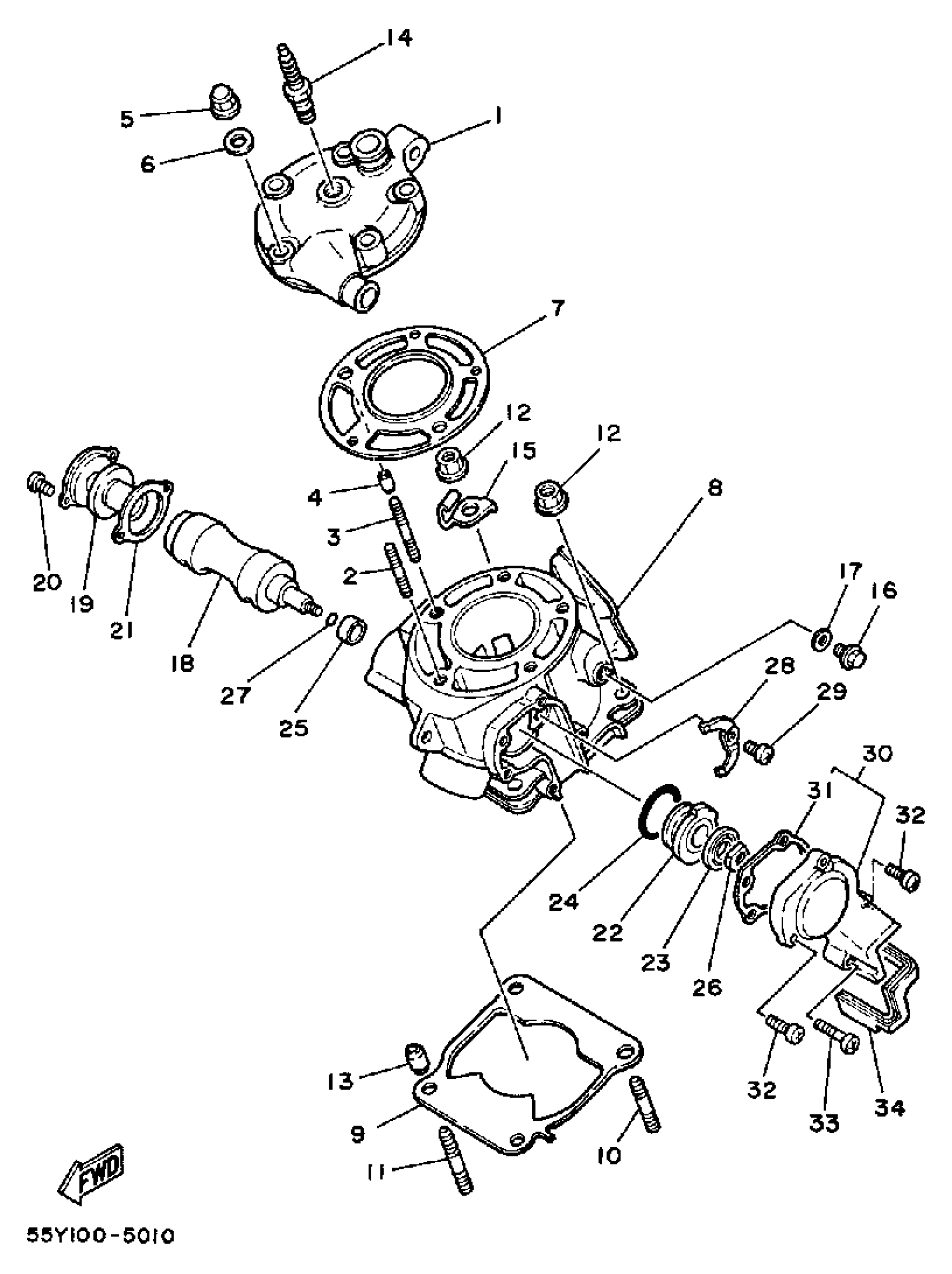

Yamaha YZ125N (YZ125N) 1985 CYLINDER Diagram
#
Description
Price
1
. HEAD, CYLINDER 1
55Y-11111-00-00
Unavailable
7
GASKET, CYL.HEAD 1
55Y-11181-01-00
Unavailable
8
. CYLINDER 1
55Y-11311-00-00
Unavailable
9
GASKET,CYLINDER
24X-11351-01-00
Unavailable
14
B9EG NGK SPLUG 4PK
B9E-G0000-00-00
Unavailable
15
HOLDER 1
4V2-1131E-00-00
Unavailable
16
BOLT, FLANGE
95817-06010-00
Unavailable
17
GASKET (4V2)
90430-06166-00
Unavailable
18
. VALVE 1
55Y-1131A-00-00
Unavailable
19
HOLDER 1
39W-W1132-00-00
Unavailable
20
SCREW, PAN
98517-05012-00
Unavailable
21
GASKET, HOLDER
5X4-1131N-10-00
Unavailable
22
HOLDER 2 ASSY
5X4-Y113F-10-00
Unavailable
23
OIL SEAL (5X4)
93104-16074-00
Unavailable
24
O-RING(2HG)
93210-270A8-00
Unavailable
25
COLLAR(3JE)
90387-102W0-00
Unavailable
26
BOSS, COLLAR
5X5-11937-00-00
Unavailable
27
O-RING (341)
93210-09192-00
Unavailable
28
PLATE, THRUST 1
55Y-11915-00-00
Unavailable
29
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
30
HOUSING 2
24X-11992-01-00
Unavailable
31
GASKET,YPVS HOUSIN
5X4-11993-01-00
Unavailable
32
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
33
SCREW, PAN HEAD(4MY)
98507-05025-00
Unavailable
34
SEAL, HOUSING
5X4-11995-00-00
Unavailable
