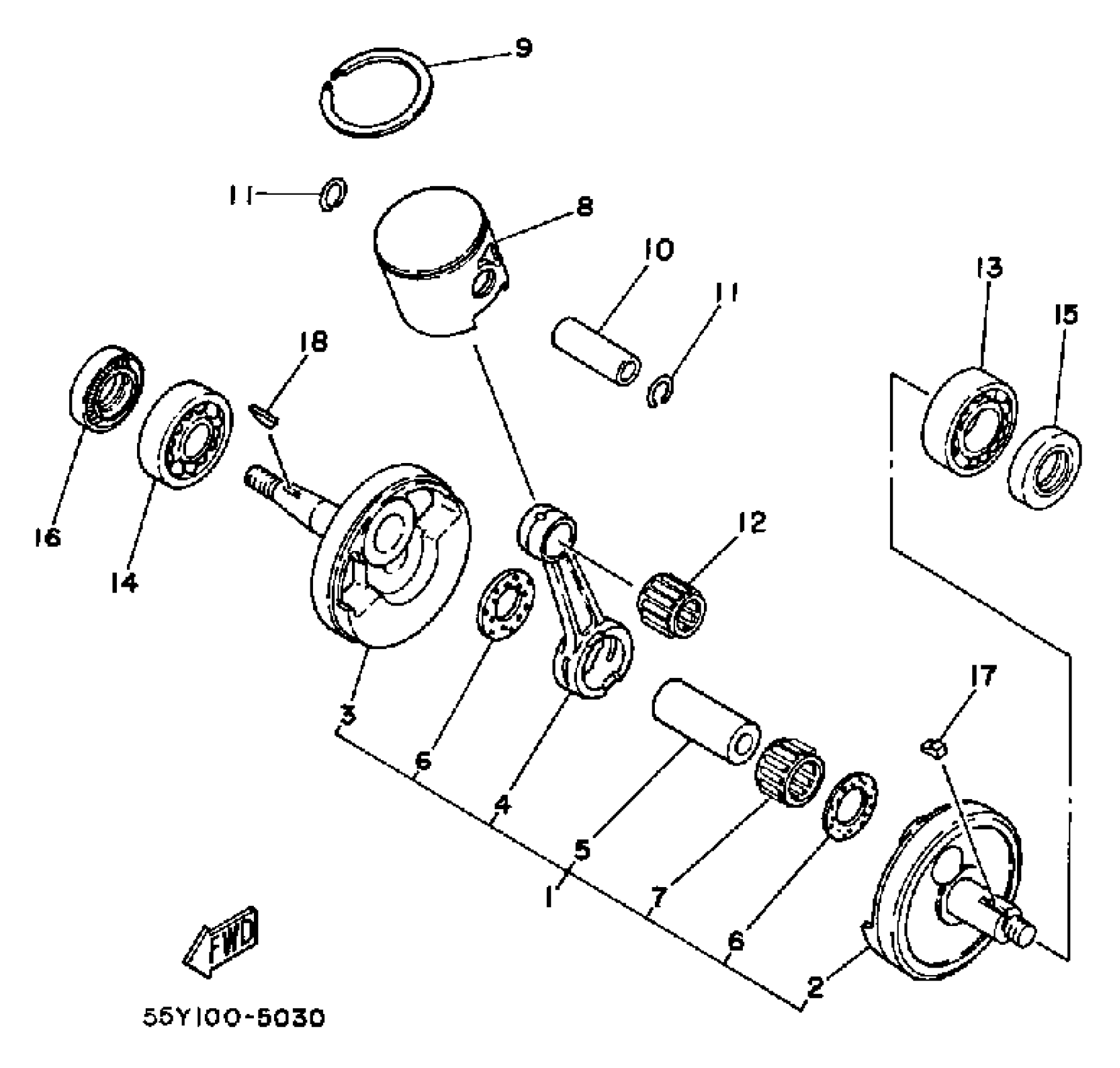

Yamaha YZ125N (YZ125N) 1985 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

55Y-11400-00-00

Unavailable

2

. CRANK 1

55Y-11412-00-00

Unavailable

3

. CRANK 2

55Y-11422-00-00

Unavailable

4

. ROD, CONNECTING

55Y-11651-00-00

Unavailable

5

PIN, CRANK 1

3M5-11681-00-00

$24.99

6

WASHER (29L)

90209-22248-00

Unavailable

7

BEARING

93310-52238-00

$74.99

8

. PISTON STD

55Y-11631-00-94

Unavailable

8

. PISTON 1ST OS

55Y-11635-00-00

Unavailable

8

. PISTON 2 O/S 050

55Y-11636-00-00

Unavailable

8

. PISTON 3 O/S 075

55Y-11637-00-00

Unavailable

9

RING, PISTON

5X4-11611-02-00

$34.99

9

RING, PISTON 1ST

5X4-11611-11-00

Unavailable

9

RING, PISTON 2ND

5X4-11611-21-00

Unavailable

9

RING, PISTON 3RD

5X4-11611-31-00

Unavailable

10

PIN, PISTON

137-11633-10-00

Unavailable

11

CIRCLIP(1AR)

93450-17129-00

Unavailable

12

BEARING, NEEDLE (24X)

93310-216L2-00

Unavailable

13

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

14

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

15

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

16

OIL SEAL, SD-TYPE

93102-25258-00

Unavailable

17

KEY, STRAIGHT

90282-05053-00

Unavailable

18

PISTON KIT

55Y-11630-00-00

Unavailable

18

PISTON KIT

55Y-11630-10-00

Unavailable

18

PISTON KIT

55Y-11630-20-00

Unavailable

18

PISTON KIT

55Y-11630-30-00

Unavailable

18

CONNECTING ROD ASSEMBLY

55Y-11650-00-00

Unavailable

18

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
