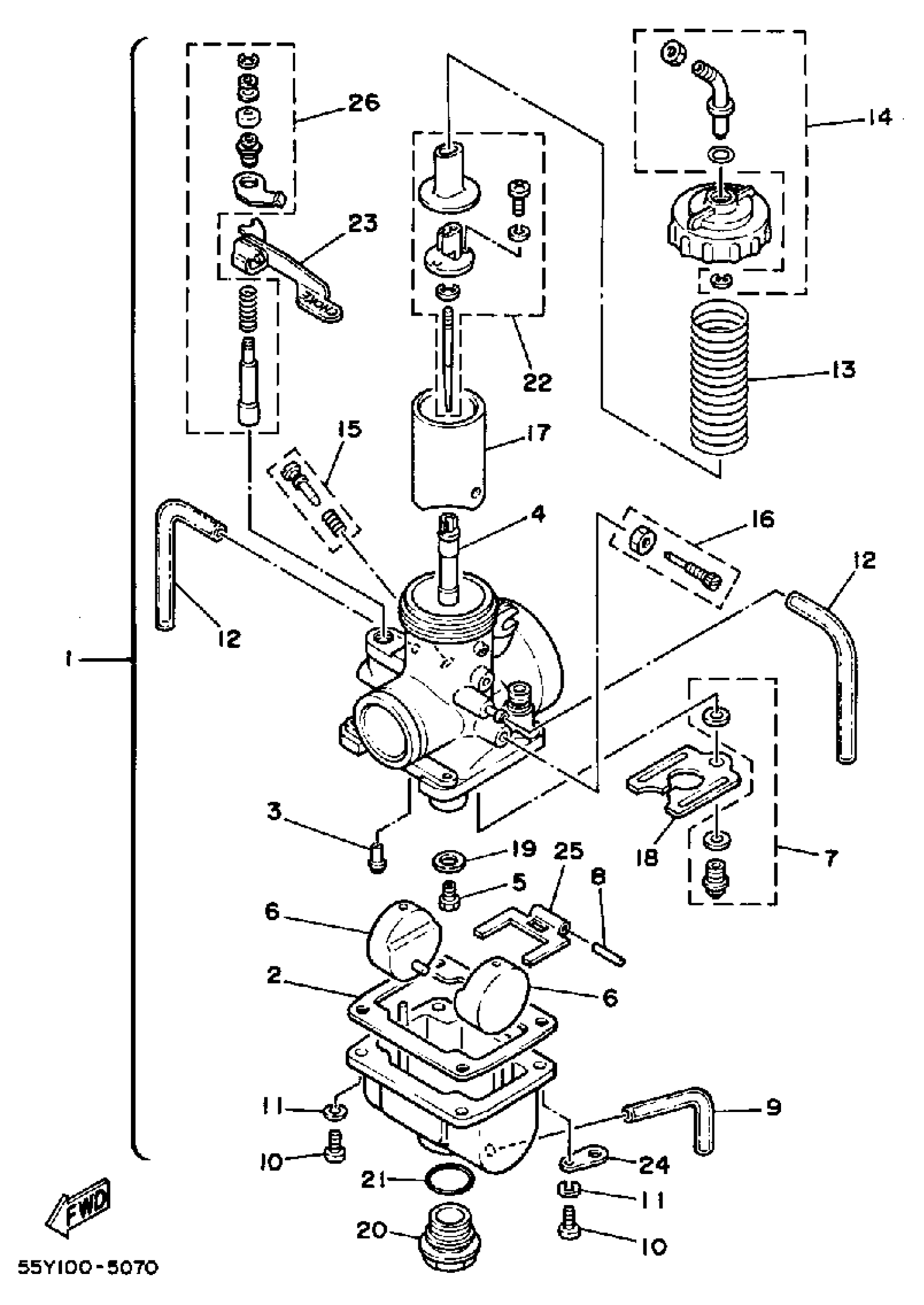

Yamaha YZ125N (YZ125N) 1985 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

55Y-14101-10-00

Unavailable

2

GASKET, FLOAT CHAMBER

483-14184-00-00

$22.99

3

. JET, PILOT #55 (# 55)

193-14142-55-00

Unavailable

3

. JET, PILOT #60

193-14142-60-00

Unavailable

3

. JET, PILOT (65)

193-14142-65-00

Unavailable

4

. NOZZLE, MAIN

239-14141-52-00

Unavailable

4

. NOZZLE, MAIN

239-14141-54-00

Unavailable

4

NOZZLE, MAIN

(239-14141-56-00)

Unavailable

5

JET, MAIN #240

137-14143-48-A1

$13.49

5

JET, MAIN #250

137-14143-50-A1

Unavailable

5

JET, MAIN #260

137-14143-52-00

Unavailable

6

. FLOAT

310-14185-00-00

Unavailable

7

NEEDLE VALVE SET

24X-14107-33-00

$50.99

8

PIN, FLOAT

537-14186-00-00

$7.99

9

PIPE, OVER FLOW

2J2-14196-00-00

$35.99

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

12

HOSE

89A-14987-00-00

Unavailable

13

. SPRING, THROTTLE VALVE

431-14131-00-00

Unavailable

14

. CBLE AJST SCRW SETSCREW SET

24X-14106-00-00

Unavailable

15

AIR SCREW SET

23X-14104-00-00

Unavailable

16

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

17

. VALVE, THROTTLE 1

3R6-14112-20-00

Unavailable

17

. VALVE, THROTTLE 1

3R6-14112-25-00

Unavailable

17

VALVE, THROTTLE

(3R6-14112-30-00)

Unavailable

18

. PLATE

483-14146-00-00

Unavailable

19

WASHER, MAIN JET

(55Y-14153-00-00)

Unavailable

20

. PLUG, SCREW

2K6-14115-00-00

Unavailable

21

O-RING

2K6-14147-00-00

Unavailable

22

. NEEDLE SET

24X-1490J-00-00

Unavailable

23

. LEVER, STARTER 1

1W1-14175-01-00

Unavailable

24

. PLATE

313-14146-00-00

Unavailable

25

. ARM, FLOAT

310-14187-00-00

Unavailable

26

. STARTER SET

43G-1410A-00-00

Unavailable
