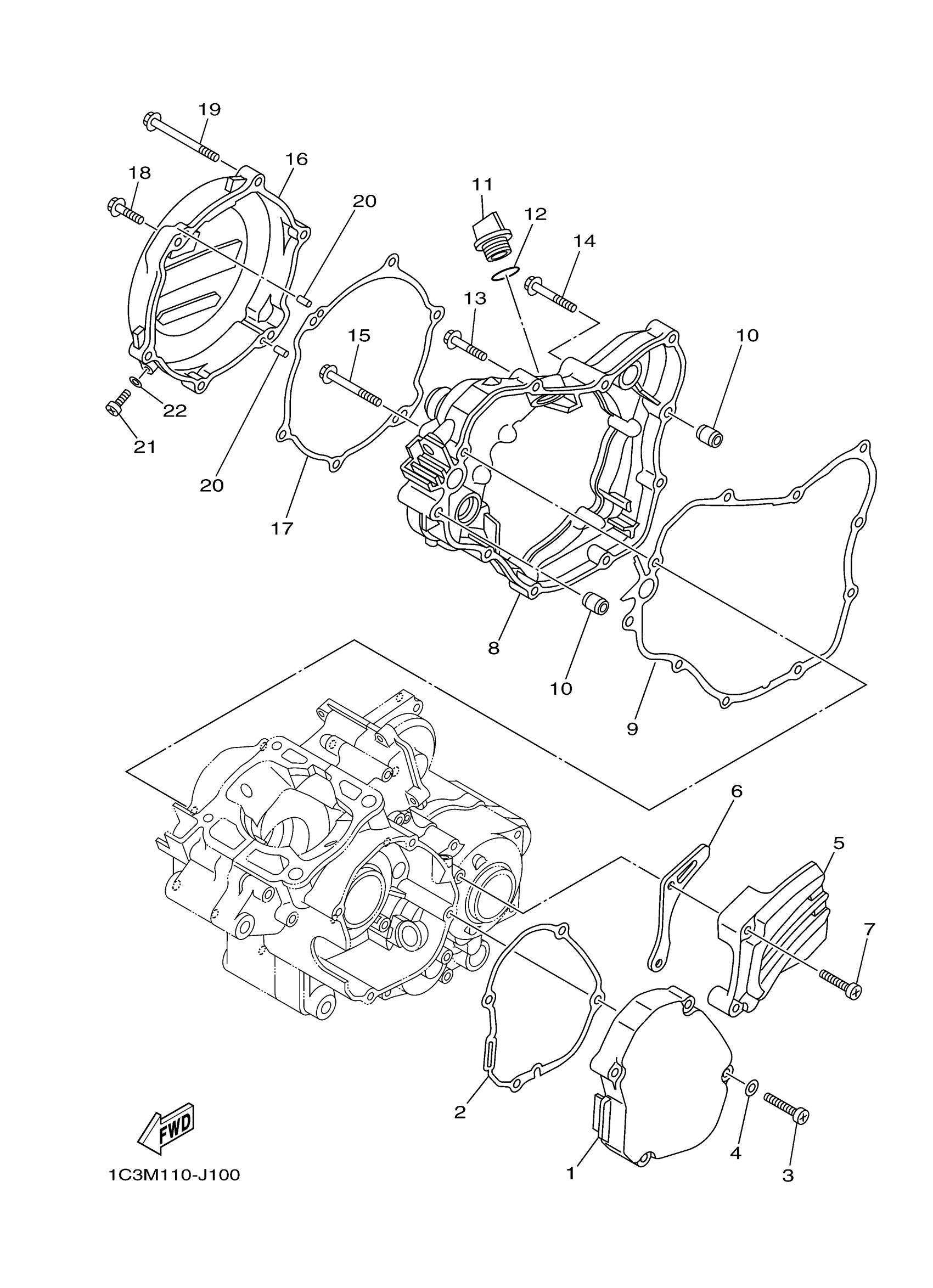

Yamaha YZ125M2 (YZ125) B0VA 2021 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1C3-15411-10-00

$42.99

2

GASKET, CRANKCASE COVER 1

1C3-15451-00-00

$16.49

3

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

COVER, CRANKCASE 2

1C3-15421-10-00

Unavailable

6

GUIDE, CHAIN

1C3-17466-00-00

$14.49

7

SCREW, PAN HEAD

98502-06030-00

$2.18

8

COVER, CRANKCASE 3

1C3-15431-03-00

$135.99

9

GASKET, CRANKCASE COVER 3

1C3-15462-00-00

$17.49

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

PLUG, OIL

3Y1-15363-10-00

$18.49

12

O-RING (646)

93210-19123-00

Unavailable

13

BOLT, FLANGE

95022-06030-00

$3.72

14

BOLT, FLANGE

95022-06040-00

$3.45

15

BOLT, FLANGE

95022-06050-00

$3.23

16

COVER, GENERATOR

1C3-15415-10-00

Unavailable

17

GASKET, 2

1C3-15463-00-00

Unavailable

18

BOLT, FLANGE

95022-06065-00

Unavailable

19

BOLT, FLANGE

95022-06025-00

Unavailable

20

PIN,DOWEL (603)

93604-10011-00

Unavailable

21

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable
