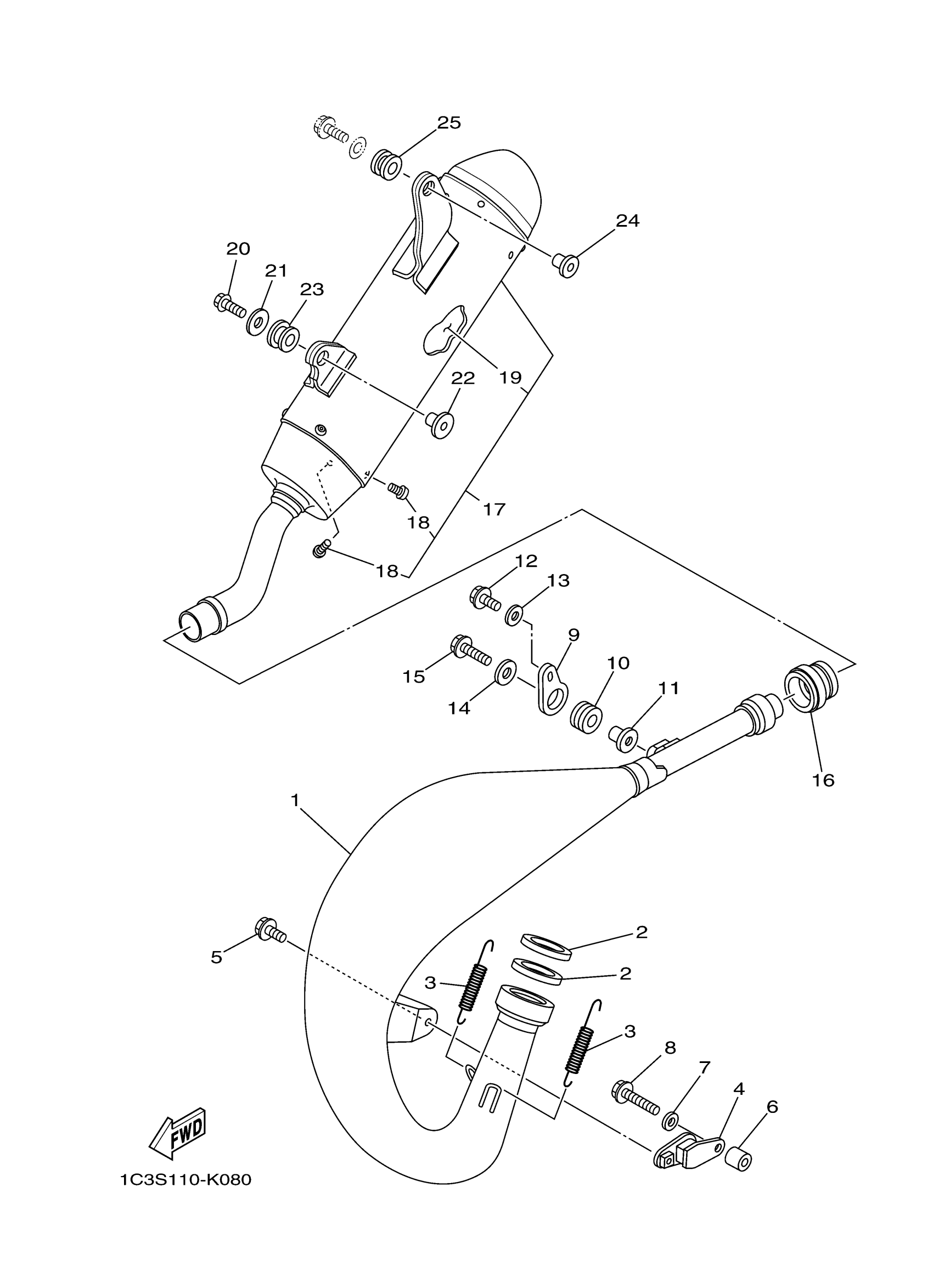

Yamaha YZ125L2 (YZ125) B0V5 2020 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

1C3-14610-00-00

$285.09

2

SEAL, EXHAUST

5MV-14642-00-00

$16.83

3

SPRING, TENSION

90506-20018-00

$7.30

4

STAY, MUFFLER 1

565-14771-01-00

$15.57

5

BOLT, FLANGE

95022-06012-00

$2.80

6

SPACER

1C3-14763-00-00

$5.26

7

WASHER, PLATE

90201-06077-00

$4.76

8

BOLT, FLANGE

95022-06025-00

$1.37

9

STAY, MUFFLER 1

5CU-14771-01-00

$26.51

10

GROMMET(4EW)

90480-16561-00

$13.70

11

COLLAR(52E)

90387-063G3-00

$5.86

12

BOLT, FLANGE

95022-06014-00

$2.46

13

WASHER, PLATE

90201-06078-00

$5.11

14

WASHER, PLATE

90201-06033-00

$2.56

15

BOLT, FLANGE

95022-06025-00

$1.37

16

JOINT, EXHAUST 1

4JY-14615-00-00

Unavailable

17

SILENCER, EXHAUST

1C3-14753-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

19

FIBER

1C3-1469A-00-00

Unavailable

20

BOLT, FLANGE

95022-06030-00

Unavailable

21

WASHER, PLATE

90201-06086-00

Unavailable

22

COLLAR

90387-06121-00

Unavailable

23

GROMMET

90480-17004-00

Unavailable

24

COLLAR

90387-06039-00

Unavailable

25

GROMMET(36Y)

90480-16404-00

Unavailable
