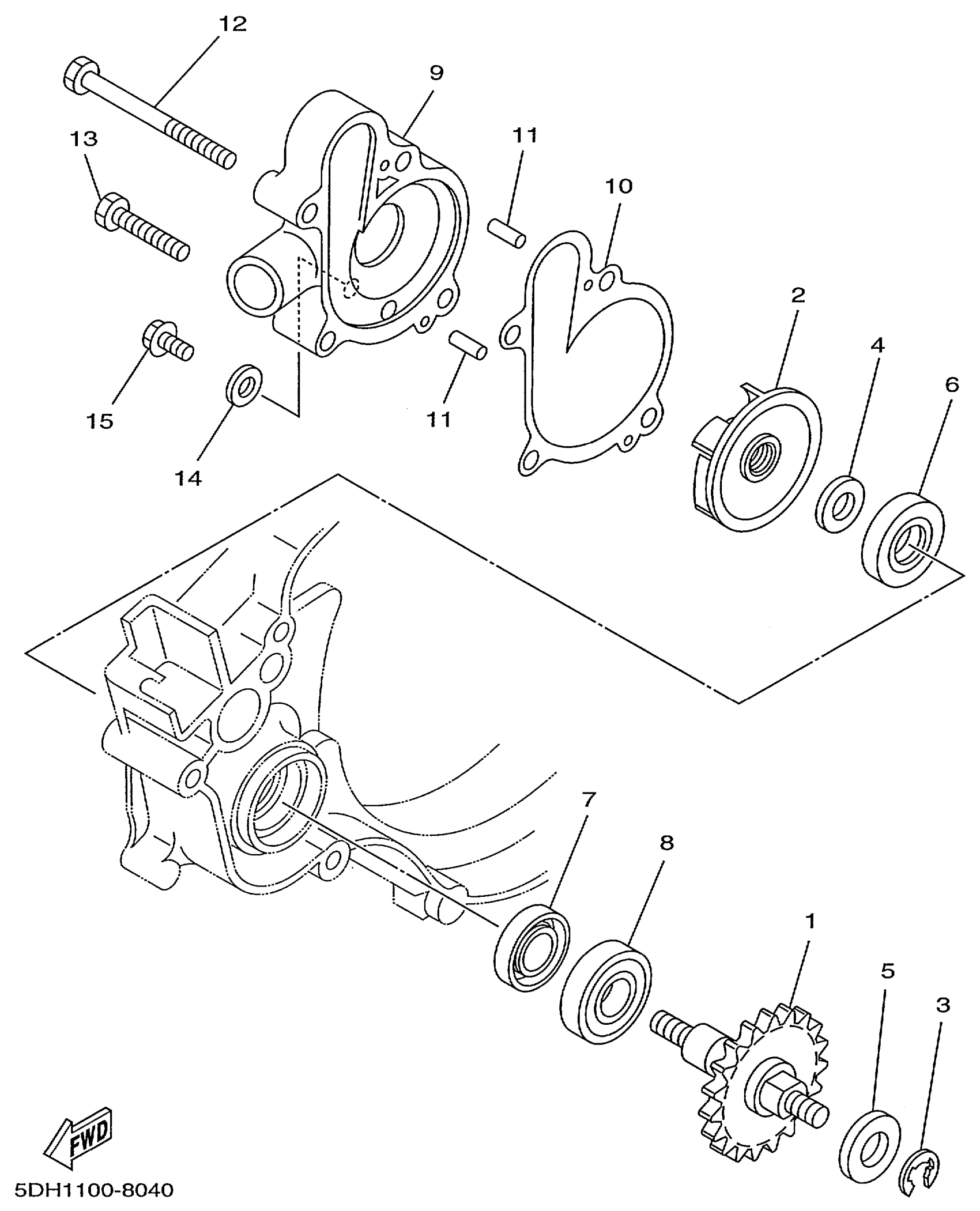

Yamaha YZ125L1 (YZ125) 5ET1 1999 WATER PUMP Diagram

GEAR, IMPELLER SHAFT

5DH-12459-01-00

$147.99

IMPELLER, WATER PUMP

5DH-12451-00-00

$91.99

CIRCLIP(53L)

99001-06600-00

$1.01

WASHER, PLATE(3XP)

90201-083P5-00

$5.60

WASHER, PLATE (3L7)

90201-08784-00

$3.23

OIL SEAL

93109-11073-00

$11.49

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

COVER, HOUSING

4JY-12422-01-00

Unavailable

GASKET, HOUSING COVER 2

4JY-12428-00-00

$20.99

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT, SMALL FLANGE

95027-06065-00

$3.28

BOLT, SMALL FLANGE

95027-06030-00

$3.98

GASKET 256113960000

90430-06014-00

Unavailable

BOLT, FLANGE(4MY)

95027-06010-00

$3.29
