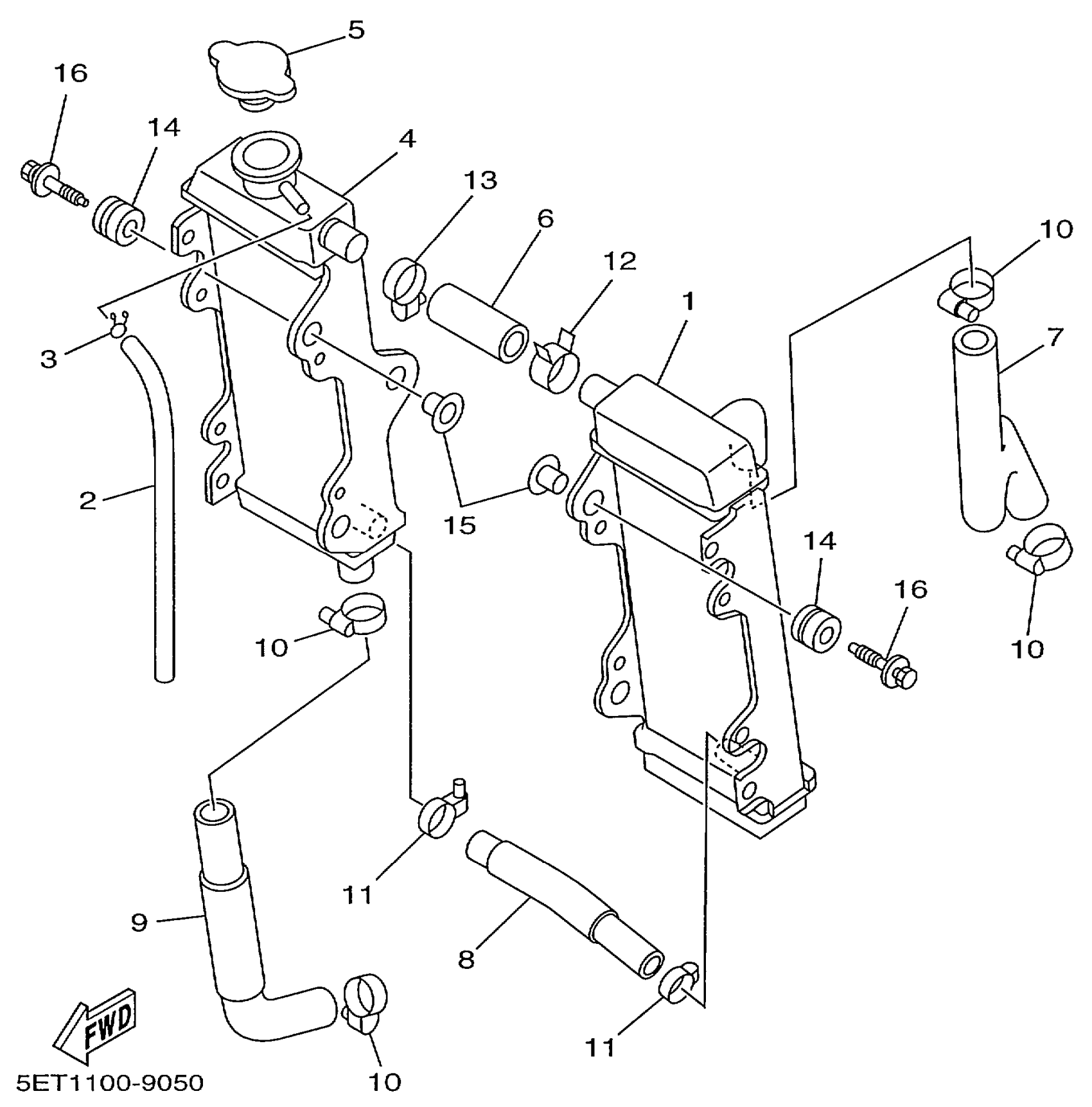

Yamaha YZ125L1 (YZ125) 5ET1 1999 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

4SS-1240A-10-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$11.73

3

CLIP

90467-090A2-00

$2.47

4

RADIATOR ASSY

4SS-12461-10-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$53.09

6

HOSE 2

5BE-12577-01-00

Unavailable

7

PIPE 1

4SS-12481-00-00

Unavailable

8

PIPE 3

4SS-12483-00-00

Unavailable

9

PIPE 4

4SS-12484-00-00

Unavailable

10

HOSE CLAMP ASSY

90450-28001-00

$11.70

11

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

12

CLIP

90467-21068-00

$5.85

13

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

14

GROMMET(3RB)

90480-15528-00

$6.22

15

COLLAR

90387-0614M-00

$7.70

16

BOLT, WITH WASHER(3XP)

90119-06214-00

Unavailable
