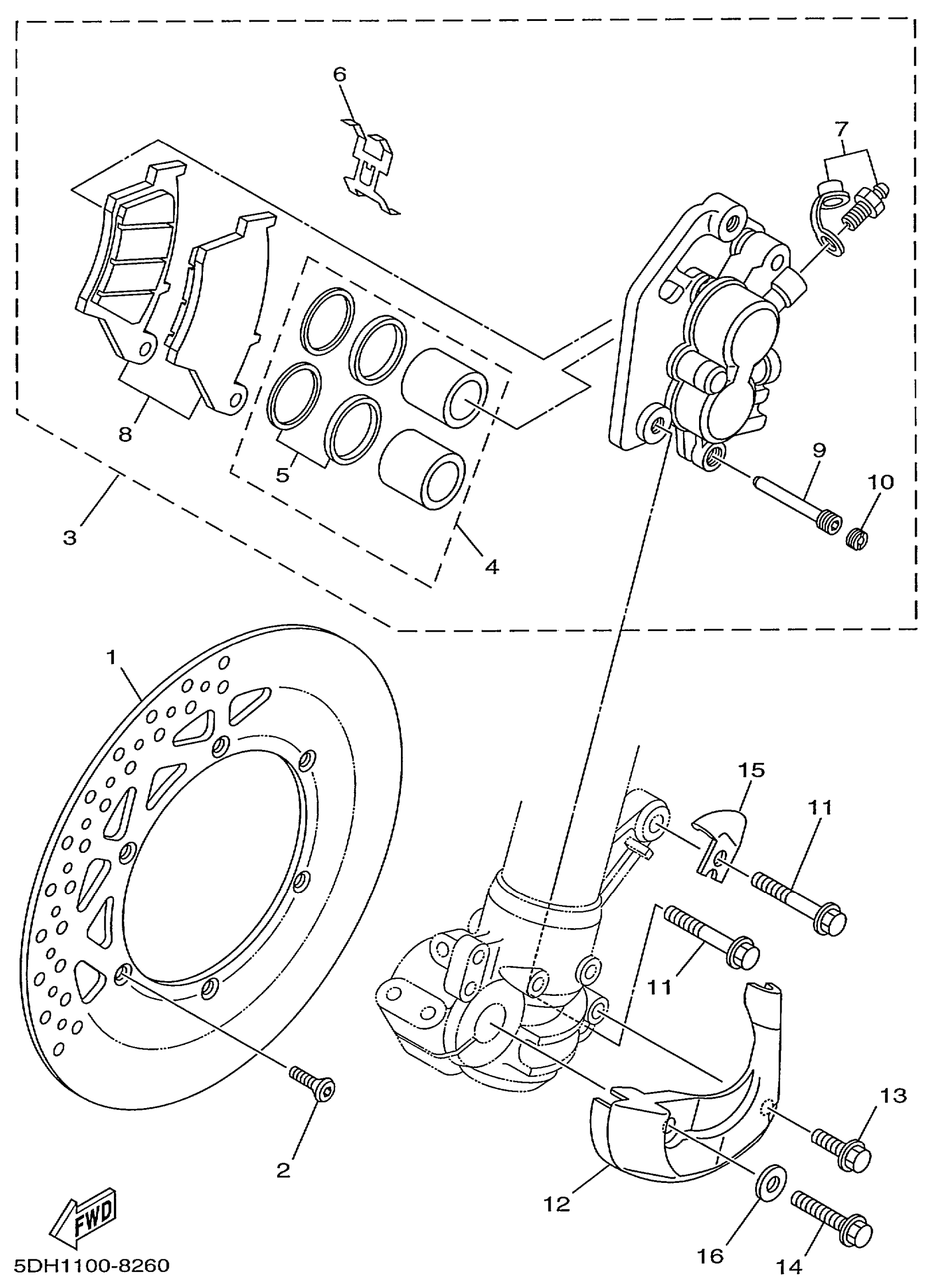

Yamaha YZ125L1 (YZ125) 5ET1 1999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

4XM-2582T-00-00

Unavailable

2

SCREW, COUNTERSUNK

90151-06080-00

$2.18

3

CALIPER ASSY (LEFT)

5DH-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

4EW-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

6

SUPPORT, PAD

5DH-25919-00-00

$20.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BRAKE PAD KIT

5DH-W0045-00-00

$41.99

9

PIN, PAD

5DH-25933-00-00

$22.99

10

PLUG

5DH-25916-00-00

$9.99

11

BOLT, FLANGE

95817-08035-00

$9.49

12

COVER, HOSE

5DH-2314E-00-00

$37.99

13

BOLT, FLANGE

95817-06012-00

$1.43

14

BOLT, SMALL FLANGE

95027-08020-00

$8.49

15

HOLDER, BRAKE HOSE 1

5DH-25875-00-00

Unavailable

16

WASHER(6TC)

92907-08200-00

Unavailable
