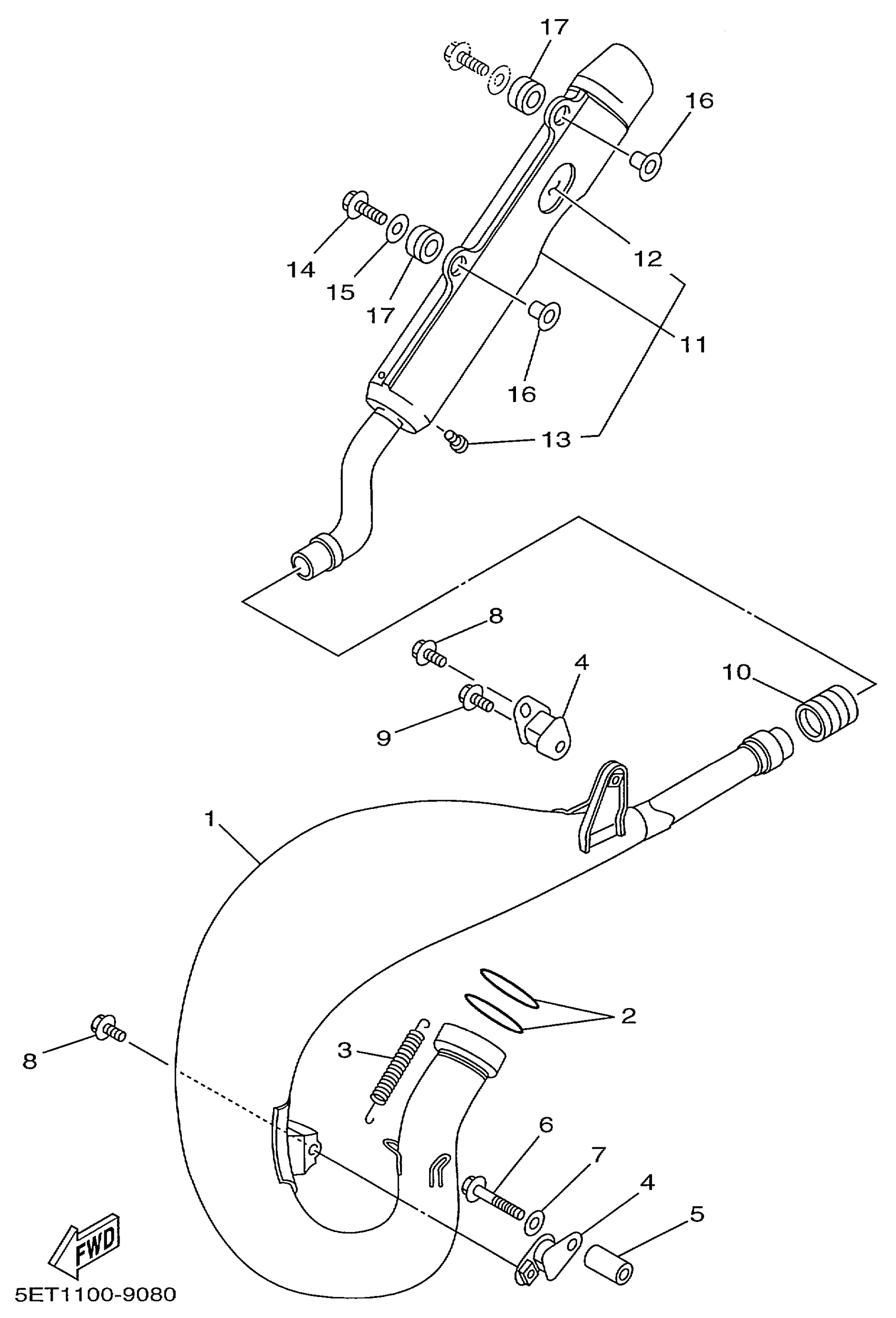

Yamaha YZ125L1 (YZ125) 5ET1 1999 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY 1

5ET-14610-00-00

Unavailable

O-RING(2GU)

93210-45742-00

$13.49

SPRING, TENSION(3FV)

90507-20052-00

$4.99

STAY, MUFFLER 1

565-14771-01-00

$18.49

COLLAR(M63)

90387-060X8-00

Unavailable

BOLT, SMALL FLANGE

95027-06045-00

$3.28

WASHER, PLATE

90201-06020-00

$9.49

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

BOLT, WITH WASHER(3JD)

90119-06185-00

$10.49

JOINT, EXHAUST 1

4JY-14615-00-00

$61.99

SILENCER, EXHAUST

5ET-14753-00-00

Unavailable

. FIBER

4SR-1469A-00-00

Unavailable

BOLT, BUTTON HEAD

92017-06010-00

$4.82

BOLT, SMALL FLANGE

95027-06025-00

$4.16

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

COLLAR(52E)

90387-063G3-00

Unavailable

GROMMET(4EW)

90480-16561-00

Unavailable
