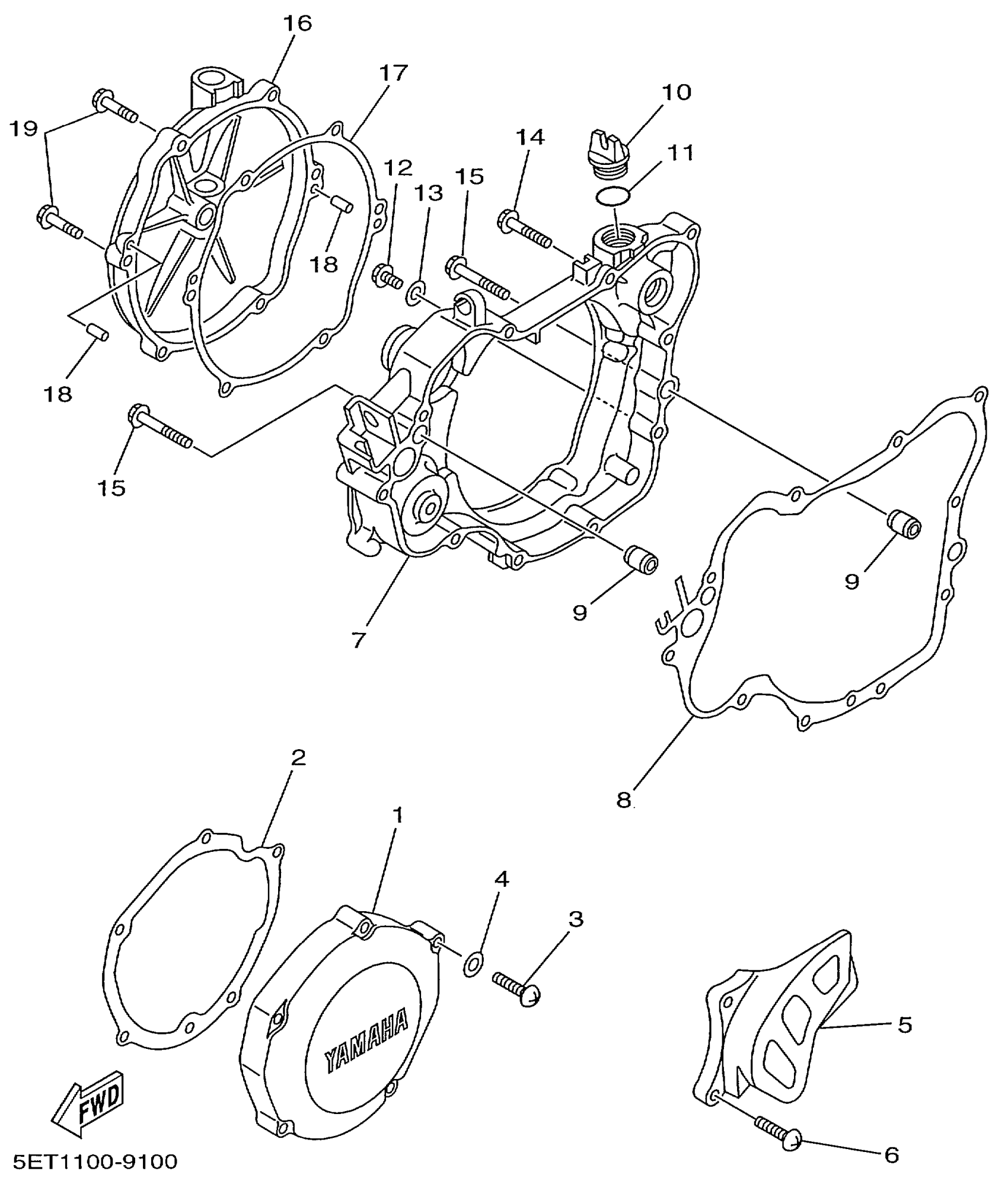

Yamaha YZ125L1 (YZ125) 5ET1 1999 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

4JY-15411-00-00

Unavailable

GASKET, CRANKCASE COVER 1

4JY-15451-01-00

$19.99

SCREW, PAN

98517-06030-00

Unavailable

WASHER(6TA)

92907-06600-00

$2.72

COVER, CRANKCASE 2

4EX-15421-00-00

Unavailable

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

COVER, CRANKCASE 3

4JY-15431-14-00

$246.99

GASKET, CRANKCASE COVER 3

4JY-15462-00-00

$25.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

PLUG, OIL

3Y1-15363-10-00

$18.49

O-RING (646)

93210-19123-00

Unavailable

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

GASKET 256113960000

90430-06014-00

Unavailable

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06040-00

$3.28

COVER, GENERATOR

4JY-15415-00-00

Unavailable

GASKET, CARBURETOR COVER 2

4JY-15463-01-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

Unavailable
