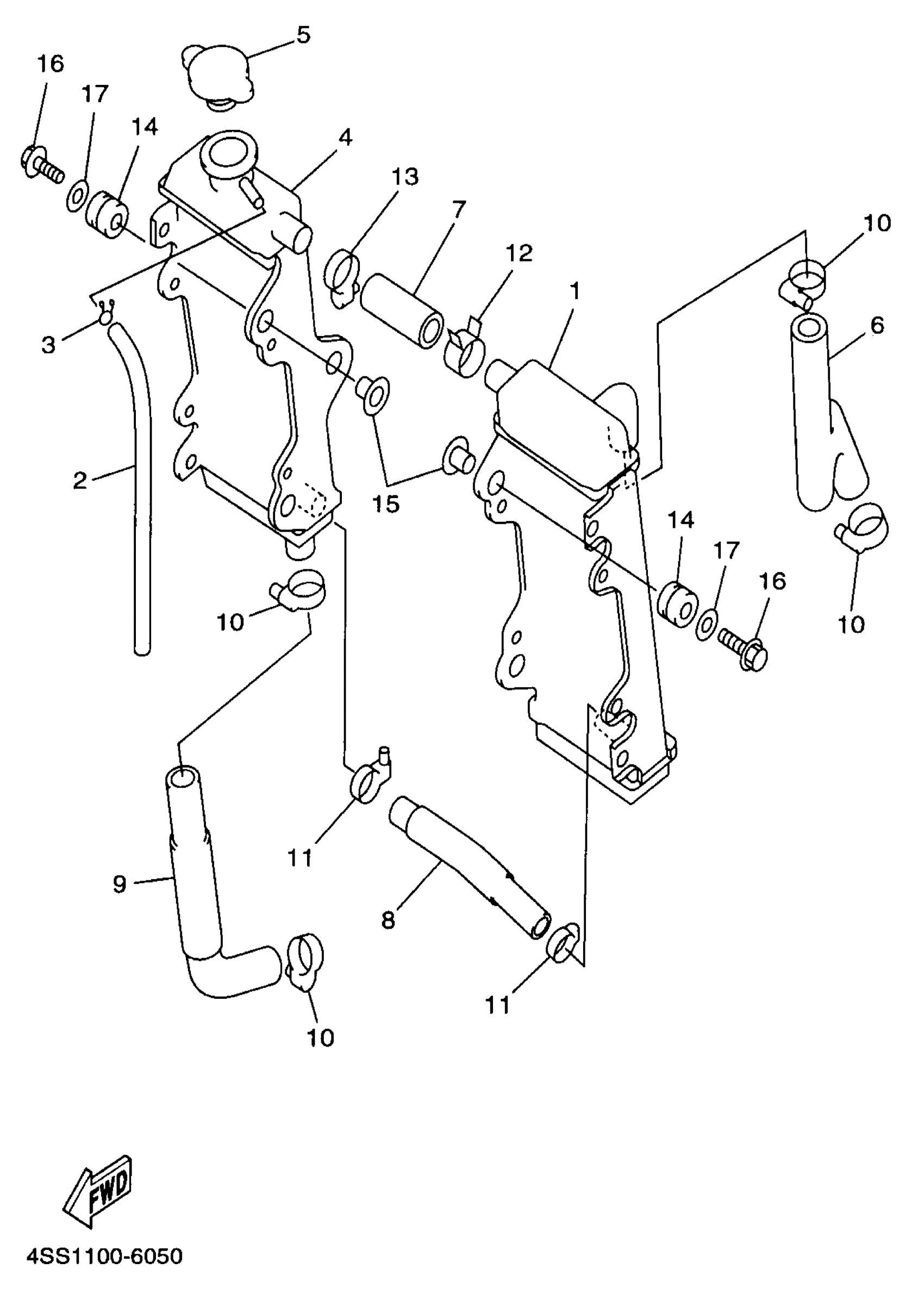

Yamaha YZ125K1 (YZ125) 5DH1 1998 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

4SS-1240A-10-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

3

CLIP

90467-090A2-00

$4.41

4

RADIATOR ASSY

4SS-12461-10-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$62.99

6

PIPE 1

4SS-12481-00-00

Unavailable

7

HOSE 2

5BE-12577-01-00

Unavailable

8

PIPE 3

4SS-12483-00-00

Unavailable

9

PIPE 4

4SS-12484-00-00

Unavailable

10

HOSE CLAMP ASSY

90450-28001-00

$14.99

11

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

12

CLIP

90467-21068-00

$7.49

13

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

14

GROMMET(3RB)

90480-15528-00

$8.49

15

COLLAR

90387-0614M-00

$11.49

16

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

17

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable
