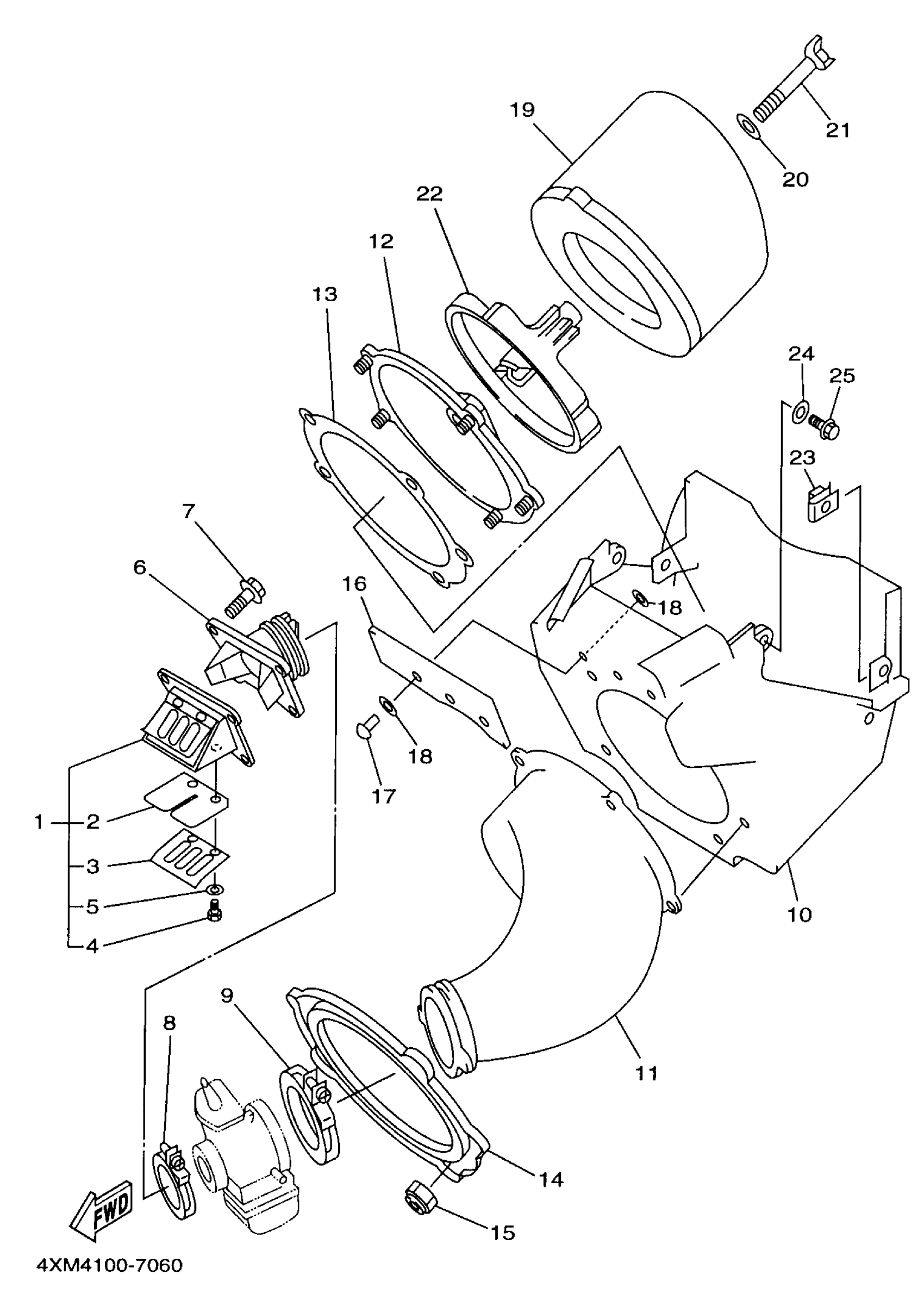

Yamaha YZ125K1 (YZ125) 5DH1 1998 INTAKE Diagram
#
Description
Price
1
REED VALVE ASSY
4SS-13610-00-00
Unavailable
2
. REED, VALVE
4SS-13613-00-00
Unavailable
3
. STOPPER, REED VALVE
4JY-13616-00-00
Unavailable
6
JOINT, CARBURETOR
4PE-13565-00-00
Unavailable
7
. BOLT, FLANGE
95027-06020-00
Unavailable
10
AIR CLEANER CASE A
4SS-14401-02-00
Unavailable
11
JOINT, AIR CLEANER 1
4SS-14453-00-00
Unavailable
12
HOLDER,GUIDE
3JD-14459-01-00
Unavailable
14
PLATE
5MV-14477-00-00
Unavailable
16
COVER 1
4SS-14417-00-00
Unavailable
17
RIVET (813)
90267-32070-00
Unavailable
18
WASHER, PLATE 8077743700
90201-03313-00
Unavailable
19
ELEMENT, AIR CLEANER
4XM-14451-01-00
Unavailable
20
WASHER (4H7)
90209-06096-00
Unavailable
21
BOLT, WING
90122-06005-00
Unavailable
22
GUIDE
3JD-14458-01-00
Unavailable
23
NUT, SPRING (26H)
90183-06023-00
Unavailable
24
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
25
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
