Description

Price

1

FRONT FRAME COMP.

5DH-21101-00-P0

Unavailable

2

REAR FRAME COMP.

5DH-21190-00-P0

Unavailable

3

BOLT (1W1)

90105-08099-00

$5.60

4

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

$10.49

5

BOLT, FLANGE(4MY)

95027-08040-00

$8.49

6

TENSIONER

4EW-22178-01-00

$15.49

7

BEARING (3X3)

93300-60804-00

$12.49

8

COLLAR(1NL)

90387-086N4-00

$9.49

9

BOLT, FLANGE

95027-08065-00

$10.49

10

NUT, FLANGE(JN5)

95707-08500-00

$3.13

11

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

12

TENSIONER

3JD-22178-20-00

$43.99

13

BOLT,FLANGE

95817-10090-00

$9.49

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

BOLT, WASHER BASED(3RB)

90105-10733-00

$4.51

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

17

BRACKET, REAR UPPER 1

4SS-21425-00-00

Unavailable

18

BOLT, FLANGE

95817-08050-00

Unavailable

19

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

20

BOLT, WASHER BASED

90105-08225-00

Unavailable

21

NUT, SELF-LOCKING

90185-08169-00

Unavailable

22

BRACKET, C.D.I. UNIT

5DH-21274-00-00

Unavailable

23

PLUG(55K)

90338-16148-00

Unavailable

24

PLUG(8CJ)

90338-30256-00

Unavailable

25

PLUG (7Y6)

90338-21145-00

Unavailable

26

WRENCH, HEXAGON

56A-28166-00-00

Unavailable

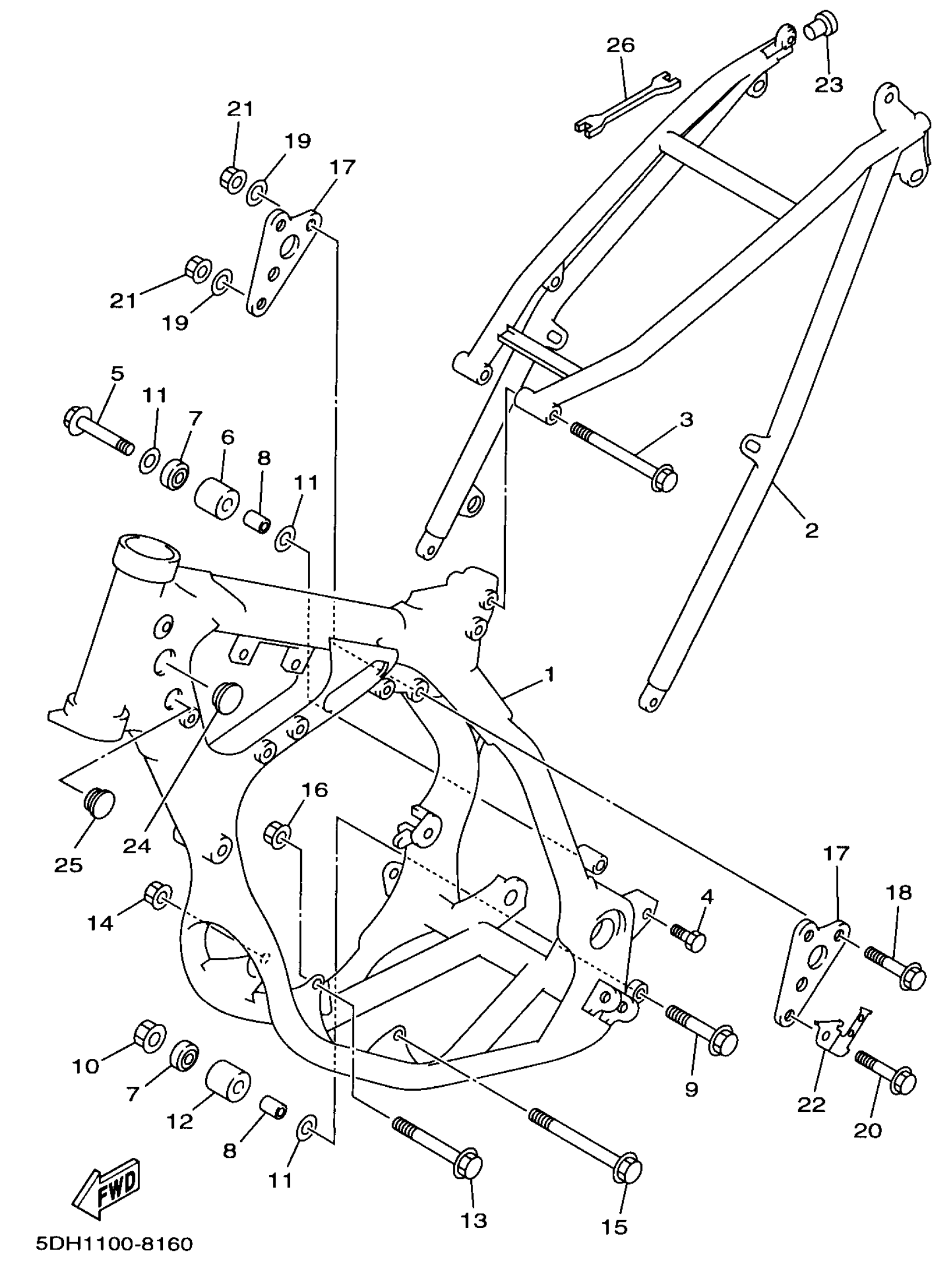

Yamaha YZ125K1 (YZ125) 5DH1 1998 FRAME Diagram

FRONT FRAME COMP.

REAR FRAME COMP.

BOLT (1W1)

BOLT, HEXAGON SOCKET HEAD(53Y)

BOLT, FLANGE(4MY)

TENSIONER

BEARING (3X3)

COLLAR(1NL)

BOLT, FLANGE

NUT, FLANGE(JN5)

WASHER, PLATE(3XP)

TENSIONER

BOLT,FLANGE

NUT, SELF-LOCKING(JN5)

BOLT, WASHER BASED(3RB)

NUT, SELF-LOCKING(JN5)

BRACKET, REAR UPPER 1

BOLT, FLANGE

WASHER, PLATE (12X)

BOLT, WASHER BASED

NUT, SELF-LOCKING

BRACKET, C.D.I. UNIT

PLUG(55K)

PLUG(8CJ)

PLUG (7Y6)

WRENCH, HEXAGON
