Description

Price

1

FENDER, FRONT

4DA-21511-20-00

Unavailable

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM, YAMAHA

99241-00080-00

$13.99

5

FENDER, REAR

5BE-21611-10-00

$59.99

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

7

BOLT, SMALL FLANGE

95027-06030-00

$3.98

8

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

9

NUT, SPRING (26H)

90183-06023-00

$9.49

10

COLLAR(4EW)

90387-0701A-00

$9.49

11

GUARD, FLAP

4ES-21642-01-00

$37.99

12

. BOLT, FLANGE

95027-06020-00

Unavailable

13

COLLAR

90387-06009-00

$10.49

14

SCREW, TRUSS TAP.

97707-60016-00

$1.70

15

WASHER, PLATE

90201-06557-00

$3.30

16

EMBLEM, YAMAHA

99241-00080-00

$13.99

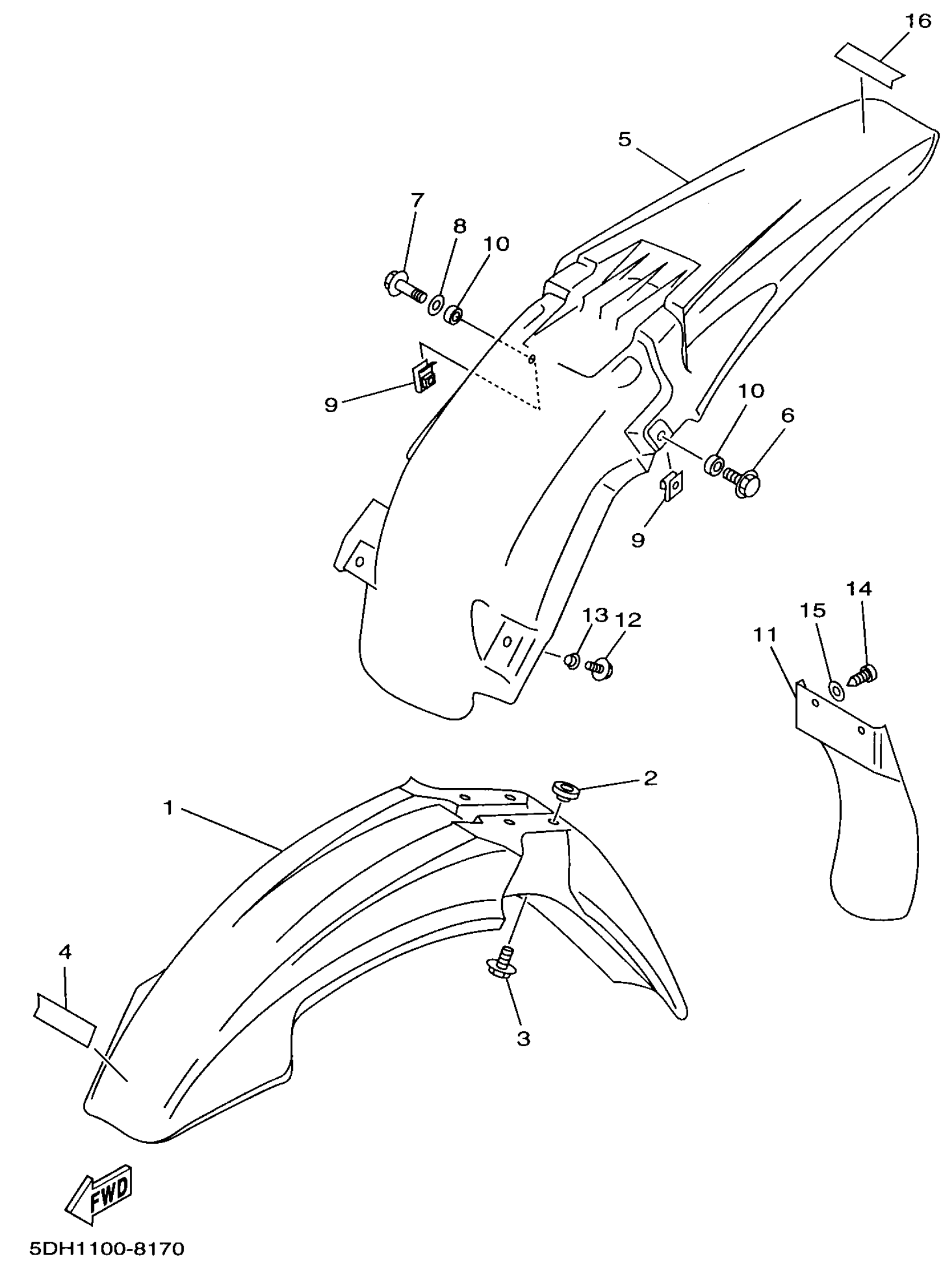

Yamaha YZ125K1 (YZ125) 5DH1 1998 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM, YAMAHA

FENDER, REAR

BOLT, FLANGE(4MY)

BOLT, SMALL FLANGE

WASHER, PLATE(36Y)

NUT, SPRING (26H)

COLLAR(4EW)

GUARD, FLAP

. BOLT, FLANGE

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM, YAMAHA
