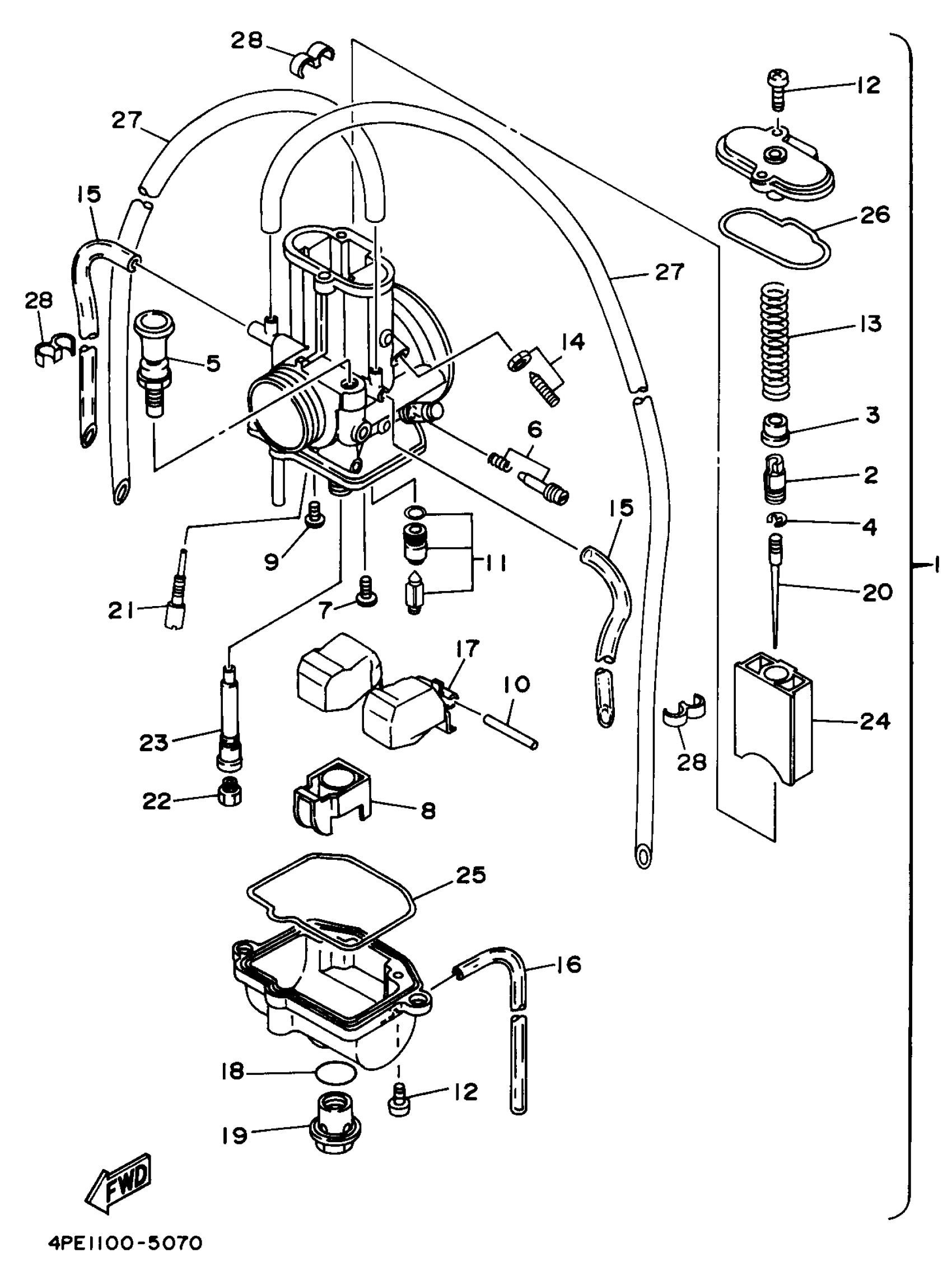

Yamaha YZ125K1 (YZ125) 5DH1 1998 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

5DH-14101-10-00

Unavailable

2

HOLDER

4PE-14261-01-00

$27.99

3

RING

4PE-14194-00-00

$10.99

4

CLIP

256-14919-00-00

$6.99

5

PLUNGER, STARTER

3JE-14171-00-00

$72.99

6

AIR SCREW SET

4GL-14104-00-00

$10.99

7

SCREW

1FN-14565-00-00

$7.99

8

. PLATE

4PE-14243-00-00

Unavailable

9

SCREW, PAN HEAD(JG1)

98507-04008-00

$2.14

10

PIN, FLOAT

353-14186-00-00

$7.99

11

NEEDLE VALVE SET

4PE-14107-38-00

$42.99

12

SCREW, PAN HEAD

98517-04012-00

$3.88

13

SPRING, THROTTLE VALVE

4PE-14131-00-00

$16.49

14

THROTTLE SCREW SET

4PE-14103-00-00

$20.99

15

PIPE, OVER FLOW

2J2-14196-00-00

$35.99

16

PIPE 1

3XV-14348-20-00

Unavailable

17

. FLOAT

4PE-14185-00-00

Unavailable

18

O-RING

3JE-14561-00-00

Unavailable

19

PLUG,SCREW

4DP-14115-00-00

Unavailable

20

. NEEDLE (6BEF16-67)

5A0-14116-F0-00

Unavailable

20

. NEEDLE (6BEF16-68)

5A0-14116-F1-00

Unavailable

20

. NEEDLE (6BEF16-69)

5A0-14116-F2-00

Unavailable

20

. NEEDLE (6BEF16-70)

5A0-14116-F3-00

Unavailable

20

. NEEDLE (6BEF16-71)

5A0-14116-F4-00

Unavailable

21

JET, PILOT (# 40)

4KM-14142-40-00

Unavailable

21

JET, PILOT (# 45)

4KM-14142-45-00

Unavailable

21

JET, PILOT (# 50)

4KM-14142-50-00

Unavailable

21

. JET, PILOT (# 55)

4KM-14142-55-00

Unavailable

21

. JET, PILOT (# 60)

4KM-14142-60-00

Unavailable

21

. JET, PILOT (# 65)

4KM-14142-65-00

Unavailable

22

JET, MAIN #330

137-14143-66-A1

Unavailable

22

JET,MAIN #340

137-14143-68-00

Unavailable

22

JET,MAIN #350

137-14143-70-00

Unavailable

22

JET,MAIN #360

137-14143-72-00

Unavailable

22

JET,MAIN #370

137-14143-74-00

Unavailable

23

. NOZZLE, MAIN (S-5)

3TC-14141-S5-00

Unavailable

23

. NOZZLE, MAIN (S-6)

3TC-14141-S6-00

Unavailable

23

. NOZZLE, MAIN (S-7)

3TC-14141-S7-00

Unavailable

23

. NOZZLE, MAIN (S-8)

3TC-14141-S8-00

Unavailable

23

. NOZZLE, MAIN (S-9)

3TC-14141-S9-00

Unavailable

23

. NOZZLE, MAIN (T-0)

3TC-14141-T0-00

Unavailable

24

. VALVE, THROTTLE (CA45)

4SS-14112-45-00

Unavailable

24

. VALVE, THROTTLE (CA50)

4SS-14112-50-00

Unavailable

24

. VALVE, THROTTLE (CA55)

4SS-14112-55-00

Unavailable

25

O-RING

4PE-1416A-00-00

Unavailable

26

. O-RING

4PE-14147-00-00

Unavailable

27

. PIPE, AIR VENT

4PE-14197-00-00

Unavailable

28

CLIP

87M-14137-00-00

Unavailable
