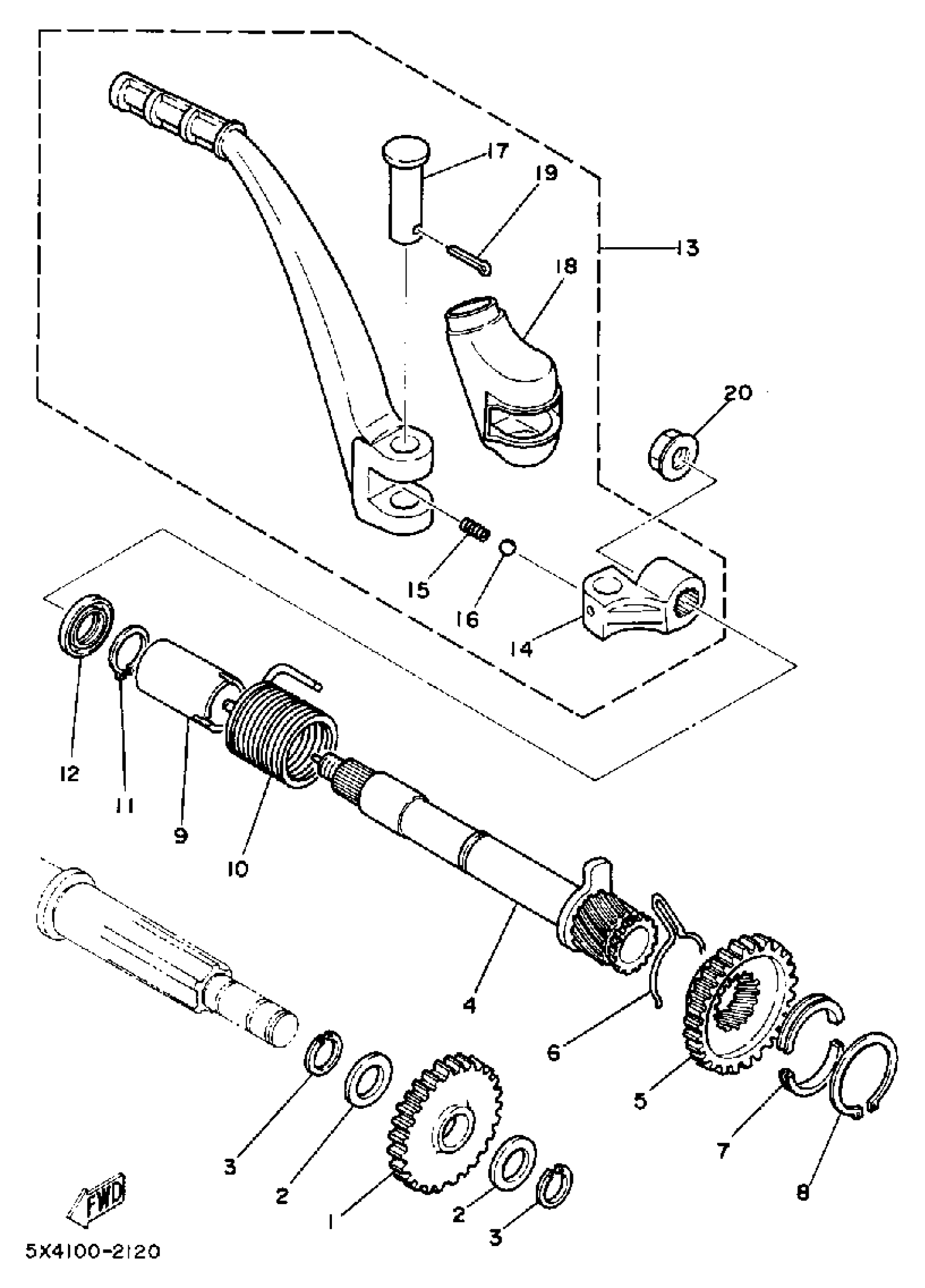

Yamaha YZ125K (YZ125K_L) 1983 STARTER Diagram
#
Description
Price
1
GEAR, KICK IDLE
3R3-15651-01-00
Unavailable
4
KICK AXLE ASSEMBLY
39W-15660-00-00
Unavailable
5
GEAR, KICK
3R3-15641-00-00
Unavailable
9
SPACER
3R3-15666-00-00
Unavailable
10
SPRING, TORSION
90508-26427-00
Unavailable
13
KICK CRANK ASSEMBLY
55Y-15620-00-00
Unavailable
14
BOSS,KICK CRANK
39W-15621-01-00
Unavailable
14
BOSS,KICK CRANK
39W-15621-01-00
Unavailable
15
SPRING COMPRESSION278156220000
90501-12081-00
Unavailable
16
BALL (12R)
93507-32031-00
Unavailable
17
. PIN, CLEVIS
90240-12090-00
Unavailable
18
. COVER, KICK LEVER
5X4-15618-00-00
Unavailable
19
. PIN, COTTER
91401-40020-00
Unavailable
20
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
