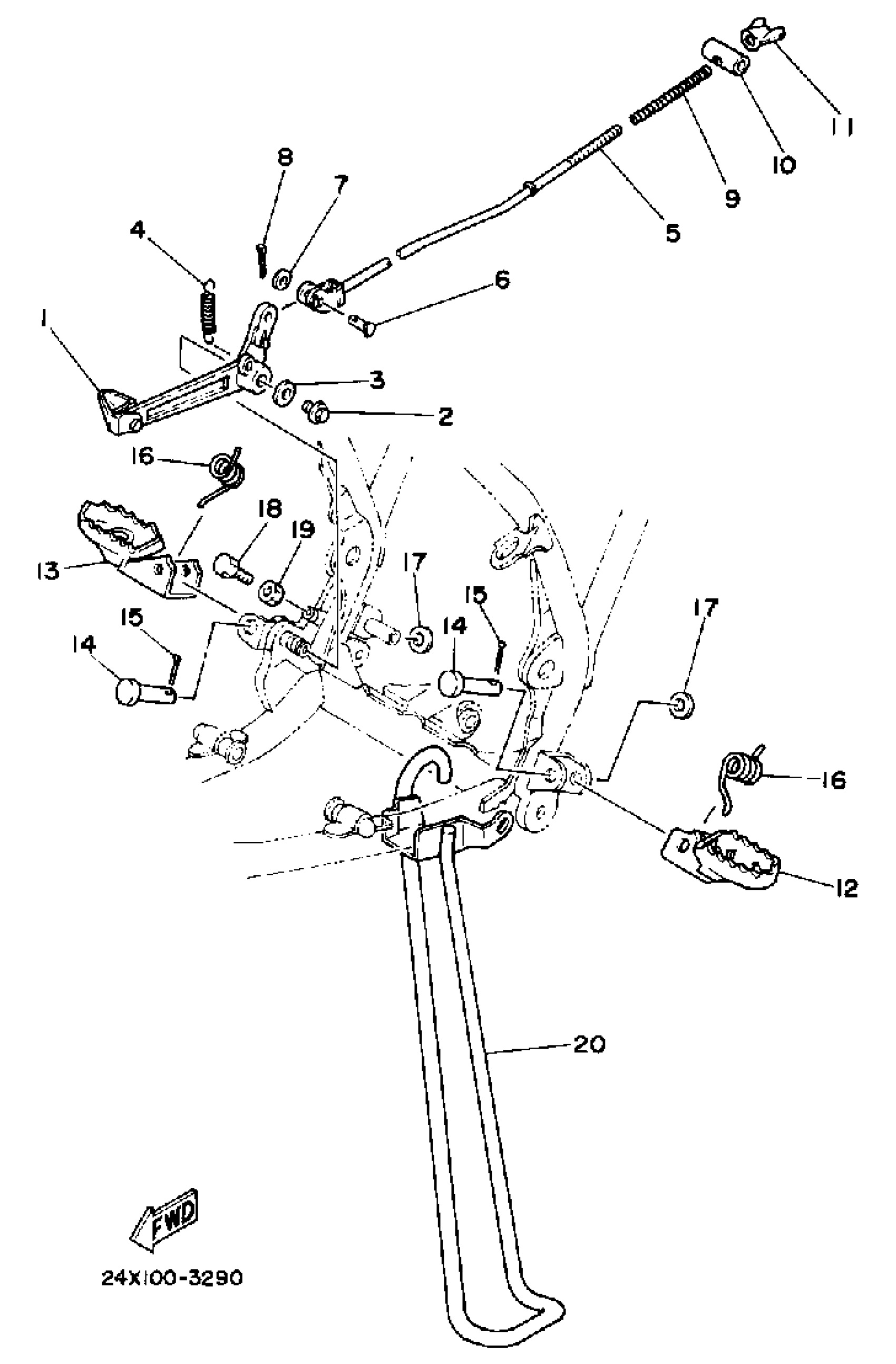

Yamaha YZ125K (YZ125K_L) 1983 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

24X-27200-00-00

Unavailable

1

PEDAL, BRAKE

55Y-27200-00-00

Unavailable

2

BOLT, FLANGE

95817-08012-00

$5.49

3

WASHER, PLATE (12X)

90201-087F0-00

$5.60

4

SPRING, TENSION (2X4)

90506-20192-00

$7.49

5

ROD, BRAKE

24X-27231-00-00

Unavailable

5

ROD, BRAKE

39W-27231-00-00

Unavailable

6

PIN, CLEVIS (24X)

90240-06103-00

$7.49

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, (180-27236-00)

90501-10245-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

NUT, WING (1K5)

90175-06013-00

$4.88

12

FOOTREST 1

23X-27411-03-00

Unavailable

13

FOOTREST 2

23X-27421-04-00

Unavailable

14

PIN, CLEVIS (23X)

90240-10101-00

Unavailable

15

PIN, COTTER

91490-25020-00

Unavailable

16

SPRING, TORSION (23X)

90508-20583-00

Unavailable

17

WASHER, PLAIN(735)

90201-10119-00

Unavailable

18

BOLT, HEXAGON

97017-06025-00

Unavailable

18

BOLT (3Y2)

90101-06478-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

STAND, SIDE

24X-27311-00-00

Unavailable

20

STAND, SIDE

39W-27311-00-00

Unavailable
