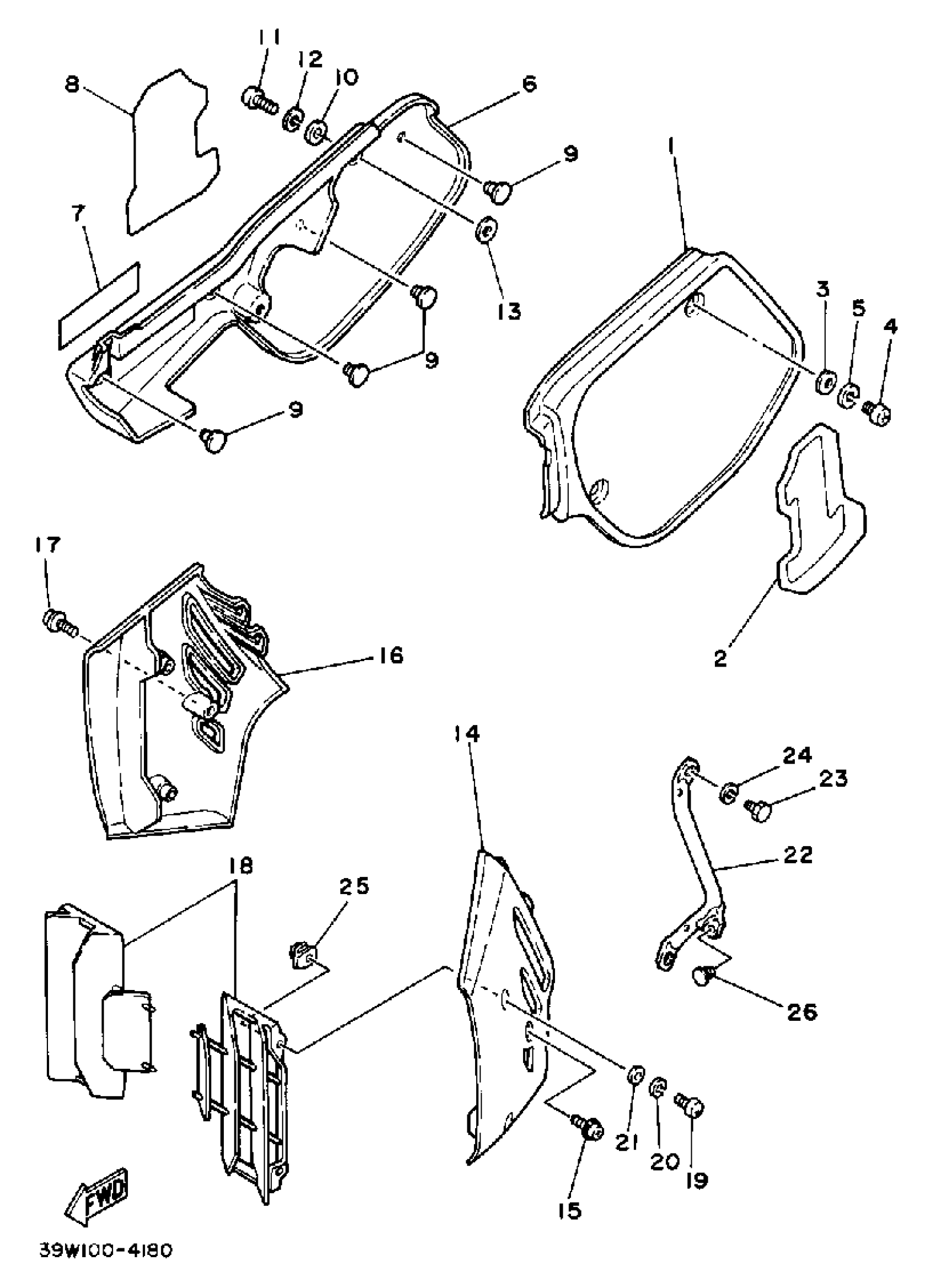

Yamaha YZ125K (YZ125K_L) 1983 SIDE COVER L Diagram

#

Description
Price

1

COVER SIDE 1

39W-21711-01-98

Unavailable

2

EMBLEM 2

3R2-21782-00-00

Unavailable

3

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

4

SCREW, PAN

98507-06014-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

COVER, SIDE 2

39W-21721-00-98

Unavailable

7

EMBLEM

39W-21737-00-00

Unavailable

8

EMBLEM 2

3R2-21782-00-00

Unavailable

9

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

10

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

11

SCREW, PAN

98507-06014-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLAIN

92990-08200-00

Unavailable

14

COVER, SIDE 3

39W-21731-00-00

Unavailable

15

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

16

COVER, SIDE 4

39W-21741-01-00

Unavailable

17

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

18

PANEL 1

24X-2172A-01-00

Unavailable

19

SCREW, PAN HEAD

98517-05030-00

Unavailable

20

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

21

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

22

GUARD, RADIATOR

(39W-2174F-00-00)

Unavailable

23

BOLT(JA9)

90101-08691-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

NUT

22W-21791-00-00

Unavailable

26

DAMPER, RADIATOR

24X-12465-00-00

Unavailable
