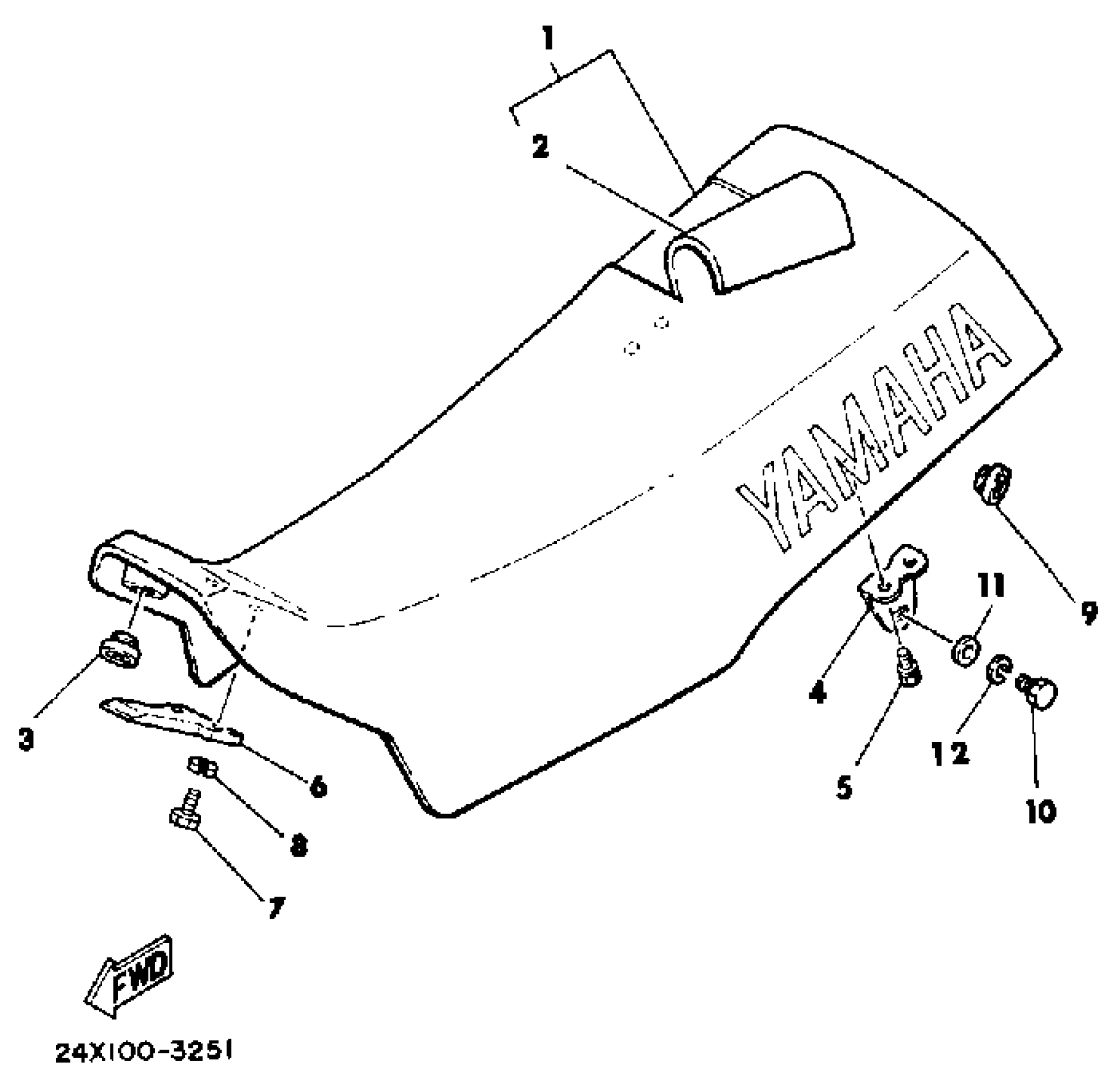

Yamaha YZ125K (YZ125K_L) 1983 SEAT L Diagram

#

Description
Price

1

SEMI-DBL SEAT ASSEMBLY

39W-W2473-10-00

Unavailable

2

COVER,DOUBLE SEAT

24X-24731-10-00

Unavailable

3

DAMPER, SEAT

509-24724-00-00

$8.84

4

BRACKET,SEAT

39W-24738-00-00

Unavailable

5

BOLT, FLANGE

95817-06012-00

$1.40

6

. BRACKET, SEAT

5X6-24748-10-00

Unavailable

7

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

DAMPER, SEAT

509-24724-00-00

$8.84

10

BOLT(JA9)

90101-08691-00

$4.65

11

WASHER, PLATE (12X)

90201-087F0-00

$3.46

12

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23
