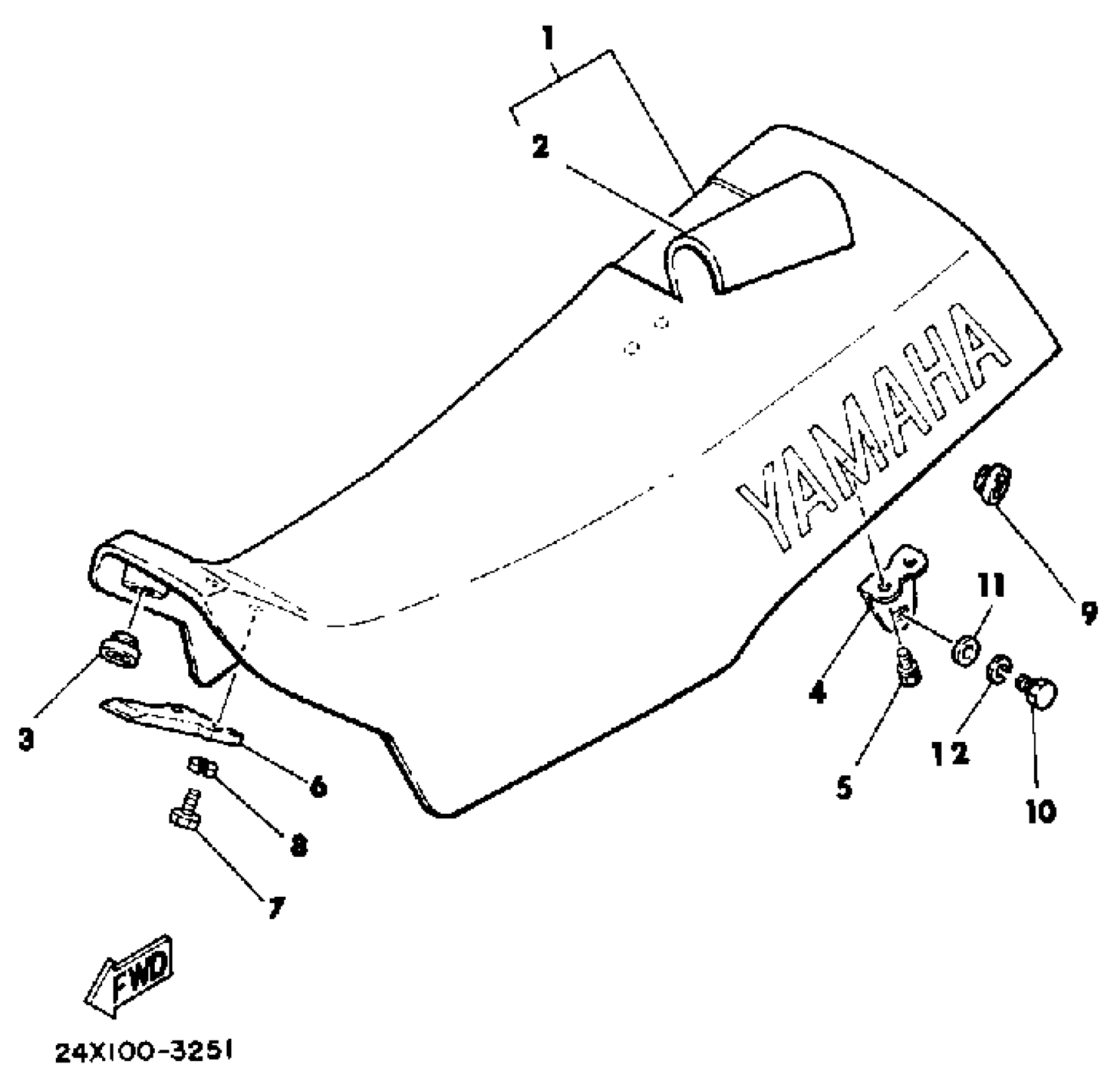

Yamaha YZ125K (YZ125K_L) 1983 SEAT K Diagram

#

Description
Price

1

SEMI-DBL SEAT ASSEMBLY

24X-W2473-10-00

Unavailable

2

COVER,DOUBLE SEAT

24X-24731-10-00

Unavailable

3

PAD, SEAT

22W-24741-00-00

$7.20

4

BRACKET,SEAT

39W-24738-00-00

Unavailable

5

BOLT, FLANGE

95817-06012-00

$1.40

6

DAMPER, SEAT

509-24724-00-00

$8.84

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, SPRING

92995-06100-00

$2.95

9

WASHER, PLATE

90201-06380-00

$0.54
