- YZ125K (YZ125K_L) 1983
REAR WHEEL

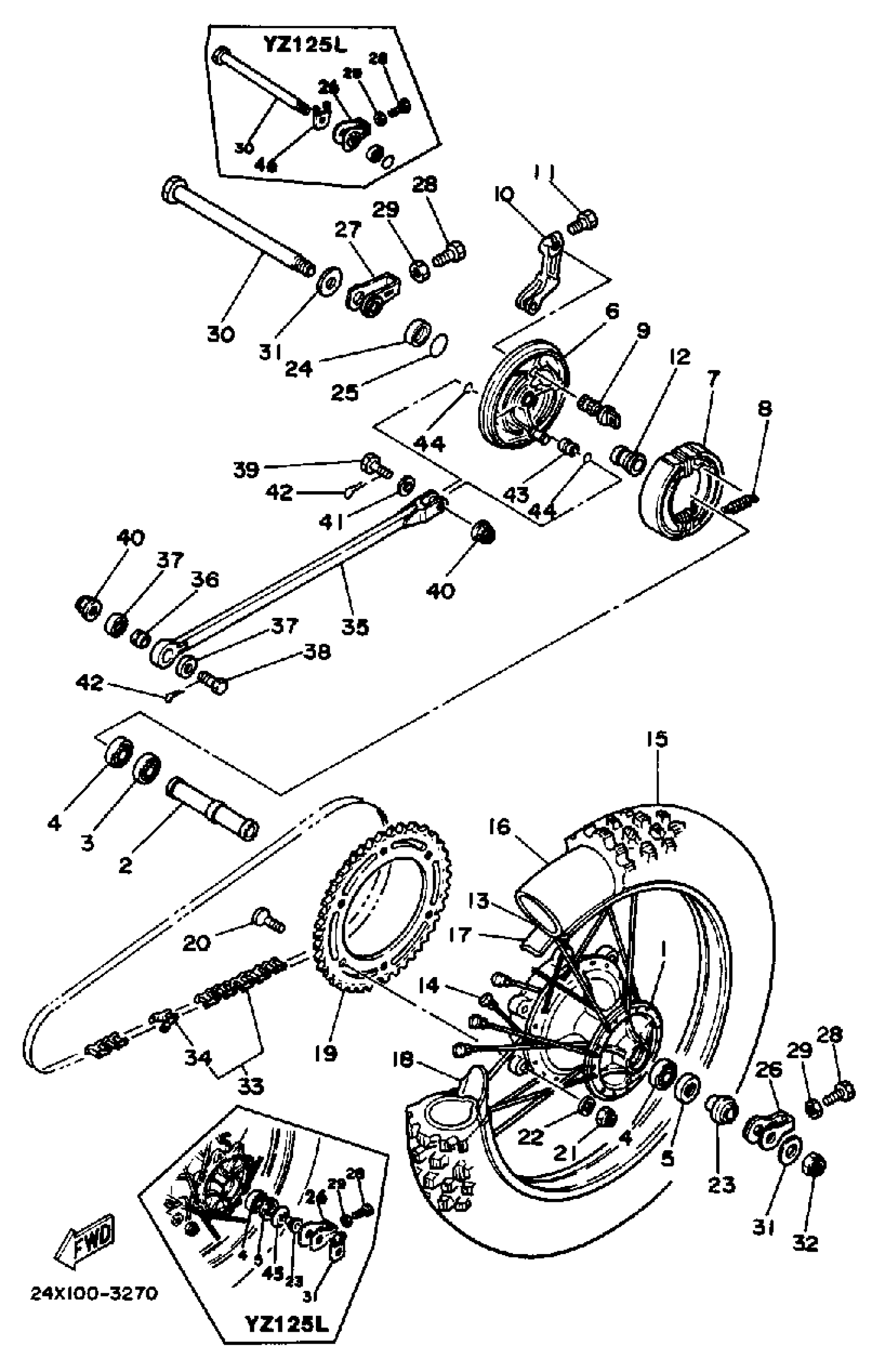

Yamaha YZ125K (YZ125K_L) 1983 REAR WHEEL Diagram
#
1
HUB, REAR
24X-25311-00-98
Unavailable
1
HUB, REAR
55Y-25311-00-98
Unavailable
2
SPACER
90560-17231-00
Unavailable
5
OIL SEAL, DD-TYPE
93106-25022-00
Unavailable
6
PLATE, BRAKE SHOE
24X-25321-00-98
Unavailable
8
SPRING (5T9)
90506-17328-00
Unavailable
9
CAMSHAFT
49T-25351-00-00
Unavailable
10
LEVER, CAMSHAFT
5X4-25355-00-00
Unavailable
12
COLLAR
90387-210H8-00
Unavailable
13
RIM 1.85X18
94418-18355-00
Unavailable
13
RIM 1.85
94418-18437-00
Unavailable
14
SPOKE SET, REAR
24X-25304-00-00
Unavailable
14
SPOKE SET, REAR
39W-25304-00-00
Unavailable
15
120/80-18 M22 (TT)
(94112-180F3-00)
Unavailable
15
140/80-18 M32 TT
(94114-187A3-00)
Unavailable
16
TUBE
(94211-18209-00)
Unavailable
16
TUBE
(94212-18230-00)
Unavailable
17
BAND, RIM (2J4)
94340-18086-00
Unavailable
17
BAND, RIM (2J4)
94340-18086-00
Unavailable
18
SPACER, BEAD
2X3-25394-00-00
Unavailable
18
SPACER, BEAD
39W-25394-00-00
Unavailable
19
SPROCKET, DRIVEN 44T
3R4-25444-01-XX
Unavailable
19
SPROCKET, DRIVEN (45T) (39W-25445-01-00)
3R4-25445-01-XX
Unavailable
19
SPROCKET, DRIVEN 46T
3R4-25446-01-XX
Unavailable
19
SPROCKET, DRIVEN 48T
3R4-25448-01-XX
Unavailable
19
SPROCKET, DRIVEN 50T
3R4-25450-01-XX
Unavailable
19
SPROCKET, DRIVEN 52T
3R4-25452-01-XX
Unavailable
20
BOLT(1TJ)
90109-081G2-00
Unavailable
21
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
22
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
23
COLLAR, WHEEL
24X-25383-00-00
Unavailable
23
COLLAR
90387-170H9-00
Unavailable
24
COVER, PLATE
275-25327-00-00
Unavailable
25
O-RING
93210-31MJ5-00
Unavailable
26
PULLER, CHAIN 1
39W-25388-00-00
Unavailable
26
PULLER, CHAIN 1
39W-25388-00-00
Unavailable
27
PULLER, CHAIN 1
39W-25388-00-00
Unavailable
28
BOLT
90101-08060-00
Unavailable
29
. NUT
95380-08700-00
Unavailable
30
AXLE, WHEEL
24X-25381-00-00
Unavailable
31
WASHER, PLATE
90201-170G8-00
Unavailable
31
UNAVAILABLE IN PRICE BOOK
90209-16249-00
Unavailable
32
NUT, SELF-LOCKING
90185-16103-00
Unavailable
33
520 DS 106L
94585-20106-00
Unavailable
33
520 DS 110L
94585-20110-00
Unavailable
34
. JOINT, CHAIN
94680-49001-00
Unavailable
34
JOINT, CHAIN
94681-68001-00
Unavailable
35
BAR, TENSION
24X-25371-00-00
Unavailable
35
BAR, TENSION
39W-25371-00-00
Unavailable
36
BEARING,SPECIAL
23X-253N4-09-00
Unavailable
37
OIL SEAL
93112-19006-00
Unavailable
38
BOLT, WITH HOLE
90102-08034-00
Unavailable
39
BOLT
90109-08370-00
Unavailable
40
NUT, SELF-LOCKING
90185-08169-00
Unavailable
41
.. WASHER, PLATE
92990-08600-00
Unavailable
42
PIN, COTTER
91490-20025-00
Unavailable
43
COLLAR
90387-083F0-00
Unavailable
44
O-RING (648)
93210-14167-00
Unavailable
45
COVER, HUB DUST
24X-25367-00-00
Unavailable
46
WASHER, SPECIAL SHAP
90209-17245-00
Unavailable
