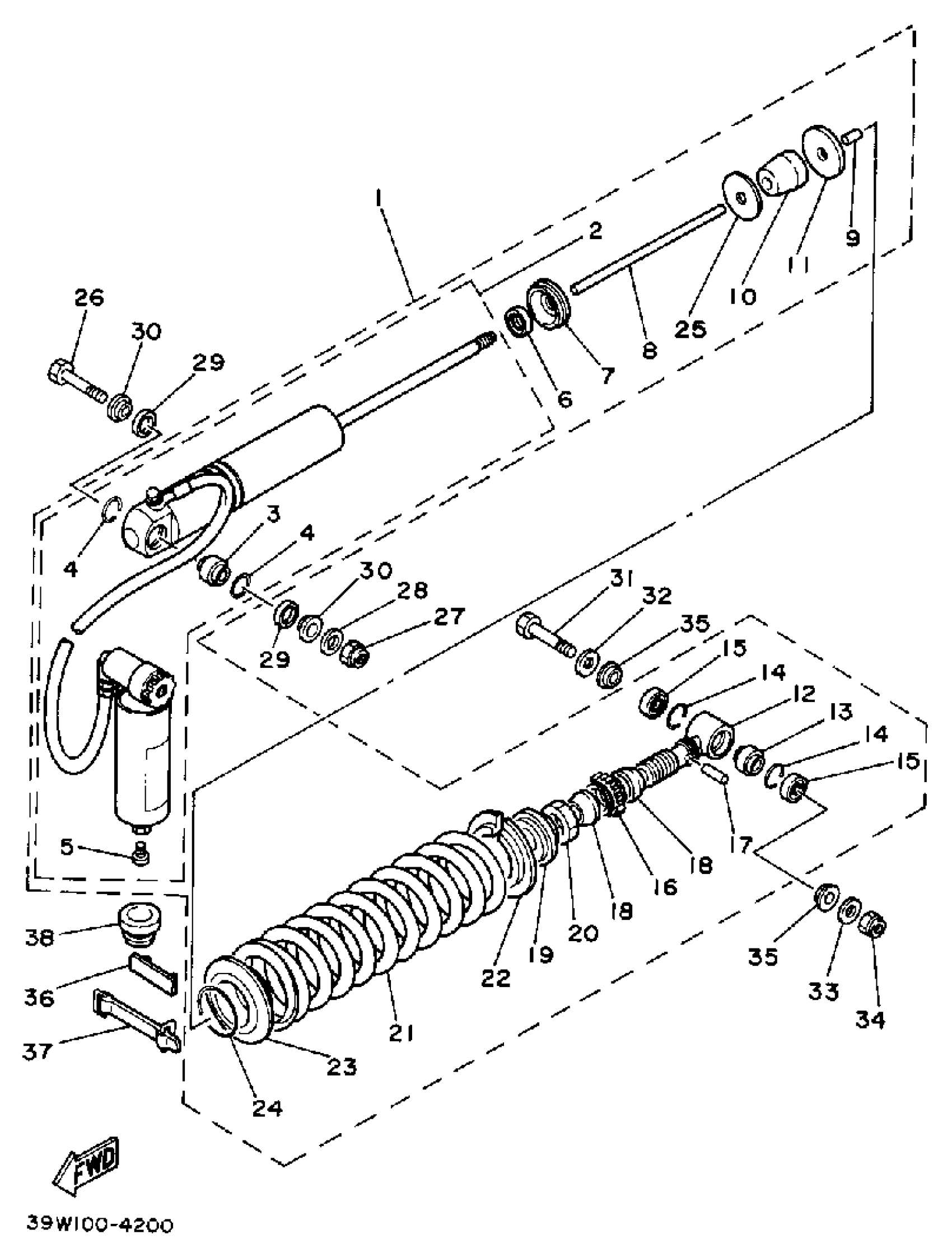

Yamaha YZ125K (YZ125K_L) 1983 REAR SHOCKS K Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

24X-22210-00-6W

Unavailable

2

DAMPER SUB-ASSEMBLY.

(24X-22401-00-00)

Unavailable

3

CIRCLIP (23X)

93440-30113-00

$1.70

4

BEARING(4GG)

93399-999T3-00

$62.99

5

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

6

SEAL,DUST

23X-22475-01-00

Unavailable

7

. CAP, CASE 001

26A-22472-00-00

Unavailable

8

. ROD, PUSH

23X-22489-00-00

Unavailable

9

BUMP, STOP

(23X-22493-00-00)

Unavailable

10

. SUPPORT, BUMP STOP

3R4-22228-00-00

Unavailable

11

. UPPER BRACKET SUB ASSEMBLY

23X-22409-00-00

Unavailable

12

BEARING(4GG)

93399-999T3-00

$62.99

13

. NUT, ADJUSTING

5X3-22497-00-00

Unavailable

14

. PIN, DOWEL

93604-26132-00

Unavailable

15

. COVER

3R4-22221-01-00

Unavailable

16

. SEAT, SPRING UPPER

23X-22213-00-00

Unavailable

17

NUT, HEXAGON (29L)

90170-20320-00

Unavailable

18

. WASHER, WAVE

90206-14067-00

Unavailable

19

. PIN, DOWEL

93604-21193-00

Unavailable

20

CIRCLIP (23X)

93440-30113-00

$1.70

21

OIL SEAL (23X)

93104-18077-00

Unavailable

22

. SPRING, MXS STD

24X-22212-00-26

Unavailable

22

SPRING, MXS SOFT

(24X-22212-10-26)

Unavailable

22

SPRING, MXS HARD

24X-22212-20-26

Unavailable

23

. GUIDE, SPRING 1

23X-22214-00-00

Unavailable

24

. SEAT, SPRING LOWER

23X-22223-00-00

Unavailable

25

. CIRCLIP

93440-51103-00

Unavailable

26

BOLT

90109-10704-00

Unavailable

27

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

28

WASHER (7A9)

90201-100F7-00

Unavailable

29

COVER

23X-22211-00-00

Unavailable

30

COLLAR (23X)

90387-127G8-00

Unavailable

31

BOLT

90109-10700-00

Unavailable

32

WASHER, PLATE

90201-12027-00

Unavailable

33

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

34

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

35

COLLAR (23X)

90387-126H8-00

Unavailable

36

DAMPER, SUB TANK

24X-22261-00-00

Unavailable

37

HOLDER, SUB TANK

24X-22262-00-00

Unavailable

38

GROMMET (3R4)

90480-22263-00

Unavailable
