Description

Price

1

RADIATOR ASSEMBLY

39W-12460-01-00

Unavailable

1

BAND (MADE IN CANADA)

90460-15227-00

$18.99

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

3

CLIP

90467-090A2-00

$4.41

4

RADIATOR ASSEMBLY 2

39W-1240A-01-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$62.99

6

PIPE 1

39W-12481-00-00

Unavailable

7

PIPE 2

39W-12482-00-00

Unavailable

8

PIPE 3

39W-12483-00-00

Unavailable

9

PIPE 4

39W-12484-00-00

Unavailable

10

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

11

CLAMP, HOSE

90460-22252-00

Unavailable

12

GROMMET(663)

90480-15064-00

$9.49

13

COLLAR(2UJ)

90387-061V1-00

$8.49

14

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

15

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

16

BOLT(3RV)

97014-06035-00

Unavailable

17

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

18

PIPE 5

39W-12485-00-00

Unavailable

19

PIPE 6

39W-12476-00-00

Unavailable

20

PIPE 7

39W-12477-00-00

Unavailable

21

PIPE 8

1LX-1248A-00-00

Unavailable

22

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

23

JOINT 1

24Y-12469-00-00

Unavailable

24

GROMMET (4L0)

90480-18276-00

Unavailable

25

COLLAR

90387-06113-00

Unavailable

26

BOLT, HEXAGON

97017-06020-00

Unavailable

27

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

28

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

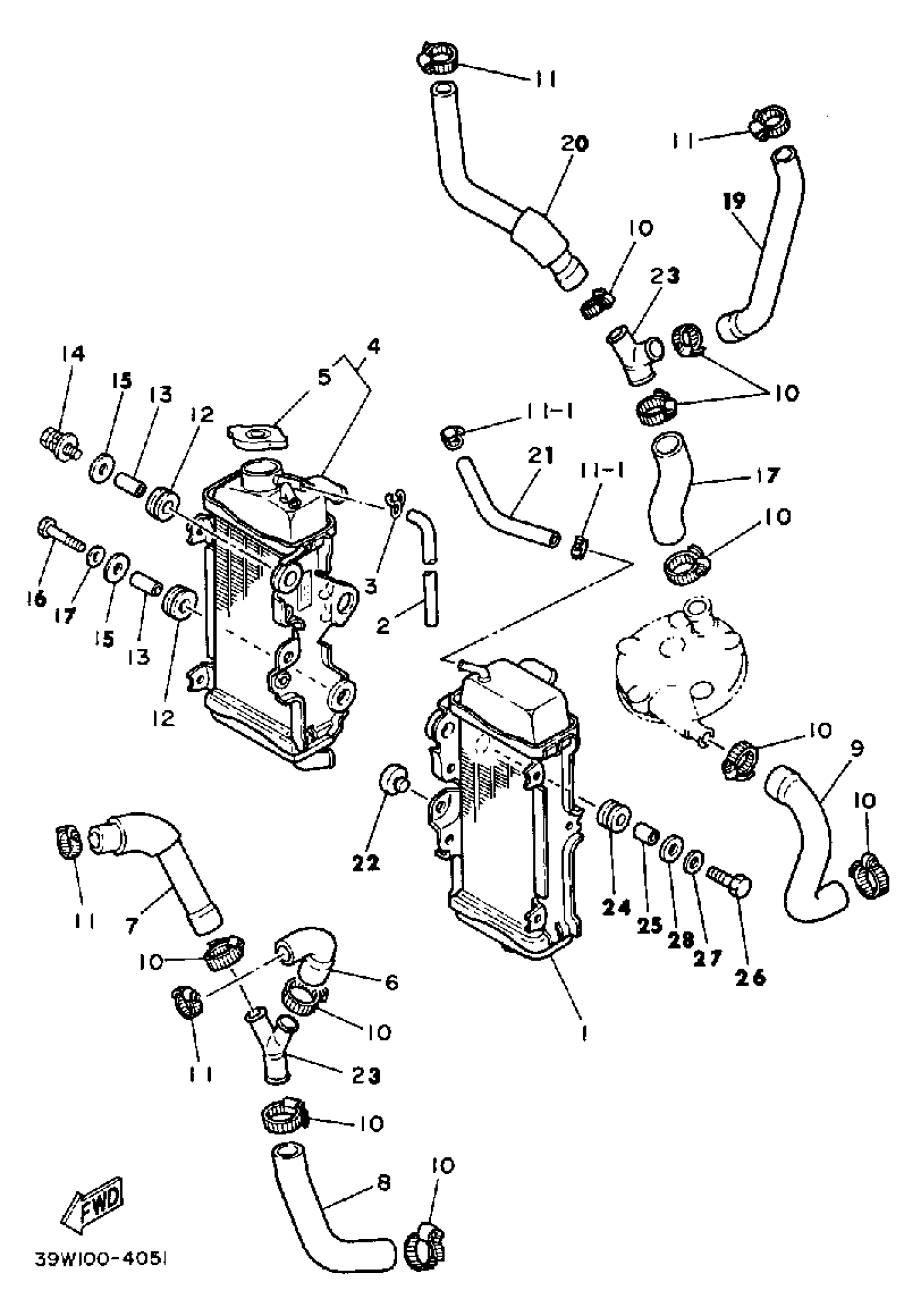

Yamaha YZ125K (YZ125K_L) 1983 RADIATOR HOSE L Diagram

RADIATOR ASSEMBLY

BAND (MADE IN CANADA)

TUBE, FLEXIBLE VINYL(8AK)

CLIP

RADIATOR ASSEMBLY 2

CAP, RADIATOR

PIPE 1

PIPE 2

PIPE 3

PIPE 4

HOSE CLAMP ASSY(3GM)

CLAMP, HOSE

GROMMET(663)

COLLAR(2UJ)

BOLT, WITH WASHER (24X)

WASHER, PLATE (583 FUEL TANK)

BOLT(3RV)

WASHER, PLATE (4H7)

PIPE 5

PIPE 6

PIPE 7

PIPE 8

DAMPER, LOCATING 1

JOINT 1

GROMMET (4L0)

COLLAR

BOLT, HEXAGON

WASHER, PLATE (4H7)

WASHER, PLATE (583 FUEL TANK)
