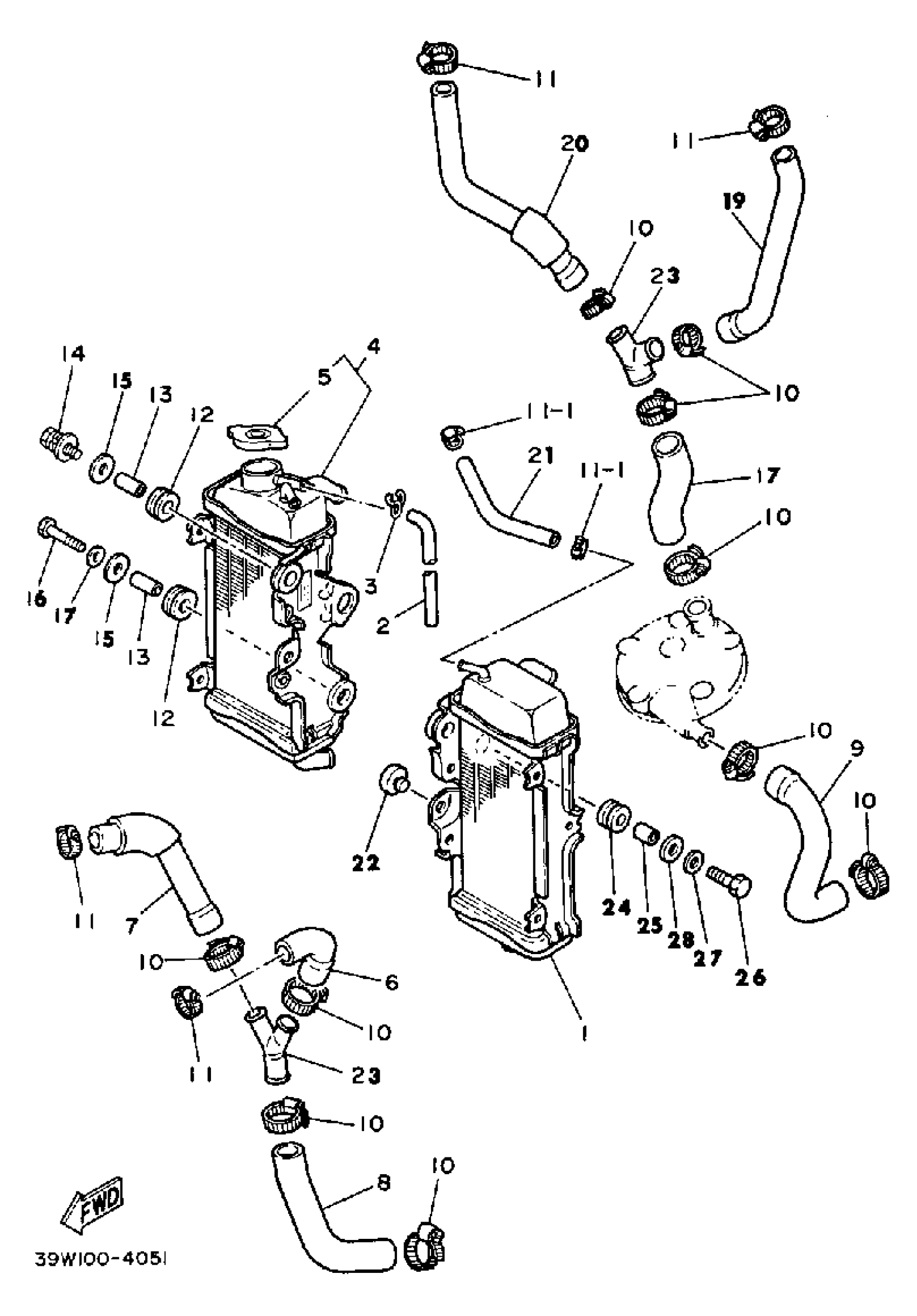

Yamaha YZ125K (YZ125K_L) 1983 RADIATOR HOSE K Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

24X-12460-00-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$53.09

3

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$11.73

4

CLIP

90467-090A2-00

$2.47

5

RADIATOR ASSEMBLY 2

(24X-1240A-00-00)

Unavailable

6

PIPE 1

24X-12481-00-00

Unavailable

7

PIPE 2

24X-12482-00-00

Unavailable

8

PIPE 3

24X-12483-00-00

Unavailable

9

PIPE 4

24X-12484-00-00

Unavailable

10

BAND

90460-27219-00

Unavailable

11

BAND (MADE IN CANADA)

90460-15227-00

$16.29

12

GROMMET(663)

90480-15064-00

$6.39

13

COLLAR(2UJ)

90387-061V1-00

$6.03

14

BOLT, HEXAGON

97017-06030-00

$2.80

15

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

16

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

17

BOLT(3RV)

97014-06035-00

Unavailable

18

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

19

PIPE 5

24X-12485-00-00

Unavailable

20

PIPE 6

24X-12476-00-00

Unavailable

21

PIPE 7

24X-12477-00-00

Unavailable

22

PIPE 8

1LX-1248A-00-00

Unavailable

23

DAMPER, RADIATOR

24X-12465-00-00

Unavailable

24

JOINT 1

24X-12469-00-00

Unavailable
