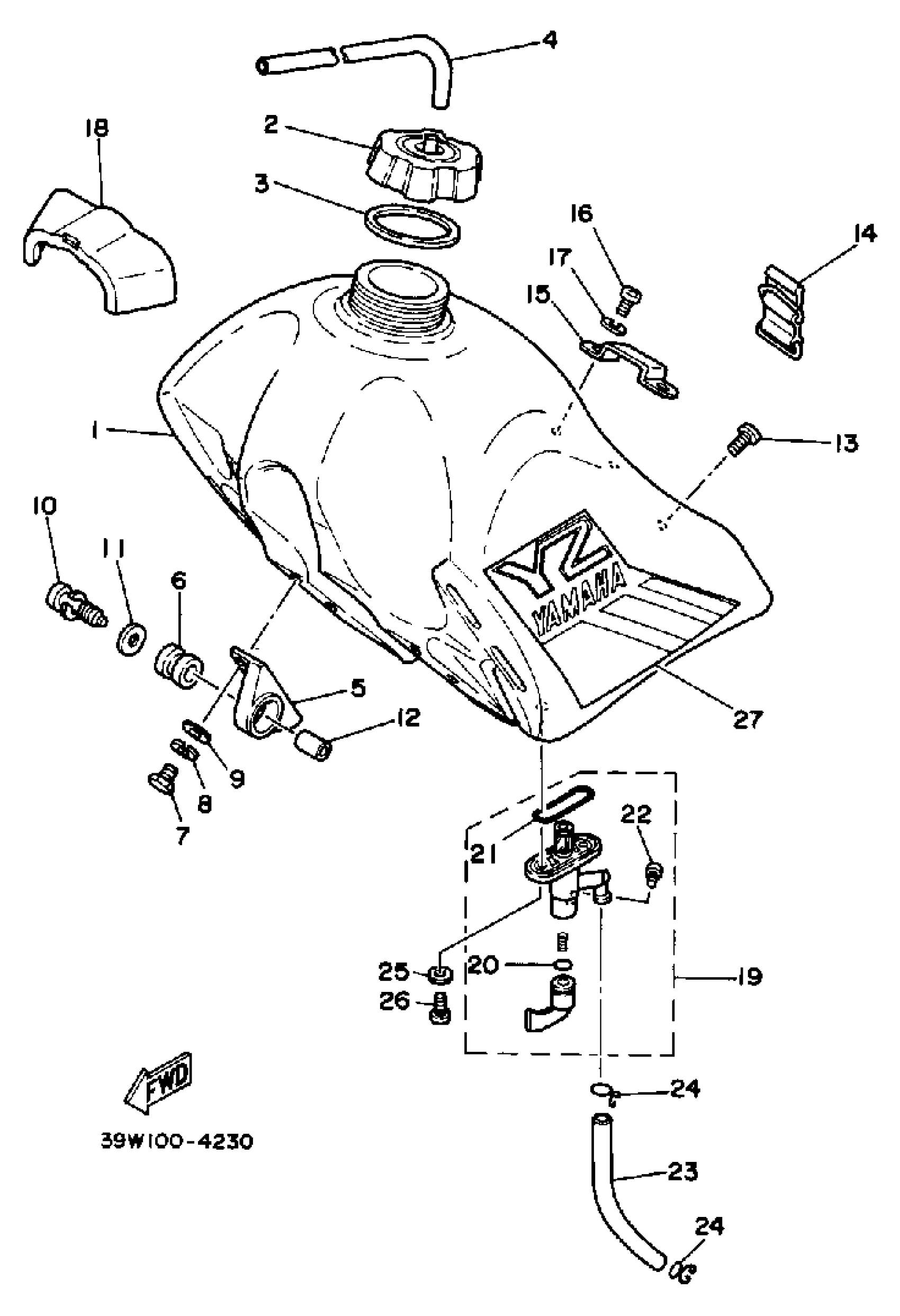

Yamaha YZ125K (YZ125K_L) 1983 FUEL TANK K Diagram

#

Description
Price

1

FUEL TANK

24X-24110-00-00

Unavailable

2

BODY, CAP

5X7-24611-01-00

Unavailable

3

PACKING, CAP

5X7-24612-00-00

Unavailable

4

HOSE (L420)

90445-092K1-00

$12.49

5

HOLDER, DAMPER

5XE-24144-00-00

$23.99

6

GROMMET(4AA)

90480-18549-00

$10.49

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

10

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

11

WASHER, PLATE (J10)

90201-06697-00

$8.49

12

COLLAR (1M1)

90387-06553-00

$9.49

13

SCREW(3JM)

90149-06306-00

$8.49

14

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

15

FUEL COCK ASSY

2K5-24500-00-00

$86.99

16

GASKET, BODY

214-24512-00-00

Unavailable

17

O-RING

1A0-24512-00-00

Unavailable

18

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

19

HOSE (L370)

90445-112E1-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

22

SCREW 256241430000

90149-06011-00

Unavailable

23

DAMPER, LOCATING 1

(24X-24181-00-00)

Unavailable

24

DAMPER, SIDE COVER

26H-21746-00-00

Unavailable

25

GRAPHIC SET

(24X-24250-00-00)

Unavailable
