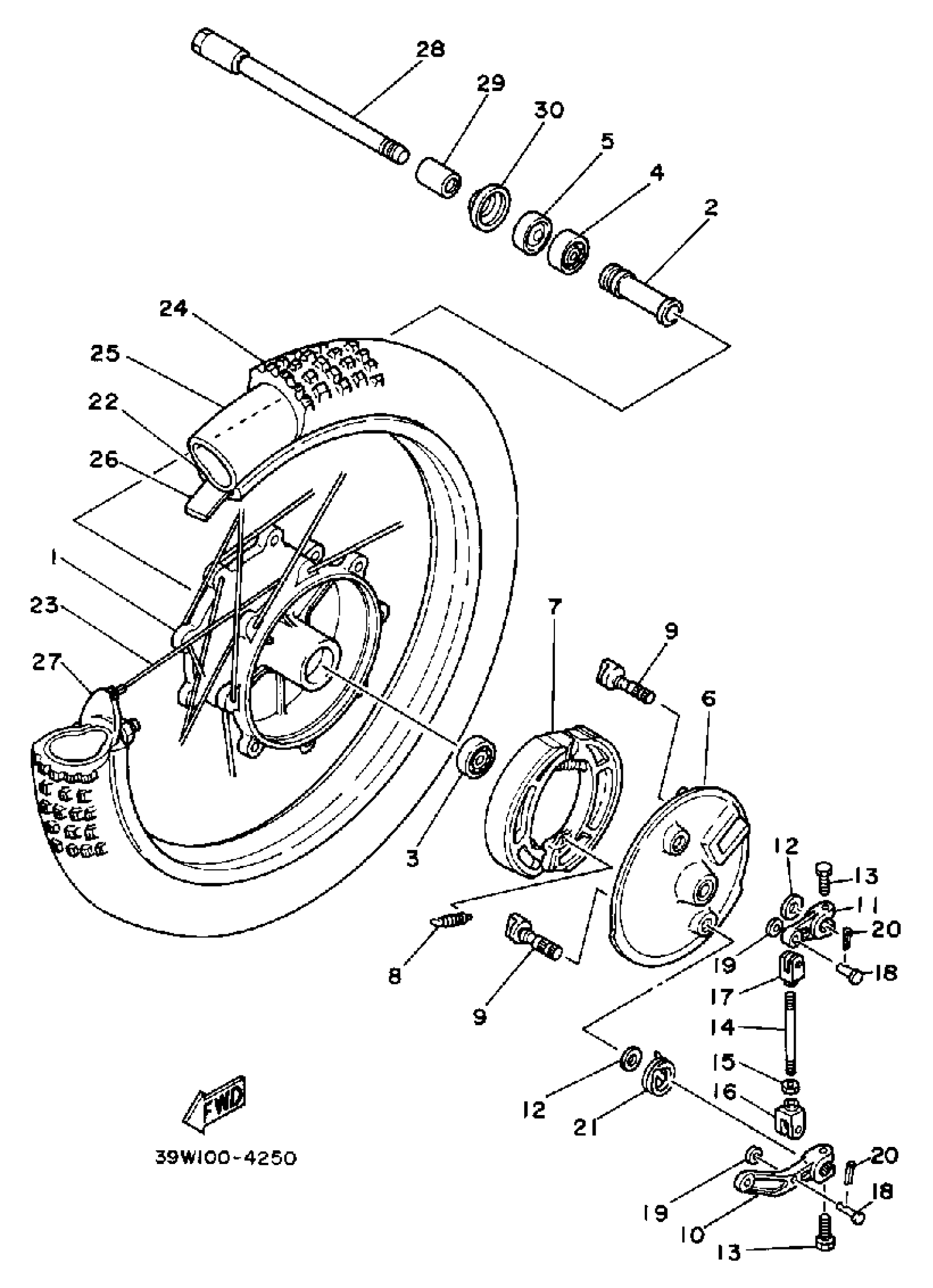

Yamaha YZ125K (YZ125K_L) 1983 FRONT WHEEL L Diagram

HUB, FRONT

38V-25111-00-98

Unavailable

SPACER

90560-15116-00

Unavailable

BEARING(3DL)

93306-20226-00

$38.99

BEARING

93306-20205-00

$38.99

OIL SEAL(38V)

93106-20021-00

$14.99

PLATE, BRAKE SHOE

3R5-25121-01-98

Unavailable

BRAKE SHOE KIT

4V4-W253A-00-00

$29.99

SPRING (5T9)

90506-17328-00

Unavailable

CAMSHAFT

23X-25151-00-00

Unavailable

LEVER, CAMSHAFT

99999-02061-00

Unavailable

LEVER, CAMSHAFT 2

99999-02067-00

Unavailable

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

BOLT, HEXAGON (462)

90101-06291-00

$8.49

ROD, CONNECTING

3R5-25161-00-00

Unavailable

NUT(650)

95380-06700-00

$8.49

END, ROD 1

152-25163-00-00

Unavailable

END, ROD 2

152-25164-00-00

Unavailable

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

PIN, COTTER

91490-20025-00

Unavailable

SPRING, TORSION

90508-20425-00

Unavailable

RIM 1.60X21

94416-21382-00

Unavailable

SPOKE SET, FRONT

39W-25104-00-00

Unavailable

TIRE (80/100-21-4PR)

94108-215H9-00

Unavailable

TUBE 90190-21

94209-21229-00

Unavailable

TUBE

94230-21126-00

Unavailable

BAND, RIM (2A6)

94330-21084-00

Unavailable

BAND, RIM

(94330-21088-00)

Unavailable

SPACER, BEAD

4V5-25194-00-00

Unavailable

AXLE, WHEEL

3R4-25181-01-00

Unavailable

COLLAR (34L)

90387-152J3-00

Unavailable

COVER, HUB DUST

322-25118-00-00

Unavailable
