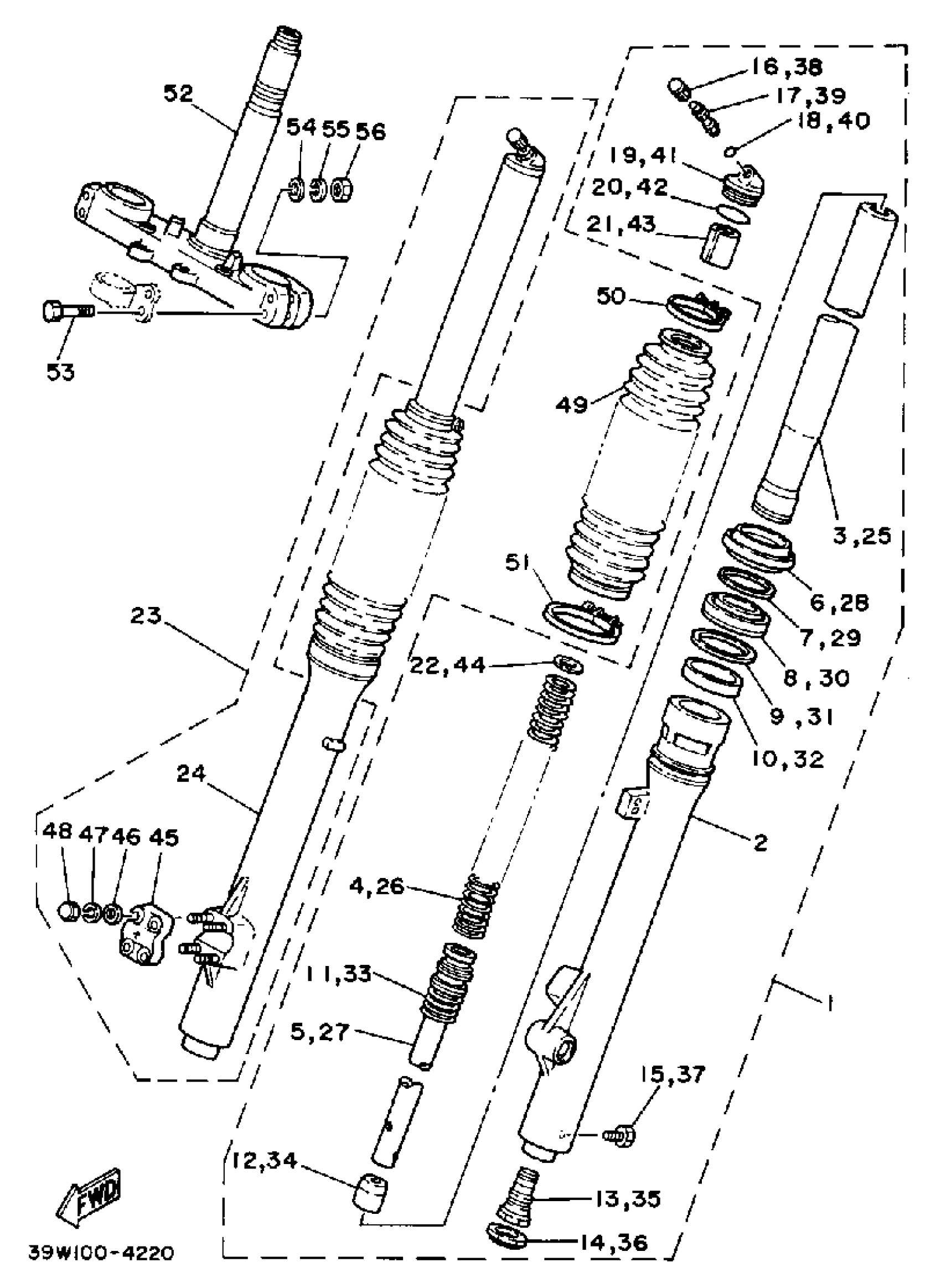

Yamaha YZ125K (YZ125K_L) 1983 FRONT FORK L Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(39W-23102-L0-00)

Unavailable

2

TUBE, OUTER 1

(39W-23126-L0-00)

Unavailable

3

INNER TUBE 1

(39W-23110-L0-00)

Unavailable

4

SPRING, FRONT FORK SOFT

(39W-23141-10-00)

Unavailable

4

SPRING, FRONT FORK HARD

(39W-23141-20-00)

Unavailable

4

SPRING, FRONT FORK

(39W-23141-L0-00)

Unavailable

5

CYLINDER, FRONT FORK

(39W-23170-L0-00)

Unavailable

6

. SEAL, DUST

55Y-23144-L0-00

Unavailable

7

RING, SNAP

34L-23153-00-00

Unavailable

8

OIL SEAL

4NK-23145-00-00

$27.99

9

. WASHER, OIL SEAL

39W-23146-L0-00

Unavailable

10

. METAL, SLIDE 1

39W-23125-L0-00

Unavailable

11

SPRING, REBOUND

(39W-23151-L0-00)

Unavailable

12

SPINDLE, TAPER

(39W-23173-L0-00)

Unavailable

13

. VALVE

39W-2316A-L0-00

Unavailable

14

PLUG

(39W-2312G-L0-00)

Unavailable

15

PLUG, DRAIN

2A6-23119-00-00

Unavailable

16

AIR VALVE

(34L-23190-00-00)

Unavailable

17

. AIR VALVE

5K7-23190-00-00

Unavailable

18

O-RING (26H)

93210-06632-00

Unavailable

19

. BOLT, CAP

39W-23111-L0-00

Unavailable

20

O-RING

4NK-23147-00-00

Unavailable

21

SPACER

(39W-23118-L0-00)

Unavailable

22

SEAT, SPRING UPPER

(39W-23142-L0-00)

Unavailable

23

FRONT FORK ASSEMBLY R

(39W-23103-L0-00)

Unavailable

24

TUBE, OUTER 2

(39W-23136-L0-00)

Unavailable

25

INNER TUBE 1

(39W-23110-L0-00)

Unavailable

26

SPRING, FRONT FORK SOFT

(39W-23141-10-00)

Unavailable

26

SPRING, FRONT FORK HARD

(39W-23141-20-00)

Unavailable

26

SPRING, FRONT FORK

(39W-23141-L0-00)

Unavailable

27

CYLINDER, FRONT FORK

(39W-23170-L0-00)

Unavailable

28

. SEAL, DUST

55Y-23144-L0-00

Unavailable

29

RING, SNAP

34L-23153-00-00

Unavailable

30

OIL SEAL

4NK-23145-00-00

$27.99

31

. WASHER, OIL SEAL

39W-23146-L0-00

Unavailable

32

. METAL, SLIDE 1

39W-23125-L0-00

Unavailable

33

SPRING, REBOUND

(39W-23151-L0-00)

Unavailable

34

SPINDLE, TAPER

(39W-23173-L0-00)

Unavailable

35

. VALVE

39W-2316A-L0-00

Unavailable

36

PLUG

(39W-2312G-L0-00)

Unavailable

37

PLUG, DRAIN

2A6-23119-00-00

Unavailable

38

AIR VALVE

(34L-23190-00-00)

Unavailable

39

. AIR VALVE

5K7-23190-00-00

Unavailable

40

O-RING (26H)

93210-06632-00

Unavailable

41

. BOLT, CAP

39W-23111-L0-00

Unavailable

42

O-RING

4NK-23147-00-00

Unavailable

43

SPACER

(39W-23118-L0-00)

Unavailable

44

SEAT, SPRING UPPER

(39W-23142-L0-00)

Unavailable

45

. HOLDER, AXLE

39W-23167-L0-00

Unavailable

46

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

47

WASHER, SPRING

92995-06100-00

Unavailable

48

NUT (J17)

95380-06800-00

Unavailable

49

BOOT, FRONT FORK

39W-23191-L0-00

Unavailable

50

BAND

39W-23192-L0-00

Unavailable

51

BAND

3RW-23192-00-00

Unavailable

52

UNDER BRACKET COMP

(39W-23440-L0-00)

Unavailable

53

BOLT

97014-08040-00

Unavailable

54

.. WASHER, PLATE

92990-08600-00

Unavailable

55

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

56

NUT(6L2)

95333-08600-00

Unavailable
