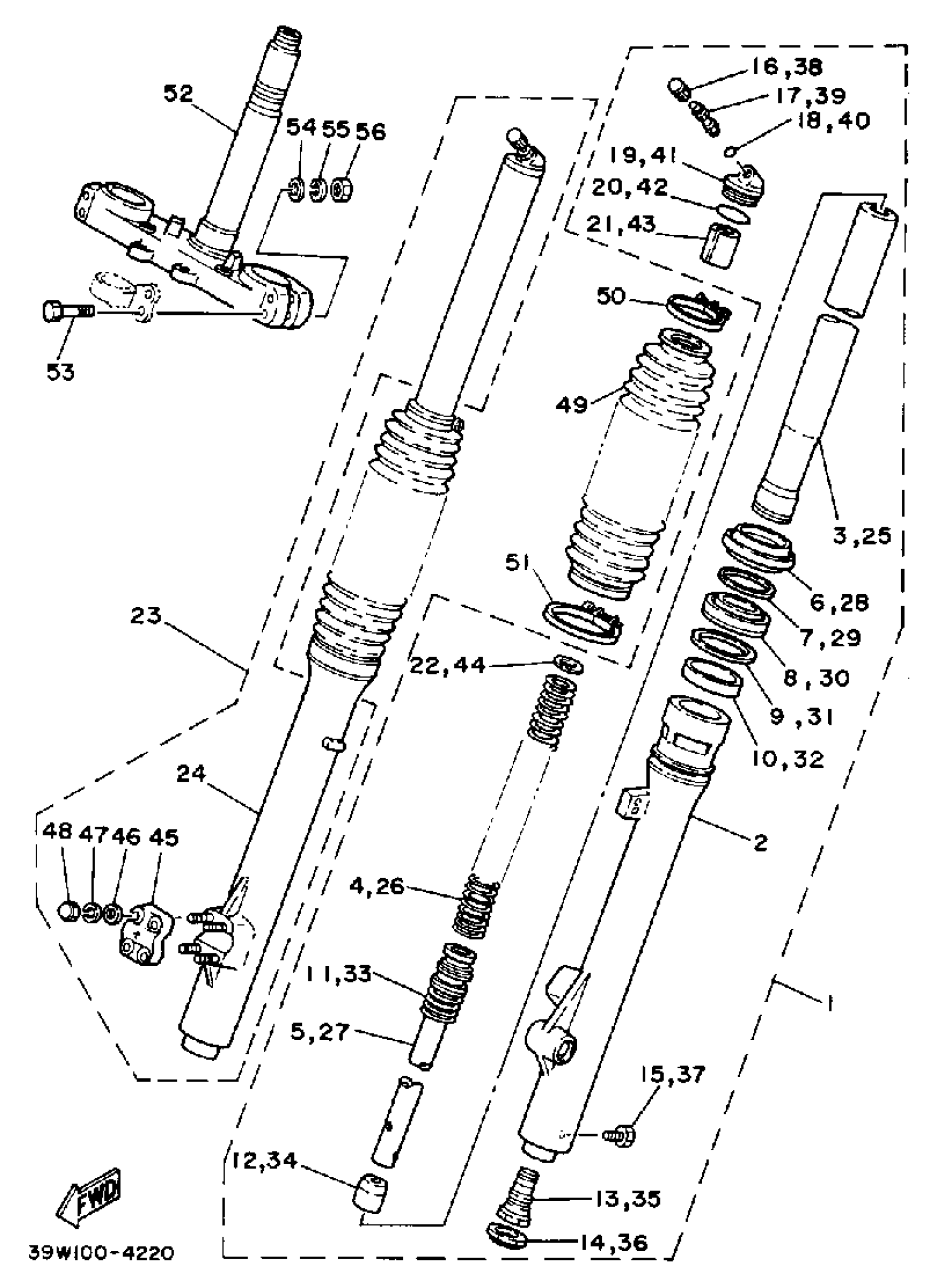

Yamaha YZ125K (YZ125K_L) 1983 FRONT FORK K Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(24X-23102-L0-00)

Unavailable

2

TUBE, OUTER 1

(24X-23126-L0-00)

Unavailable

3

METAL, SLIDE 1

2YK-23125-00-00

$43.99

4

OIL SEAL

3EN-23145-00-00

$25.99

5

WASHER

4V2-23146-L0-00

$29.99

6

RING, SNAP

3R4-23153-00-00

$8.99

7

.. SEAL, DUST

3R4-23144-00-00

Unavailable

8

.. COVER, DUST SEAL

3R4-23148-00-00

Unavailable

9

. INNER TUBE 1 COMP 1

24X-23110-L0-00

Unavailable

10

.. PISTON, FRONT FORK

4V2-23171-L0-00

Unavailable

11

SPINDLE, TAPER

(24X-23173-L0-00)

Unavailable

12

O-RING

1W4-23114-L0-00

$7.99

13

CYLINDER, FRONT FORK

(24X-23170-L0-00)

Unavailable

14

SPRING, REBOUND

(1W4-23151-L0-00)

Unavailable

15

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

Unavailable

16

SPRING, FRONT FORK HARD (K=0.28)

24X-23141-20-00

Unavailable

16

. SPRING, FRONT FORK (K=25)

24X-23141-L0-00

Unavailable

16

SPRING, FRONT FORK SOFT

(24X-23141-M0-00)

Unavailable

17

. SEAT, SPRING UPPER

1W4-23142-L0-00

Unavailable

18

SPACER

(16E-23118-00-00)

Unavailable

18

. SPACER

24X-23118-L0-00

Unavailable

19

. BOOT, FRONT FORK

5X8-23191-L1-00

Unavailable

20

. BAND

1W4-23192-L0-00

Unavailable

21

. BAND

5X8-23489-L1-00

Unavailable

22

SCREW, PAN HEAD

98517-04020-00

Unavailable

23

. BOLT, CAP

24X-23111-L0-00

Unavailable

24

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

25

O-RING

3J2-23147-00-00

Unavailable

26

. GASKET

24X-23158-L0-00

Unavailable

27

. VALVE COMP

23X-2316A-L0-00

Unavailable

28

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

29

SCREW, PAN HEAD

98507-04018-00

Unavailable

30

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

31

FRONT FORK ASSEMBLY R

(24X-23103-L0-00)

Unavailable

32

TUBE, OUTER 2

(24X-23136-L0-00)

Unavailable

33

METAL, SLIDE 1

2YK-23125-00-00

$43.99

34

OIL SEAL

3EN-23145-00-00

$25.99

35

WASHER

4V2-23146-L0-00

$29.99

36

RING, SNAP

3R4-23153-00-00

$8.99

37

.. SEAL, DUST

3R4-23144-00-00

Unavailable

38

.. COVER, DUST SEAL

3R4-23148-00-00

Unavailable

39

. INNER TUBE 1 COMP 1

24X-23110-L0-00

Unavailable

40

.. PISTON, FRONT FORK

4V2-23171-L0-00

Unavailable

41

SPINDLE, TAPER

(24X-23173-L0-00)

Unavailable

42

O-RING

1W4-23114-L0-00

$7.99

43

CYLINDER, FRONT FORK

(24X-23170-L0-00)

Unavailable

44

SPRING, REBOUND

(1W4-23151-L0-00)

Unavailable

45

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

Unavailable

46

SPRING, FRONT FORK HARD (K=0.28)

24X-23141-20-00

Unavailable

46

. SPRING, FRONT FORK (K=25)

24X-23141-L0-00

Unavailable

46

SPRING, FRONT FORK SOFT

(24X-23141-M0-00)

Unavailable

47

. SEAT, SPRING UPPER

1W4-23142-L0-00

Unavailable

48

. SPACER

24X-23118-L0-00

Unavailable

50

. BAND

1W4-23192-L0-00

Unavailable

51

. BAND

5X8-23489-L1-00

Unavailable

52

SCREW, PAN HEAD

98517-04020-00

Unavailable

53

. BOLT, CAP

24X-23111-L0-00

Unavailable

54

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

55

O-RING

3J2-23147-00-00

Unavailable

56

. GASKET

24X-23158-L0-00

Unavailable

57

. VALVE COMP

23X-2316A-L0-00

Unavailable

58

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

59

SCREW, PAN HEAD

98507-04018-00

Unavailable

60

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

61

HOLDER, AXLE

4V2-23167-L0-00

Unavailable

62

NUT(6TA)

95317-06600-00

Unavailable

63

WASHER, SPRING

92995-06100-00

Unavailable

64

UNDER BRACKET

(24X-23340-L0-39)

Unavailable

65

BOLT (1E6)

90101-08340-00

Unavailable

66

.. WASHER, PLATE

92990-08600-00

Unavailable

67

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

68

NUT(6L2)

95333-08600-00

Unavailable
