Description

Price

1

FENDER, FRONT

5X6-21511-01-00

$43.99

2

WASHER, PLATE

90201-06020-00

$9.49

3

WASHER (3R8)

90209-06187-00

$8.49

4

BOLT(3DM)

97024-06020-00

$8.49

5

WASHER(6TA)

92907-06700-00

$1.86

6

FENDER, REAR

3R3-21611-01-00

Unavailable

7

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER(6TA)

92907-06700-00

$1.86

10

PLATE 1

4V2-21543-01-00

Unavailable

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLATE

90201-06M08-00

Unavailable

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

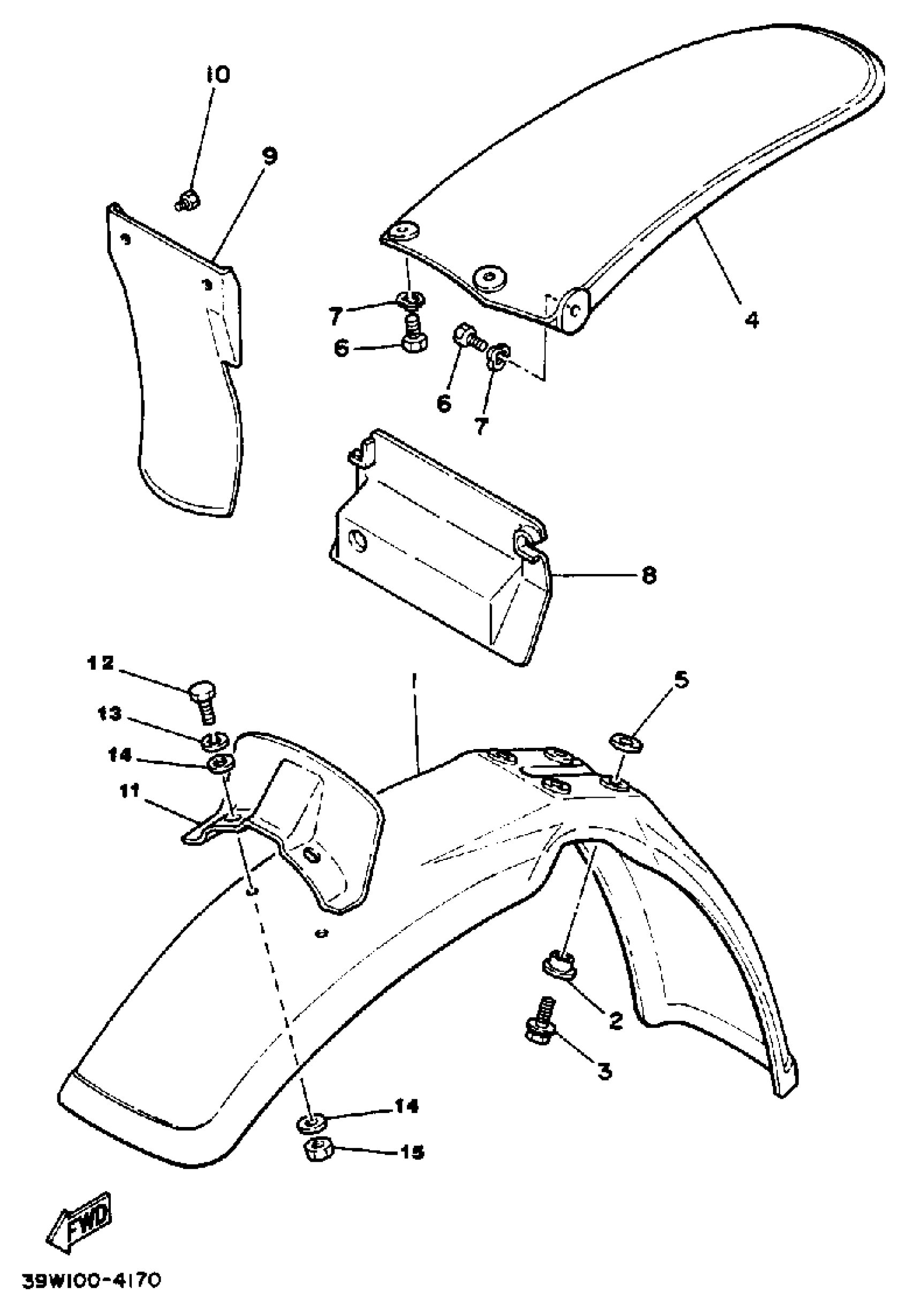

Yamaha YZ125K (YZ125K_L) 1983 FENDER Diagram

FENDER, FRONT

WASHER, PLATE

WASHER (3R8)

BOLT(3DM)

WASHER(6TA)

FENDER, REAR

WASHER, PLATE (583 REAR FENDER

BOLT, HEXAGON DEEP RECESS

WASHER(6TA)

PLATE 1

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE

NUT, SELF-LOCKING
