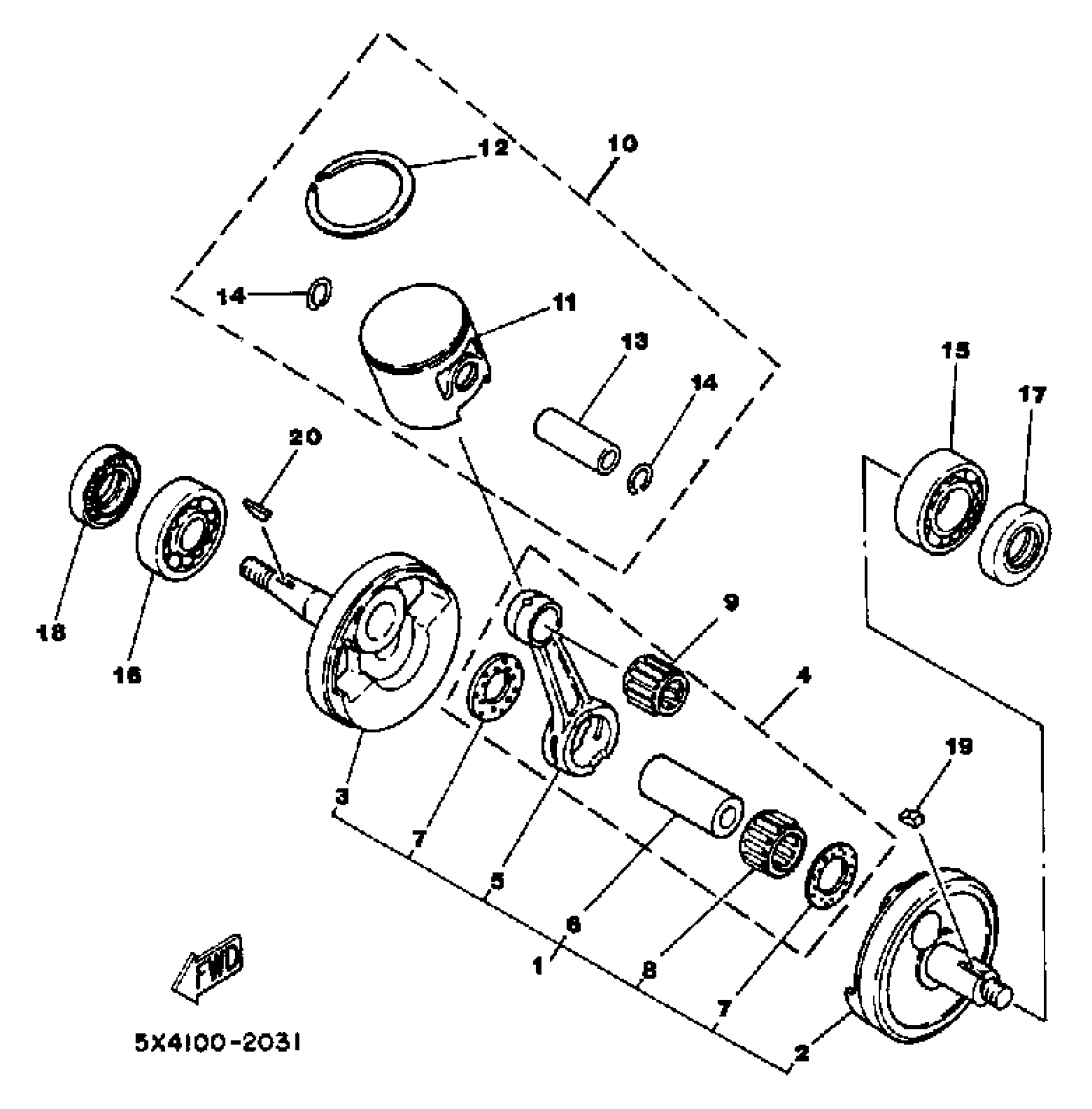

Yamaha YZ125K (YZ125K_L) 1983 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

24X-11400-00-00

Unavailable

2

. CRANK 1

24X-11412-00-00

Unavailable

3

. CRANK 2

5X4-11422-00-00

Unavailable

4

. CONNECTING ROD ASSEMBLY

5X4-11650-01-00

Unavailable

5

.. ROD, CONNECTING

5X4-11651-01-00

Unavailable

6

PIN, CRANK 1

3M5-11681-00-00

$24.99

7

WASHER (29L)

90209-22248-00

Unavailable

8

BEARING (5X4)

93310-522L3-00

$73.99

9

BEARING, NEEDLE (24X)

93310-216L2-00

$33.99

10

PISTON KIT STD (STD)

24X-11630-00-00

Unavailable

10

PISTON KIT STD (STD)

39W-11630-00-00

Unavailable

11

PISTON KIT 1ST (1ST O/S)

24X-11630-10-00

Unavailable

11

PISTON KIT 2ND (2ND O/S)

24X-11630-20-00

Unavailable

11

PISTON KIT 3RD (3RD O/S)

24X-11630-30-00

Unavailable

11

PISTON KIT 4TH (4TH O/S)

24X-11630-40-00

Unavailable

11

. PISTON STD

55Y-11631-00-94

Unavailable

11

. PISTON 1ST OS

55Y-11635-00-00

Unavailable

11

. PISTON 2 O/S 050

55Y-11636-00-00

Unavailable

11

. PISTON 3 O/S 075

55Y-11637-00-00

Unavailable

11

PISTON 4 O/S 1.001.00MM)

24X-11638-00-00

Unavailable

11

PISTON KIT 1ST (1ST O/S)

39W-11630-11-00

Unavailable

11

PISTON KIT 3RD (39W-11630-30) (125L)

39W-11630-31-00

Unavailable

11

PISTON KIT 4TH (39W-11630-40) (125L)

39W-11630-41-00

Unavailable

11

. PISTON STD (39W-11631-00-95) (L)

39W-11631-01-94

Unavailable

11

PISTON 1 O/S 0.25 (39W-11635-00) (125L)

39W-11635-01-00

Unavailable

11

PISTON 2 O/S 0.500.50MM)

39W-11636-01-00

Unavailable

11

PISTON 3 O/S 0.750.75MM)

39W-11637-01-00

Unavailable

12

PISTON KIT 2ND (39W-11630-20) (125L)

39W-11630-21-00

Unavailable

12

PISTON 4 O/S 1.001.00MM)

39W-11638-01-00

Unavailable

12

RING, PISTON

5X4-11611-02-00

Unavailable

12

RING, PISTON 1ST

5X4-11611-11-00

Unavailable

12

RING, PISTON 2ND

5X4-11611-21-00

Unavailable

12

RING, PISTON 3RD

5X4-11611-31-00

Unavailable

12

RING, PISTON 4TH (4TH O/S)

5X4-11611-40-00

Unavailable

13

PIN, PISTON

137-11633-10-00

Unavailable

14

CIRCLIP(1AR)

93450-17129-00

Unavailable

15

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

16

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

17

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

18

OIL SEAL, SD-TYPE

93102-25258-00

Unavailable

19

KEY, STRAIGHT

90282-05053-00

Unavailable

20

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
