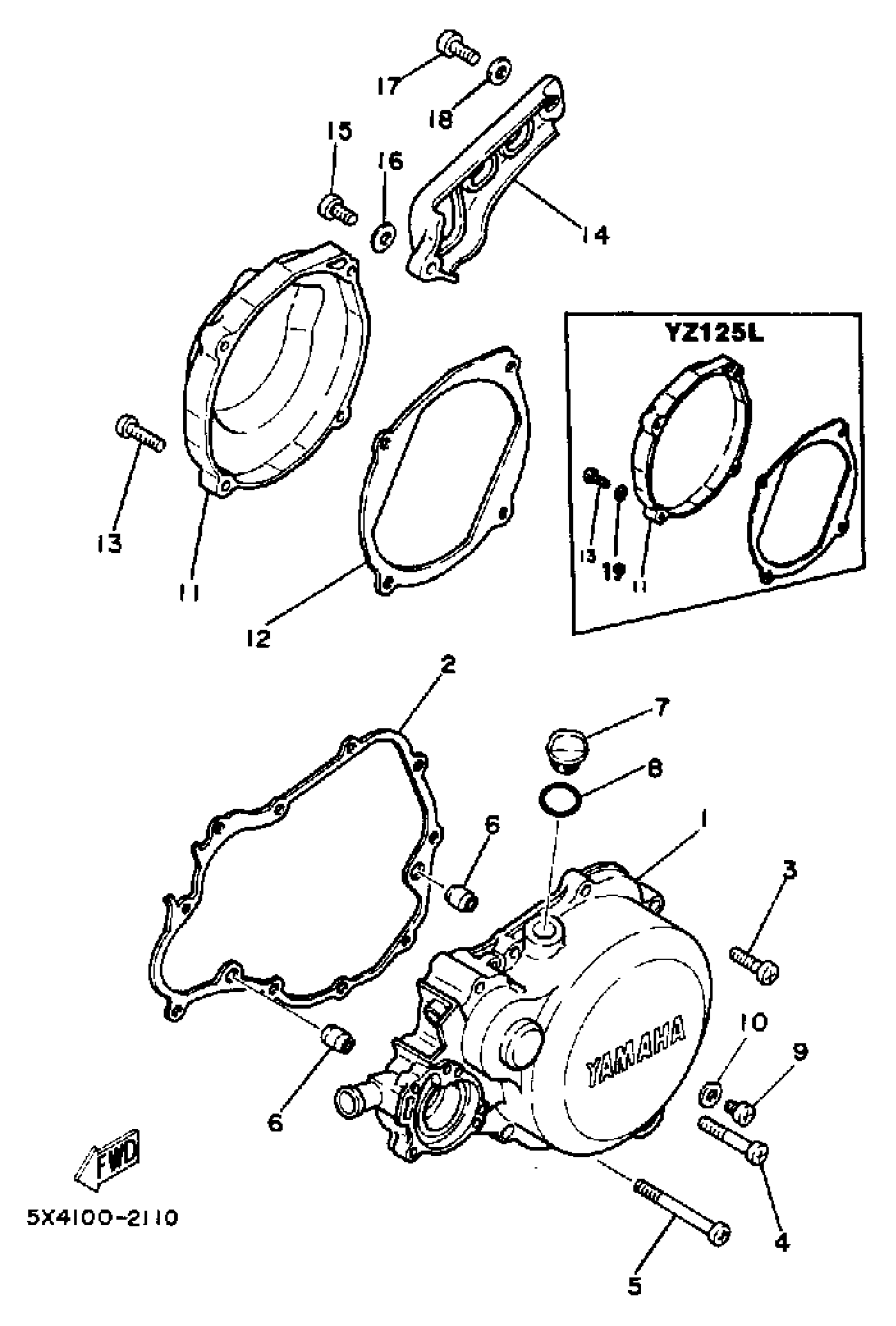

Yamaha YZ125K (YZ125K_L) 1983 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

24X-15411-00-00

Unavailable

2

GASKET,CRCS COVER

5X4-15451-01-00

Unavailable

3

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

4

SCREW, PAN

98507-06045-00

$3.14

5

SCREW, PAN

98507-06055-00

$8.49

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

8

O-RING (26H)

93210-14579-00

$7.49

9

SCREW, PAN

98517-06008-00

$8.49

10

GASKET 838153840000

90430-06016-00

$8.49

11

COVER, CRANKCASE R

5X4-15421-00-00

Unavailable

12

GASKET 1

5X4-15455-01-00

Unavailable

13

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

14

COVER, CRANKCASE 3

55Y-15431-00-00

Unavailable

15

SCREW, PAN

98507-06014-00

$8.49

16

WASHER, PLATE

90201-06380-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable
