Description

Price

1

CRANKCASE 1

24X-15111-00-00

Unavailable

2

SEAL, CRANKCASE

5X4-15379-01-00

Unavailable

3

CRANKCASE 2

24X-15121-00-00

Unavailable

4

COLLAR

90387-16781-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

BOLT,SOCKET

91317-06035-00

Unavailable

7

BOLT,SOCKET

91317-06040-00

$3.76

8

BOLT,SOCKET

91317-06050-00

$3.88

9

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

10

HOSE (L340)

90445-08684-00

$4.29

11

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

12

GASKET (3JD1)

90430-12207-00

$7.99

13

HOLDER

3R3-15128-01-00

Unavailable

14

SCREW, PAN

98507-08010-00

$8.49

15

HOLDER

4V4-15118-00-00

$29.99

16

SCREW PAN HEAD

98580-06010-00

Unavailable

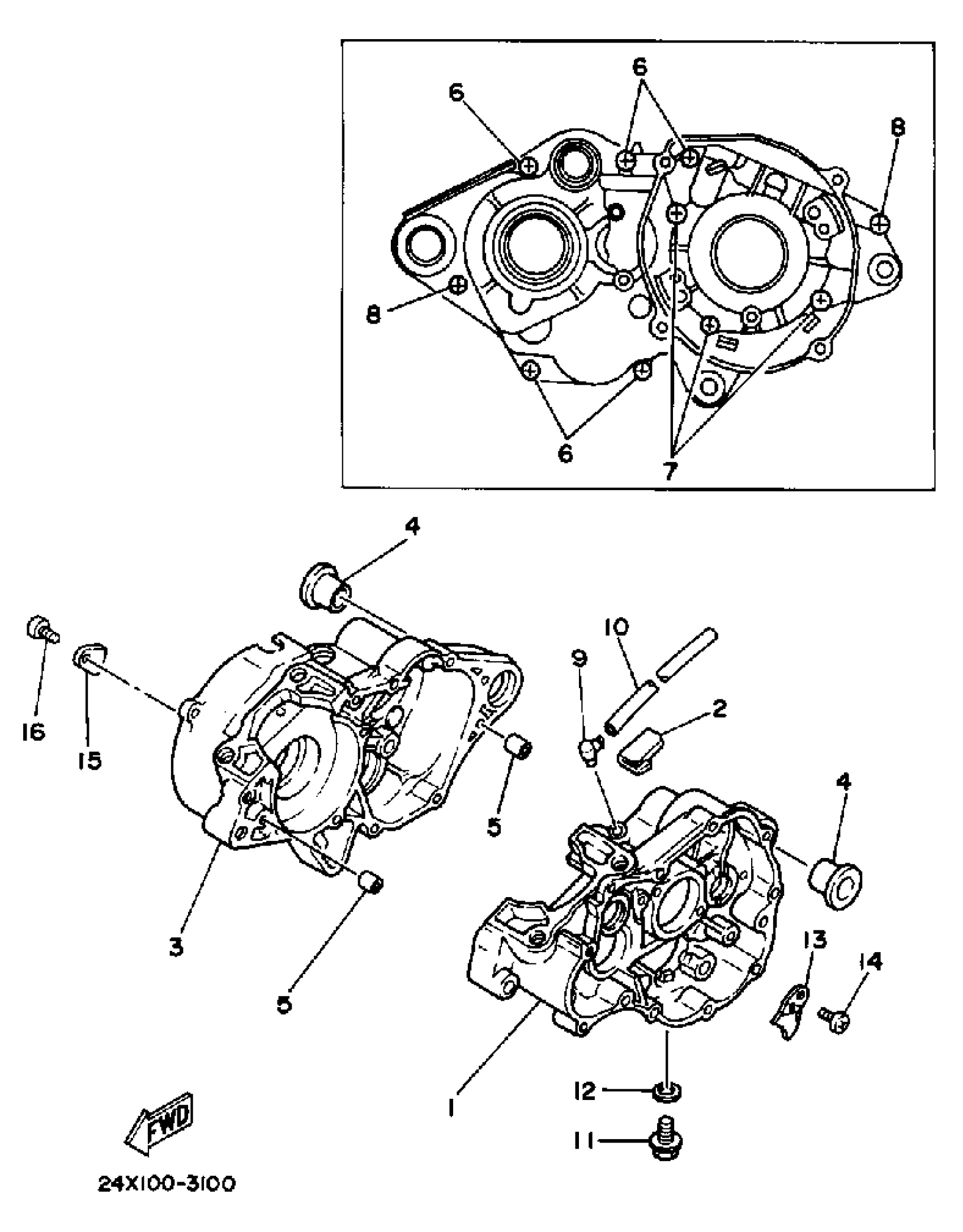

Yamaha YZ125K (YZ125K_L) 1983 CRANKCASE Diagram

CRANKCASE 1

SEAL, CRANKCASE

CRANKCASE 2

COLLAR

PIN, DOWEL(3VD)

BOLT,SOCKET

BOLT,SOCKET

BOLT,SOCKET

CONNECTOR, SUCTION PIPE

HOSE (L340)

PLUG, STRAIGHT SCREW (22F)

GASKET (3JD1)

HOLDER

SCREW, PAN

HOLDER

SCREW PAN HEAD
