AIR CLEANER K

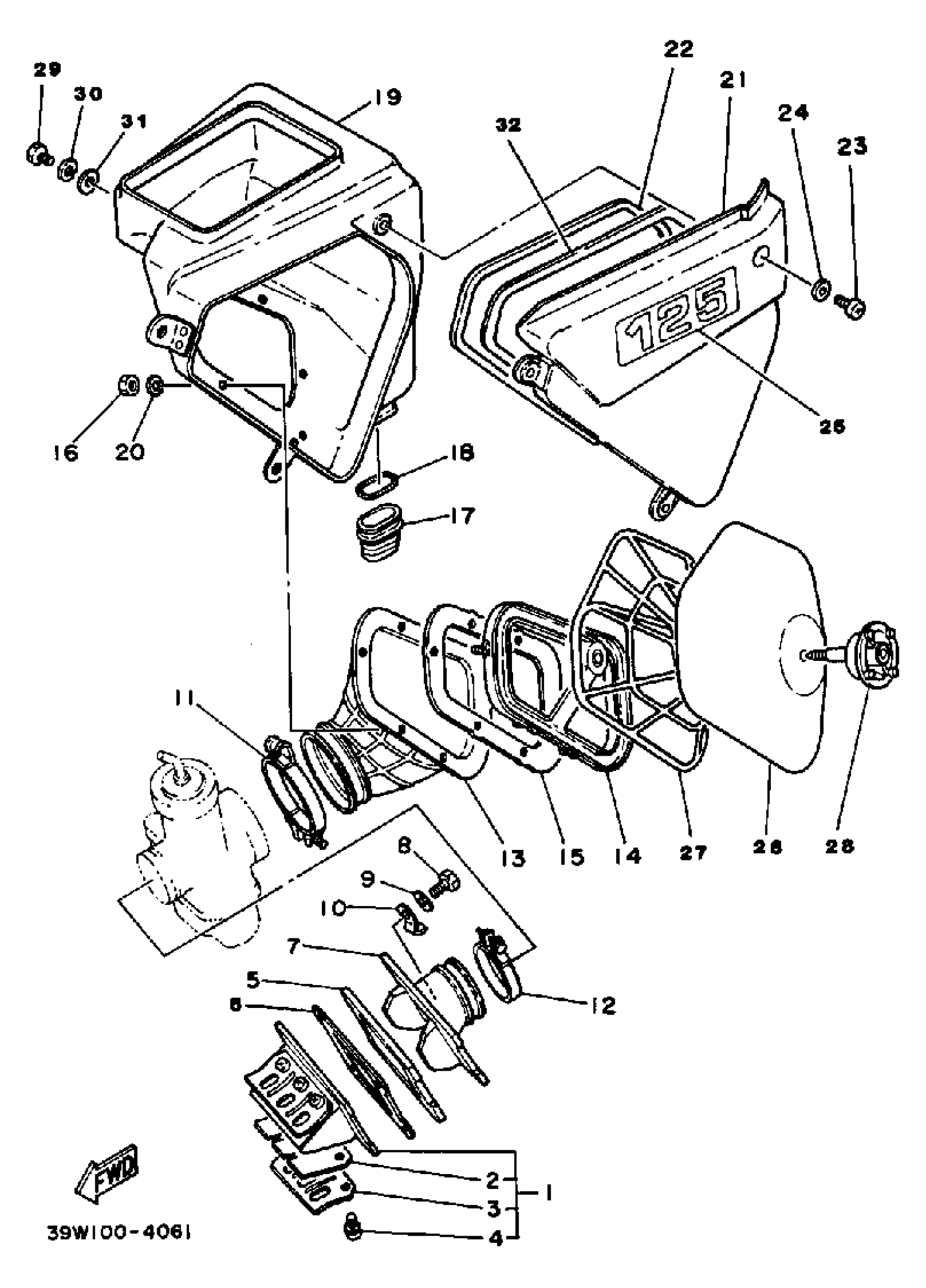

Yamaha YZ125K (YZ125K_L) 1983 AIR CLEANER K Diagram
#
1
REED VALVE ASSEMBLY
39W-13610-00-00
Unavailable
2
. REED, VALVE
3R3-13613-00-00
Unavailable
3
. STOPPER, REED VALVE
39W-13616-00-00
Unavailable
6
JOINT, CARBURETOR
24X-13565-00-00
Unavailable
9
CLAMP 363154850100
90462-05005-00
Unavailable
12
JOINT, AIR CLNR 1
(24X-14453-00-00)
Unavailable
13
HOLDER, GUIDE
23X-14459-01-00
Unavailable
14
SEAL
23X-14462-00-00
Unavailable
16
SEAL
22W-14457-00-00
Unavailable
17
SPRING, COMPRESSION
90504-03033-00
Unavailable
18
CASE, AIR CLEANER 1
(24X-14411-00-00)
Unavailable
19
ELEMENT, AIR CLEANER
23X-W1442-00-00
Unavailable
20
GUIDE, ELEMENT
23X-14458-00-00
Unavailable
21
. WASHER, PLAIN
92990-05200-00
Unavailable
22
GUARD, FLAP
24X-21642-00-00
Unavailable
23
RIVET, BLIND
(90267-40093-00)
Unavailable
24
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
25
STAY 1
(24X-14493-00-00)
Unavailable
26
RIVET, BLIND
(90267-40093-00)
Unavailable
27
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
28
DAMPER 1
(24X-14425-00-00)
Unavailable
29
DAMPER 2
(24X-14426-00-00)
Unavailable
30
DAMPER 3
(24X-1442G-00-00)
Unavailable
31
CAP, CLEANER CASE 1
(24X-14412-00-00)
Unavailable
32
RIVET, BLIND
(90267-40093-00)
Unavailable
33
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
34
WASHER, PLATE
90201-04027-00
Unavailable
35
PLATE, ELEMENT FTTTING (4V2-14468-01)
4V2-14468-02-00
Unavailable
36
BOLT (661)
97013-06012-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
