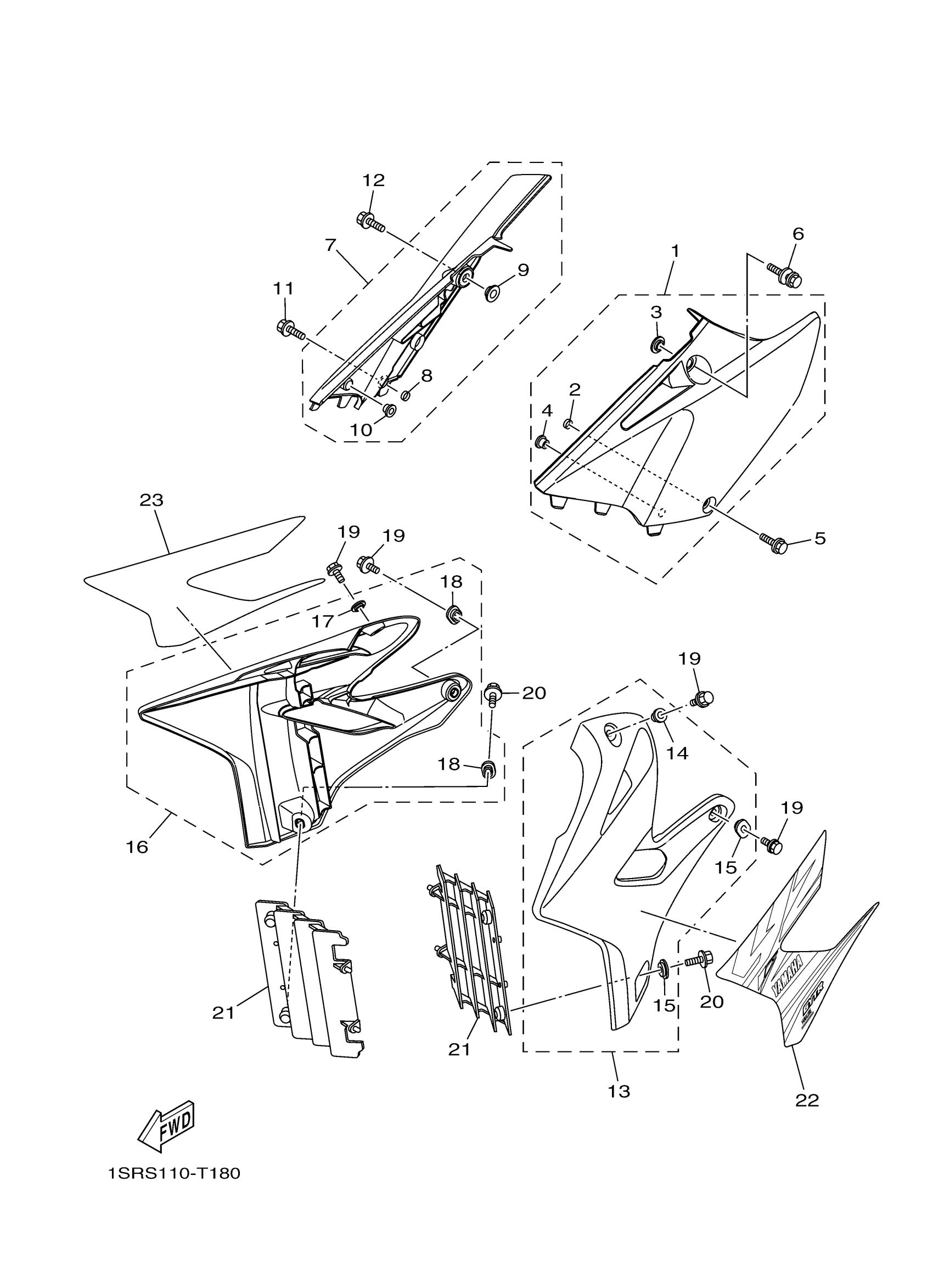

Yamaha YZ125J2 (YZ125) 1SRS 2018 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

1SS-21710-00-00

$21.99

2

COLLAR(2NL)

90387-060U2-00

$9.49

3

COLLAR

5BE-21749-00-00

$6.99

4

GROMMET (397)

90480-10068-00

$8.49

5

BOLT

90109-06304-00

$1.07

6

BOLT, WITH WASHER

90119-08095-00

$8.49

7

SIDE COVER ASSY 2

1SS-21720-00-00

$27.99

8

COLLAR(2NL)

90387-060U2-00

$9.49

9

COLLAR

5BE-21749-00-00

$6.99

10

GROMMET (397)

90480-10068-00

$8.49

11

BOLT

90109-06304-00

$1.07

12

BOLT, WITH WASHER

90119-08095-00

$8.49

13

SIDE COVER ASSY 3

1SS-21730-00-00

$32.99

14

COLLAR

90387-06009-00

$10.49

15

COLLAR

5TA-21749-00-00

$11.99

16

SIDE COVER ASSY 4

1SS-21740-00-00

Unavailable

17

COLLAR

90387-06009-00

$10.49

18

COLLAR

5TA-21749-00-00

$11.99

19

BOLT, FLANGE

90105-06064-00

Unavailable

20

SCREW, WITH WASHER

90159-06021-00

Unavailable

21

PANEL 1

5NL-2172A-20-00

Unavailable

22

GRAPHIC 1

1SS-2173E-60-00

Unavailable

23

GRAPHIC 2

1SS-2173F-60-00

Unavailable
