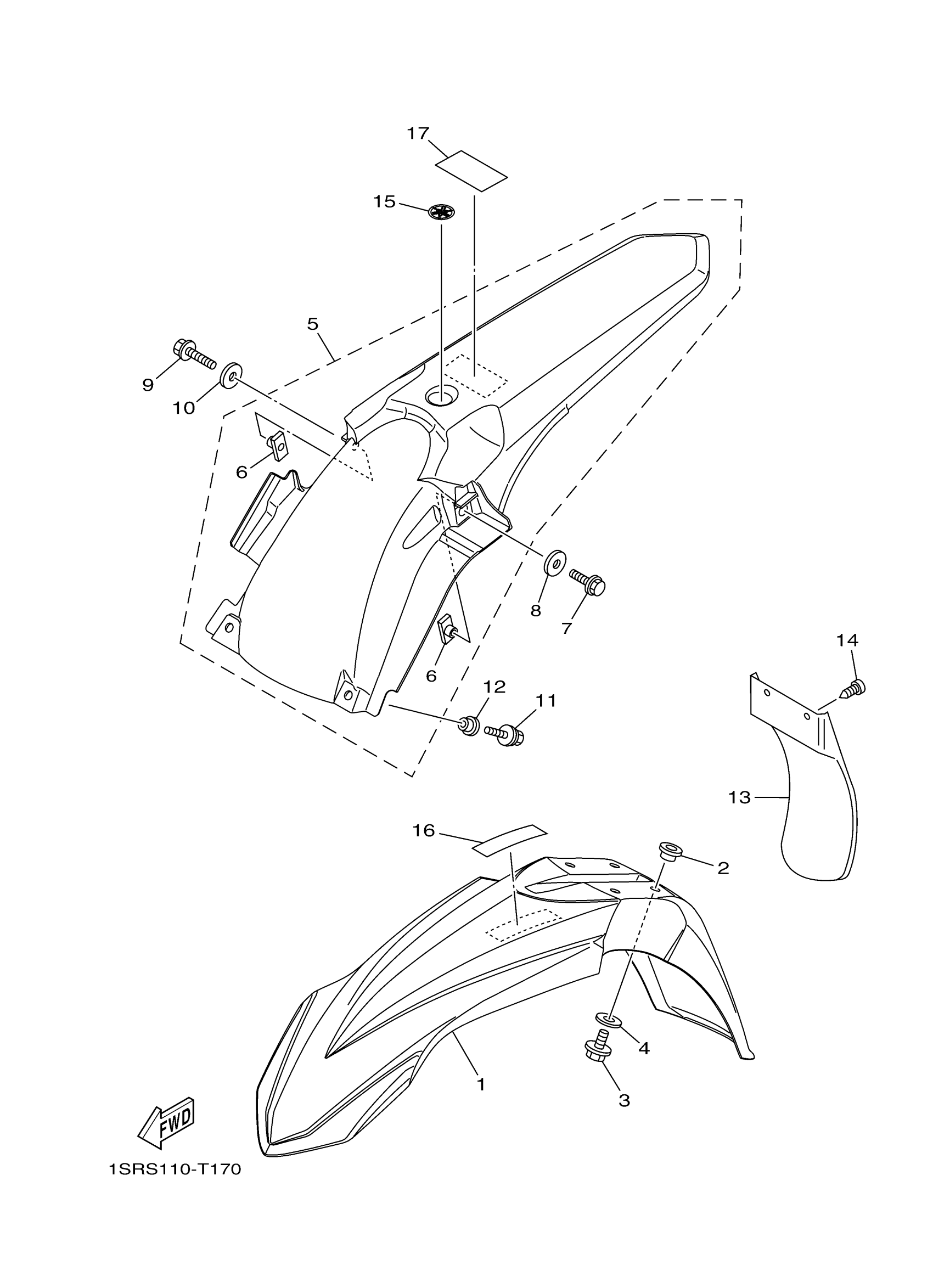

Yamaha YZ125J2 (YZ125) 1SRS 2018 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

17D-21511-50-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, FLANGE

90105-06127-00

$8.49

4

WASHER, PLATE

90201-06108-00

$4.61

5

REAR FENDER COMP.

1SS-21610-00-00

$39.99

6

NUT, REAR FENDER

5XE-21635-10-00

$13.49

7

BOLT, FLANGE

90105-06100-00

$7.49

8

WASHER, PLATE

90201-06032-00

$8.49

9

BOLT, FLANGE

90105-06102-00

$3.50

10

WASHER, PLATE

90201-06033-00

$2.97

11

BOLT, WITH WASHER

90119-06149-00

$8.49

12

COLLAR

90387-06009-00

$10.49

13

GUARD, FLAP

5TA-21642-00-00

$39.99

14

SCREW, TAPPING

97702-60016-00

$2.19

15

TUNING FORK MARK

5FK-2175C-31-00

$5.49

16

LABEL, CAUTION

3XJ-2415E-A1-00

Unavailable

17

LABEL, CAUTION

5PA-2118K-01-00

Unavailable
